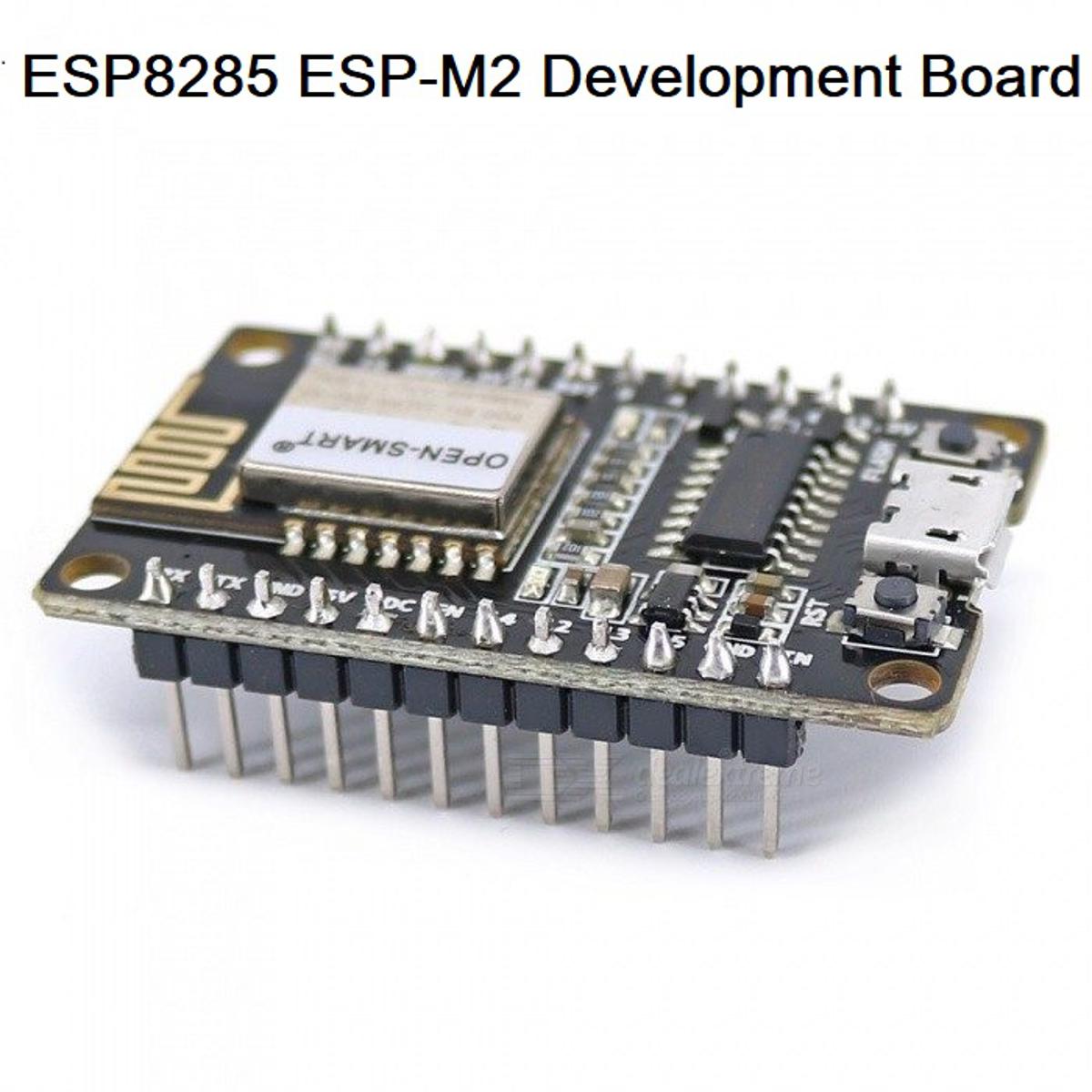

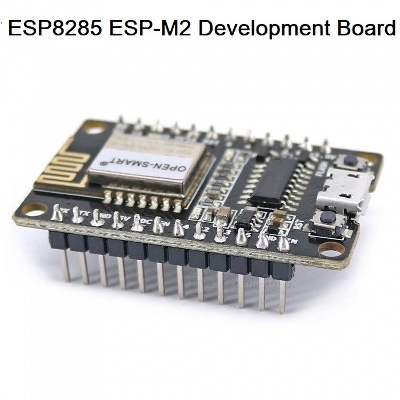

Description: ESP8285 ESP-M2 Development Board

ESP8285 ESP-M2 CH340 Development Board WIFI Serial Port Module CH340 Compatible

The following are the few advantages for NodeMCU that is based on ESP-M2 and that is 2.4G wifi development Board:

• ESP8285 is equivalent to ESP8266 + 1M Bytes flash
• Compatible with official version Nodemcu board
• It makes you easier and faster to complete the project of Wifi remote home appliances
• Wireless upload program available
• It is built based on the mature and popular ESP8285 technology. You can take advantage the abundant resources available on the web.
• It has built-in USB-TTL serial with super reliable industrial strength CH340 for superior stability on all supported platforms.
• Antenna Type: Built-in PCB antenna is available.
• Wireless Network Mode: station / softAP / SoftAP + station.
• Wireless criteria: 802.11 b / g / n.
• WIFI @ 2.4 GHz, support for WPA / WPA2 security mode.
• Working voltage: 3.3V
• IO logic level: 3.3V
• Micro USB socket input current: 500mA(MAX)
• ADC pin (A0) input voltage: 0-3.3V
• Built-in Flash capacity: 1M Bytes
• Clock frequency: 80MHz or 160MHz

Features:

• Fully compatible with ESP8266, the source can be used to transplant.
• Built-in Tensilica L106 ultra-low power 32-bit microprocessor, clocked at 80MHz and 160MHz support RTOS.
• Built-in TCP / IP protocol stack.
• Built-in 1-channel 10-bit high-precision ADC.
• Peripheral Interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO.
• The deep sleep hold current is 10uA and the shutdown current is less than 5uA.
• Wake up within 2 ms, connect and pass the packet.
• Standby power consumption less than 1.0mW (DTIM3).
• Built-in 1M bytes of SPI Flash .
• Supports 802.11 b / g / n / e / i.
• Support Station, SoftAP, SoftAP + STA mode.
• Support for Wi-Fi Direct (P2P).
• Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC hardware acceleration.
• P2P discovery, P2P GO mode / GC mode and P2P power management.
• WPA / PA2 PSK and WPS.
• 802.11 i security features: pre-authentication and TSN.
• Hold 802.11n (2.4 GHz).
• 802.1h / RFC1042 frame encapsulation.
• Seamless roaming support.
• Support AT remote upgrade and cloud OTA upgrade.
• Support for Smart Config features (including Android and iOS devices).
• Operating temperature range: -40 ℃ -125 ℃.

Applications:

• Smart Car, Home automation, Sensor networks, Industrial wireless control

Package Include:

• 1 x ESP8285 ESP-M2 Development Board
