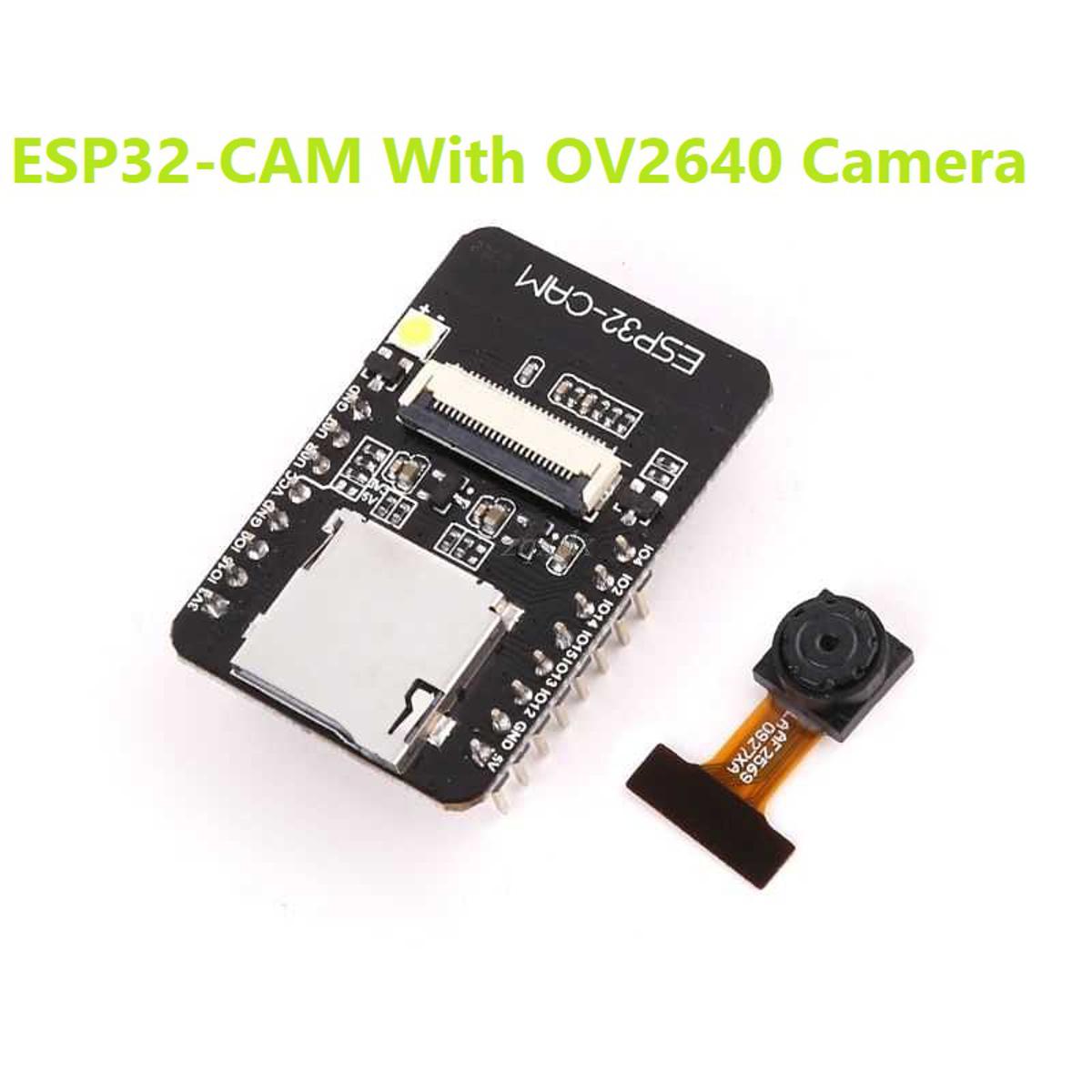

Connect to a camera via WiFi with the ESP32 CAM! This microcontroller allows you to work on cool projects such as a video streaming web server, surveillance camera, facial recognition/detection and many more! Equipped with a microSD card slot, you can store images or recordings on board as well!

Specifications:

Features:

• Low-power dual-core 32-bit CPU for application processors.
• Main frequency up to 240MHz, processing power up to 600DMIPS.
• Internal 520 KB SRAM, external 4M PSRAM.
• It supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
• Support OV2640 and OV7670 cameras, built-in flash.
• Support image WiFi upload.
• Support TF card.
• Support multiple sleep modes.
• Embedded Lwip and free RTOS.
• Support STA/AP/STA+AP working mode.
• Support smart configuration/AirKiss one-click distribution network.
• Support secondary development.
• Voltage: 5 V
• Current: 2A
• Dimensions: 2.7×4 cm/1.06×1.57 inch

Note:

• 1.Please ensure that the module input power is at least 5V 2A, otherwise the image will unstable.
• 2.ESP32 GPIO32 pin controls camera power. When the camera is working, please pull GPIO32 low.
• 3.Since IO0 is connected to the camera XCLK, please leave IO0 floating when using it. Do not connect high and low level.
• 4.The factory has the default firmware, no additional download is available. Please handle it carefully if you need to re-burn other firmware.
