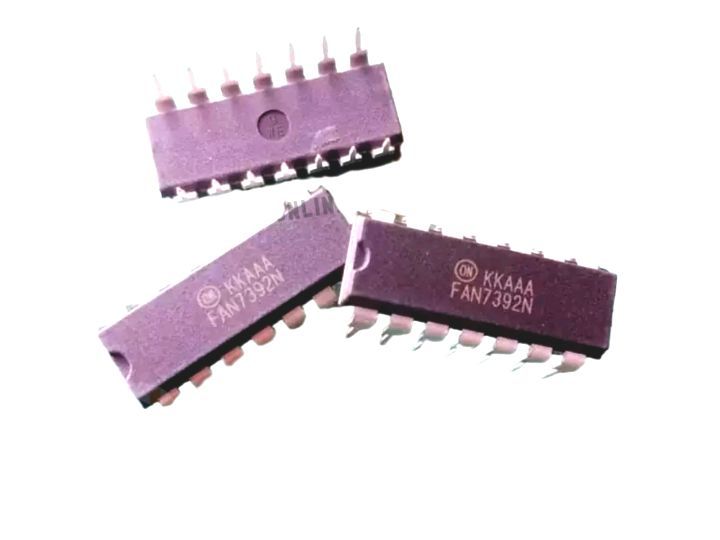

Product Description: FAN7392 High-Current Gate-Drive IC

The FAN7392 is a monolithic high− and low−side gate drive IC, that can drive high−speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross−conduction. ON Semiconductor’s high−voltage process and common−mode noise canceling techniques provide stable operation of the high−side driver under high dv/dt noise circumstances. An advanced level−shift circuit offers high−side gate driver operation up to VS = −9.8 V (typical) for VBS = 15 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The UVLO circuit prevents malfunction when VCC and VBS are lower than the specified threshold voltage. The high−current and low−output voltage drop feature makes this device suitable for half− and full−bridge inverters, like switching−mode power supply and high−power DC−DC converter applications.

Features:

• Floating Channel for Bootstrap Operation to +600 V
• 3 A/3 A Sourcing/Sinking Current Driving Capability
• Common−Mode dv/dt Noise Canceling Circuit
• 3.3 V Logic Compatible
•  Separate Logic Supply (VDD) Range from 3.3 V to 20 V
• Under−Voltage Lockout for VCC and VBS
•  Cycle−by−Cycle Edge−Triggered Shutdown Logic
•  Matched Propagation Delay for Both Channels
•  Outputs In−phase with Input Signals
•  Available in 14−DIP and 16−SOP (Wide) Packages
•  This is a Pb−Free Device

Applications:

• High−Speed Power MOSFET and IGBT Gate Driver • Server Power Supply • Uninterrupted Power Supply (UPS) • Telecom System Power Supply • Distributed Power Supply • Motor Drive Inverter

Product Specifications:

Number Of Pins: 8 Pins

Junction Temperature: 150C

Storage Temperature: -55C – +150C

Thermal Resistance: 75CW

Power Dissipation: 1.6W

Voltage Slew Rate: 50ns

Product Series: FAN7392

• Floating Channel for Bootstrap Operation to +600 V
• 3 A/3 A Sourcing/Sinking Current Driving Capability
• Common−Mode dv/dt Noise Canceling Circuit
• 3.3 V Logic Compatible
•  Separate Logic Supply (VDD) Range from 3.3 V to 20 V
• Under−Voltage Lockout for VCC and VBS
•  Cycle−by−Cycle Edge−Triggered Shutdown Logic
•  Matched Propagation Delay for Both Channels
•  Outputs In−phase with Input Signals
•  Available in 14−DIP and 16−SOP (Wide) Packages
•  This is a Pb−Free Device
