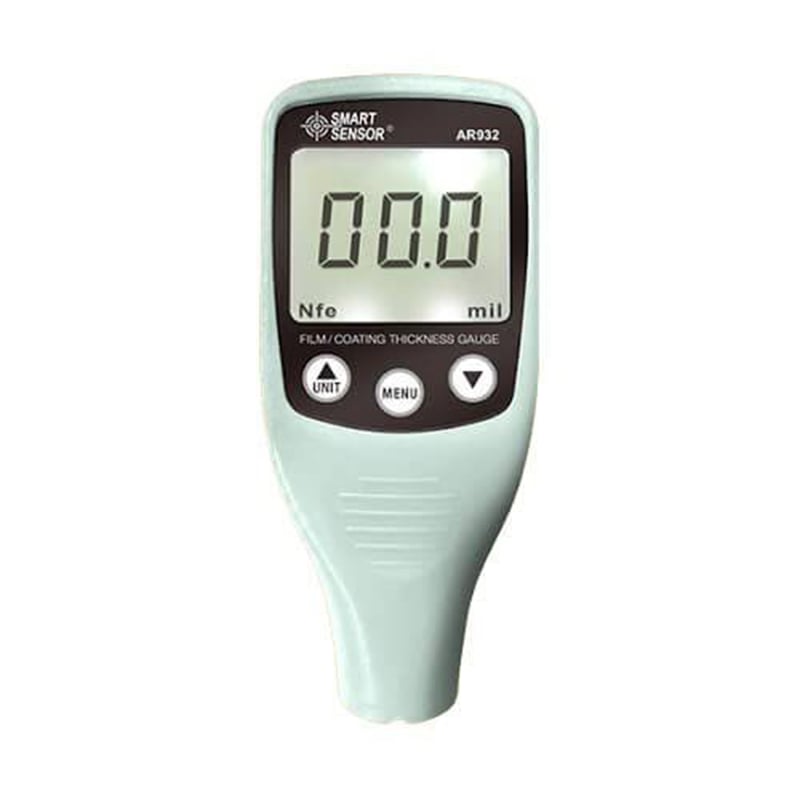

Film/Coating Thickness Gauge Meter, AR932 Smart Sensor-Multicolor

A coating thickness gauge is used to measure the coating wall of metals and other materials. It uses digital process technology, accuracy, and light. Model: AR932, Brand: Smart Sensor, Made in China.

Features of AR932 Film Coating Thickness Gauge

Measuring range

0~1800μm

Measuring Principle

Magnetic Induction & Eddy current

Accuracy

±(1.8%um±2um)(0-500um) ;

±(2.2%um±2um) (500-1500um)

Resolution

0.1μm / 1μm

Backlight Display

√

Battery Indication

√

Zero / Two Point / Basic correction

√

Alarm Buzzer

√

Single / Continuous / Standard

Deviation Measurement

√

Data Storage & Recall

√

Data Storage

20 groups

Max & Min Measuring

√

AVG & DFR Measuring

√

Metric / Imperial Switchable

√

Data Analysis

√

Operating Condition

0℃~50℃(without strong magnetic)

PACKING INFORMATION

Power

2*1.5V AAA battery

Product Net Weight

75g

Product Size

119*50*30mm

Packing

Gift Box
