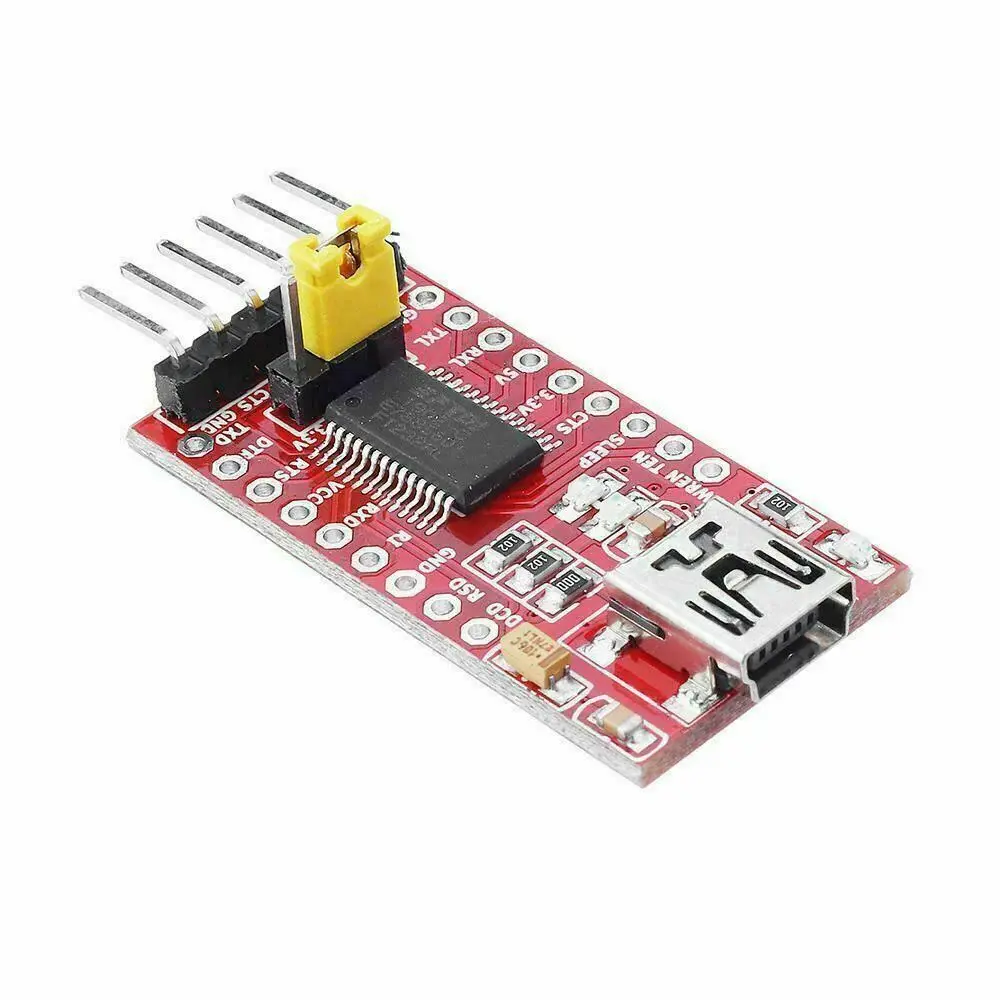

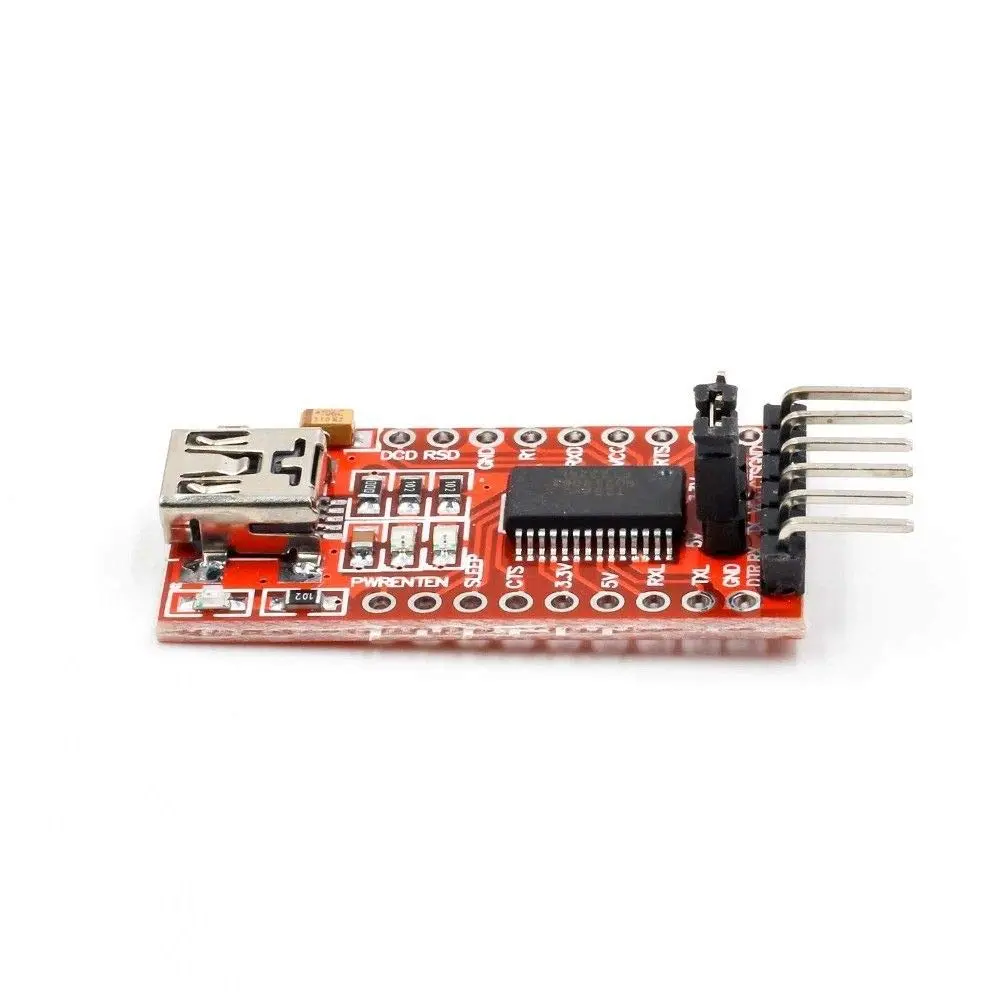

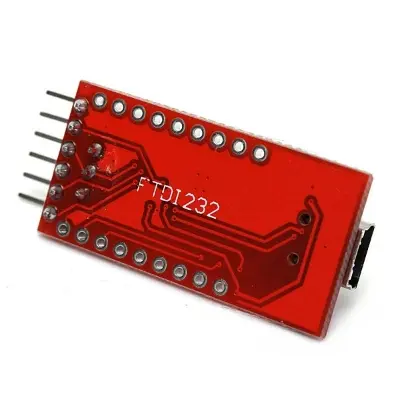

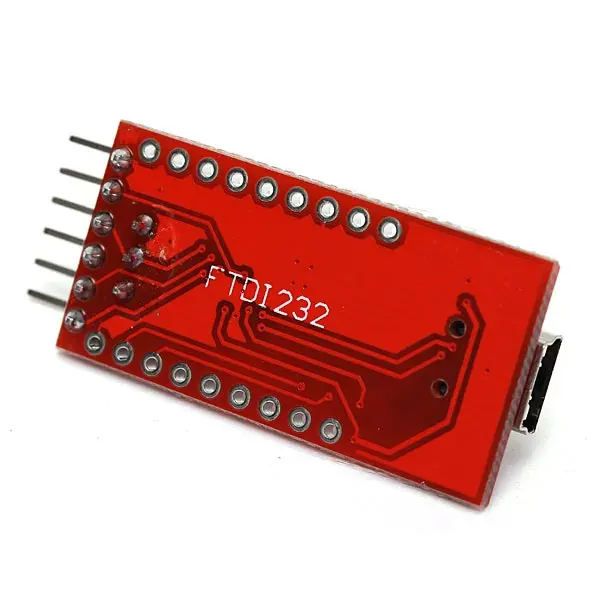

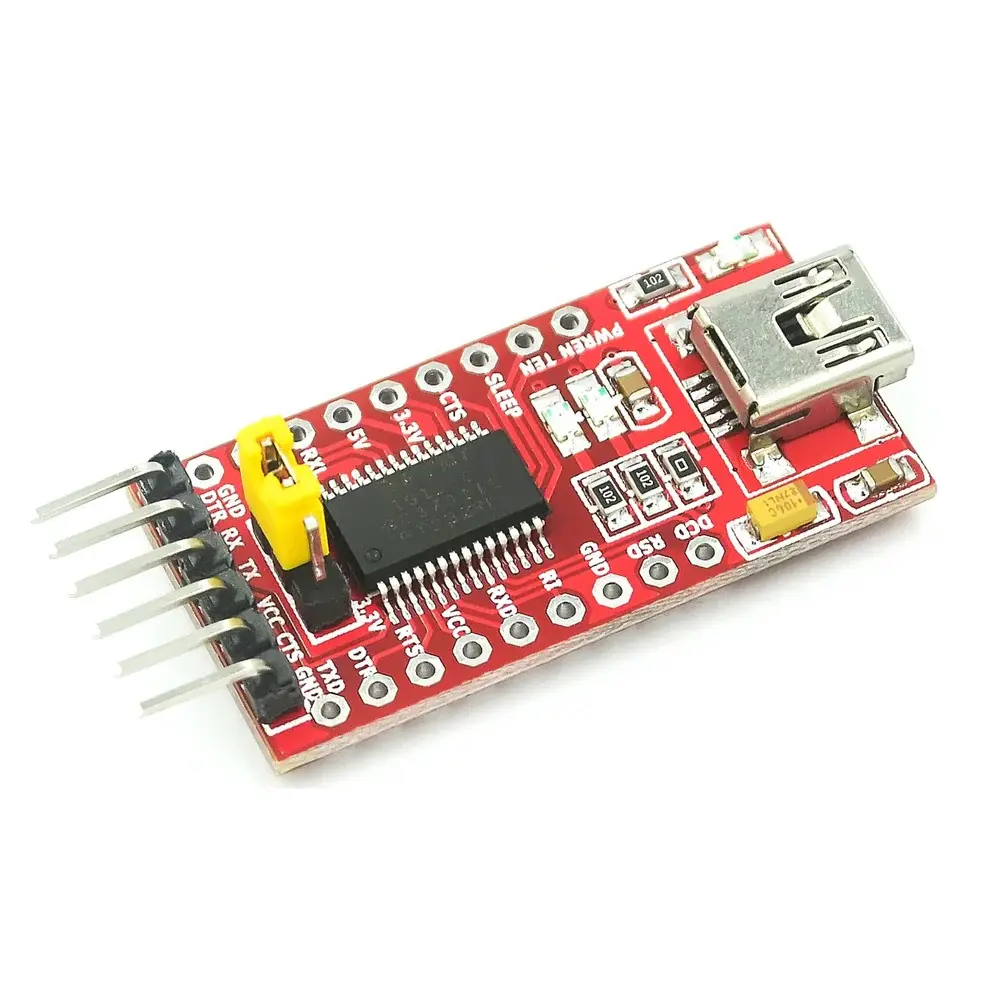

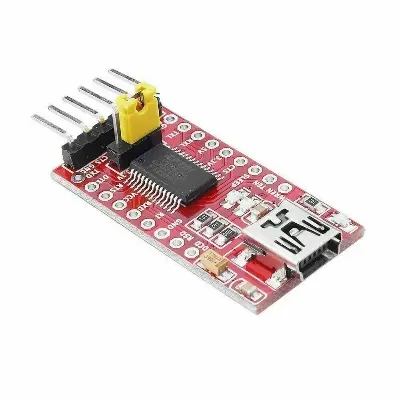

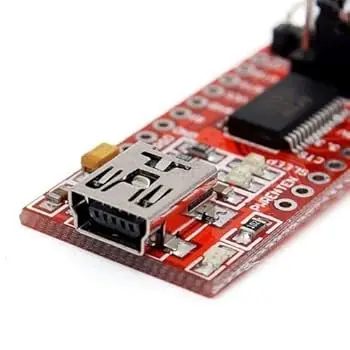

FT232RL FTDI USB to TTL Serial Adapter Module (3.3V/5.5V)(Red)

Product Description

The FT232 USB to TTL Serial Adapter Module is a compact and reliable interface board designed to bridge USB and TTL-level serial communication. Powered by the FTDI FT232RL chip, this module allows seamless communication between your computer and microcontroller-based systems such as Arduino, Raspberry Pi, and other embedded platforms. It supports both 3.3V and 5V logic levels, making it highly versatile for a wide range of applications, including firmware flashing, debugging, and serial data logging.

Specifications

• Chipset: FTDI FT232RL
• Operating Voltage: Selectable 3.3V or 5V (via onboard jumper)

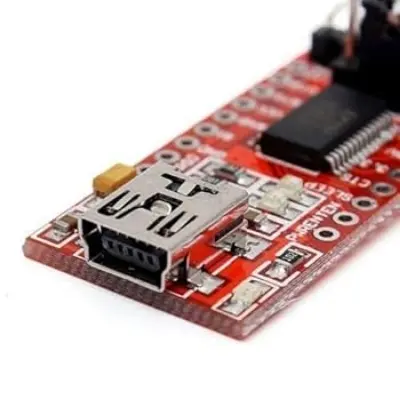

• USB Interface: Mini USB connector
• Data Transfer Rate: 300 Mbps to 3 Mbps
• Current Draw:
  • 5V mode: up to 500mA
  • 3.3V mode: up to 50mA
• EEPROM: 1024-bit for storing device descriptors and configuration
• LED Indicators: TX and RX activity LEDs

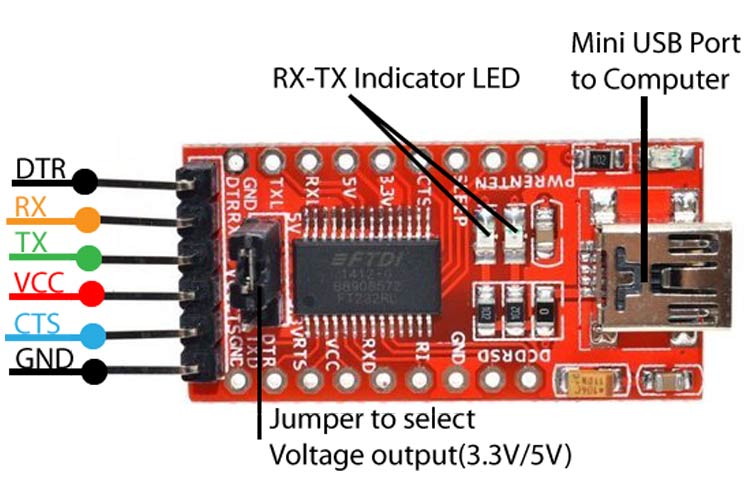

• Pinout: DTR, RXD, TXD, VCC, CTS, GND
• Driver Support: FTDI VCP and D2XX drivers (Windows, macOS, Linux)
• Dimensions: Approx. 36mm x 18mm
• Applications:

• Programming microcontrollers (e.g., Arduino Pro Mini)
• Serial communication with GPS modules, routers, and embedded systems
• USB to RS232/RS485/RS422 conversion
