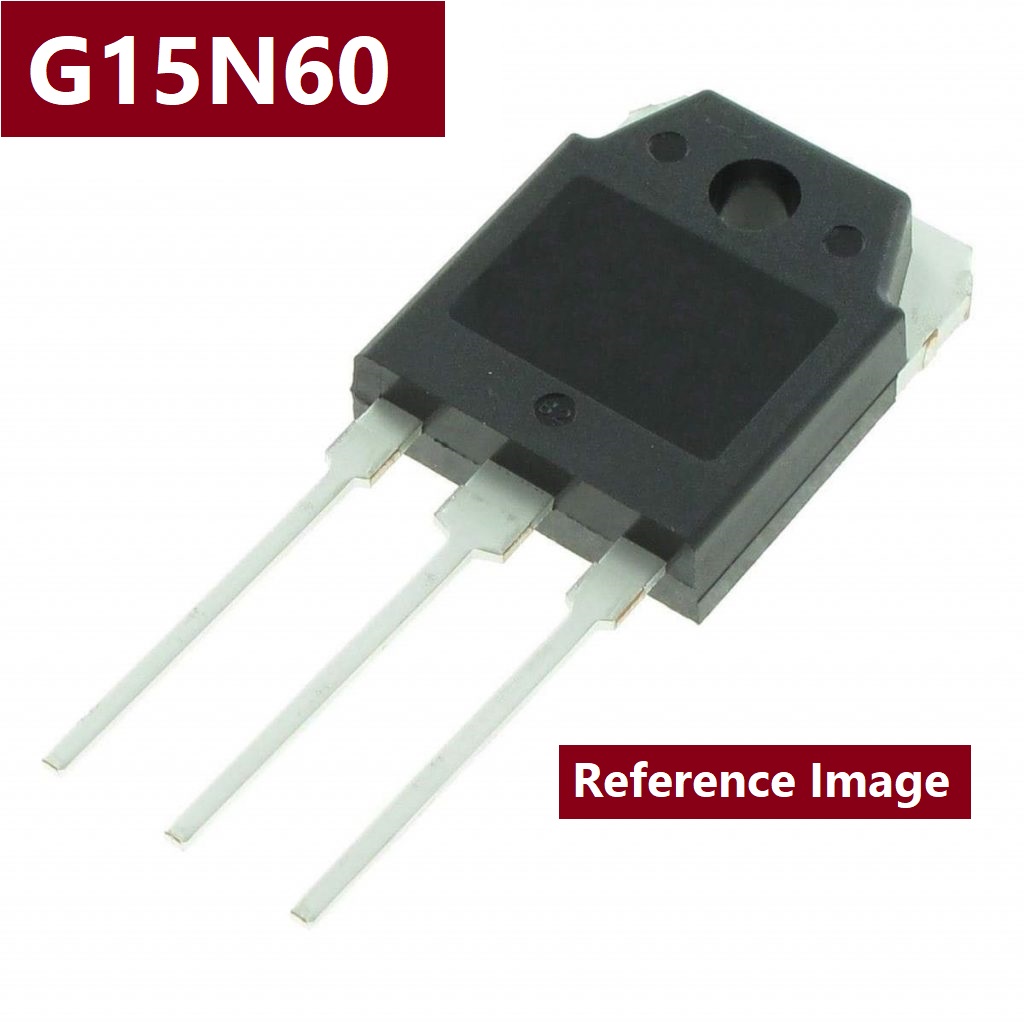

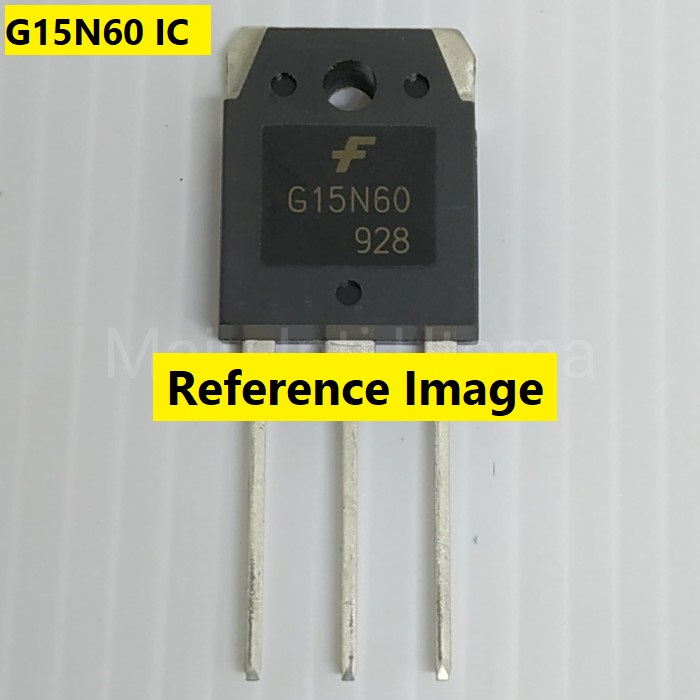

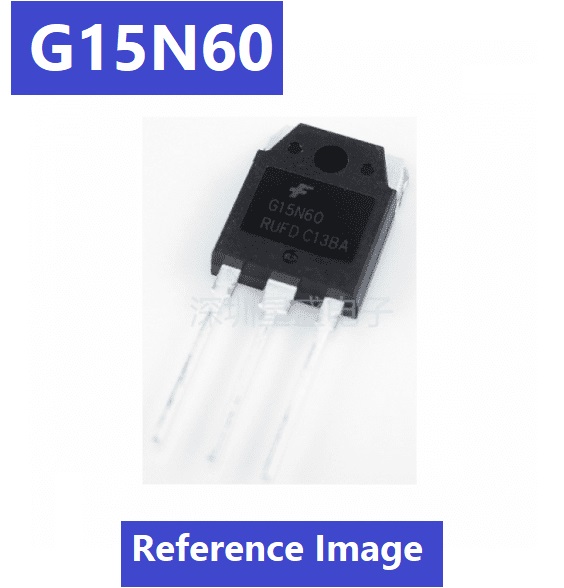

Description: G15N60 600V 15A 160W IGBT TO-3P

G15N60 IGBT Transistors PNP G15N60 IC 600V 15A Fast IGBT TO-247 Package G15N60 Transistor IGBT G15N60 15A 600V IGBT 3 Pin Leads 160W IGBT MOSFET Triode Chip

G15N60RUFD SGW15N60 G15N60 IGBT 15N60 600V 15A 160W TO-247 3 Pin Leads IGBT Transistor MOSFET Triode Chip

G15N60 IGBT has a 600 volts Vce and Collector current of 15 Ampere and peak pulsed collector current of 62 Ampere. G15N60 has 75% lower Eoff and can withstand short circuit upto 10us. G15N60 IGBT is specially designed for Motor Control and Inverter applications.

Features:

• Short Circuit rated 10us @ T C = 100°C, V GE = 15V
• High Speed Switching
• Low Saturation Voltage : V CE(sat) = 2.2 V @ I C = 15A
• High Input Impedance
• CO-PAK, IGBT with FRD : t rr = 42ns (typ.)

Applications:

• AC & DC motor controls, general purpose inverters ,robotics and servo controls.

• Short Circuit rated 10us @ T C = 100°C, V GE = 15V
• High Speed Switching
• Low Saturation Voltage : V CE(sat) = 2.2 V @ I C = 15A
• High Input Impedance
• CO-PAK, IGBT with FRD : t rr = 42ns (typ.)
