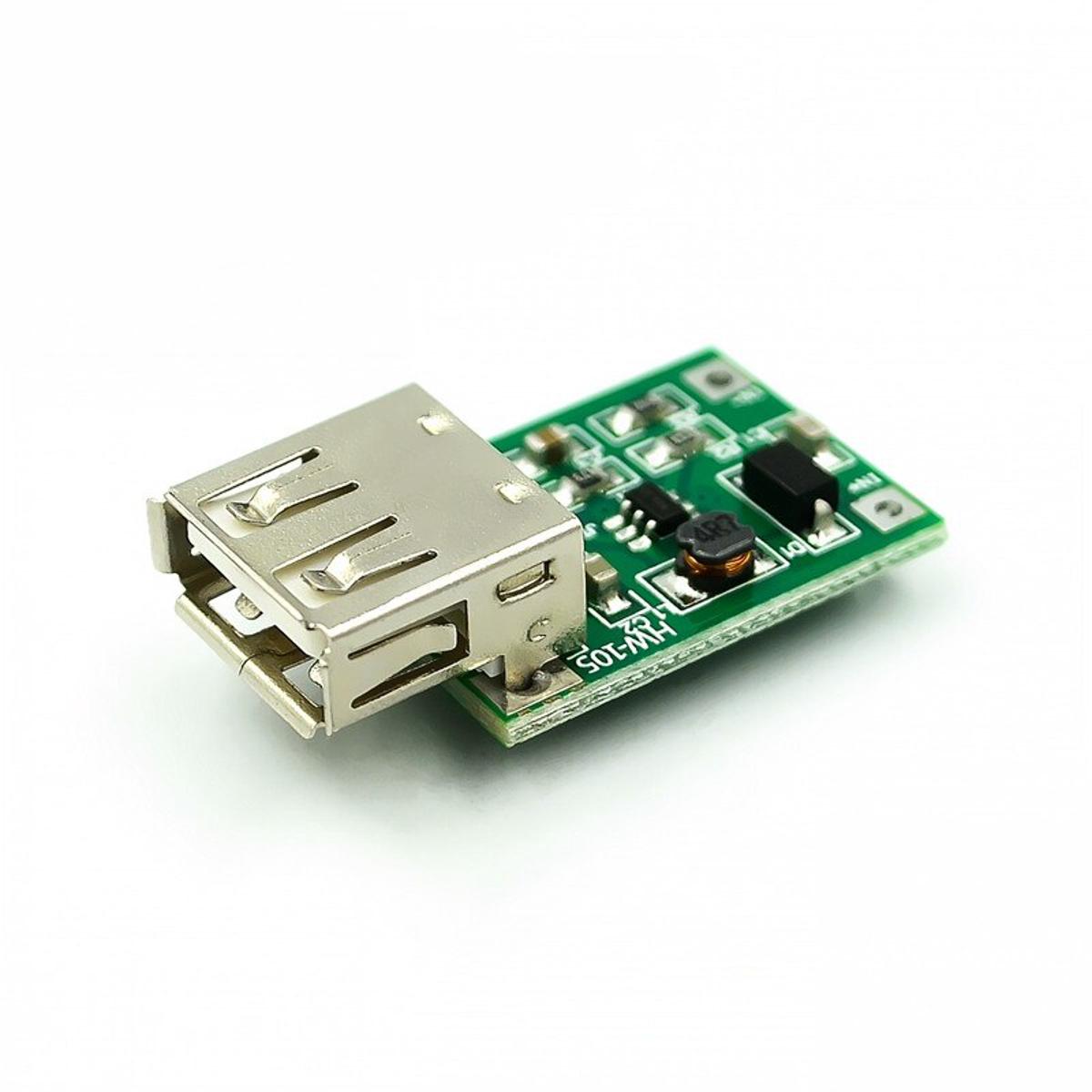

Description: DC DC Step Up 0.9V-5V To 5V 600mAh Boost Converter Green Color Power Supply Module Battery Charger Voltage Module USB Output Charging Circuit.

Two AA batteries it can output current of 500 ~ 600MA, a single AA battery power supply can output 200ma current supply, great for mobile phones camera, single-chip, digital products supply

The module adopts high-performance imported chip, performance is superior to the common module. Input any 0.9 V~5V dc voltage, all can stable output 5V dc voltage, with a single AA battery power supply can output current up to 200~300mA,two AA batteries to the output current of 500~600 ma The industrial temperature range: -40 to +85 The conversion efficiency is high, up to 96% Take the USB female, wide range of USES Super small volume 18x25mm (PCB), used in all sorts of small equipment installation Work with indicator light

Feature:

• Input voltage: 0.9V – 5V
• Output voltage: 5.1 – 5 .2 V
• Output Current: Rated 1A – 1.5A (single lithium input), the maximum 1.5A (single lithium input)
• Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
• Switching frequency: 500KHz
• Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
• Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
• Operating Temperature: Industrial (-40°c to + 85°c)
• Full load temperature rise: 30°c
• Quiescent Current: 130uA
• Load regulation: ± 1%
• Voltage regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: None (Please use the lithium battery with protection.)
• Input Reverse Polarity Protection: None
• Connection: Welding
• Input: IN + Positive, IN-Negative
• Output: USB Output

Applications:

• DIY a mobile power supply, only need one battery, it can output 5V voltage for your phone, MP3, MP4, PSP charger

Package included:

• 1 x DC DC Step Up 0.9V-5V To 5V 600mAh Boost Converter Green Color

• Input voltage: 0.9V – 5V
• Output voltage: 5.1 – 5 .2 V
• Output Current: Rated 1A – 1.5A (single lithium input), the maximum 1.5A (single lithium input)
• Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
• Switching frequency: 500KHz
• Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
• Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
• Operating Temperature: Industrial (-40°c to + 85°c)
• Full load temperature rise: 30°c
• Quiescent Current: 130uA
• Load regulation: ± 1%
• Voltage regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: None (Please use the lithium battery with protection.)
• Input Reverse Polarity Protection: None
• Connection: Welding
• Input: IN + Positive, IN-Negative
• Output: USB Output
