Description: GY-271 HMC5883L 3-Axis Digital Compass Module

GY-271 GY271 HMC5883 HMC5883L Triple Axis 3 Axis Electronic Compass Magnetometer Sensor Module DC 3V 5V Power Supply For Arduino Electronics Circuitry & Parts

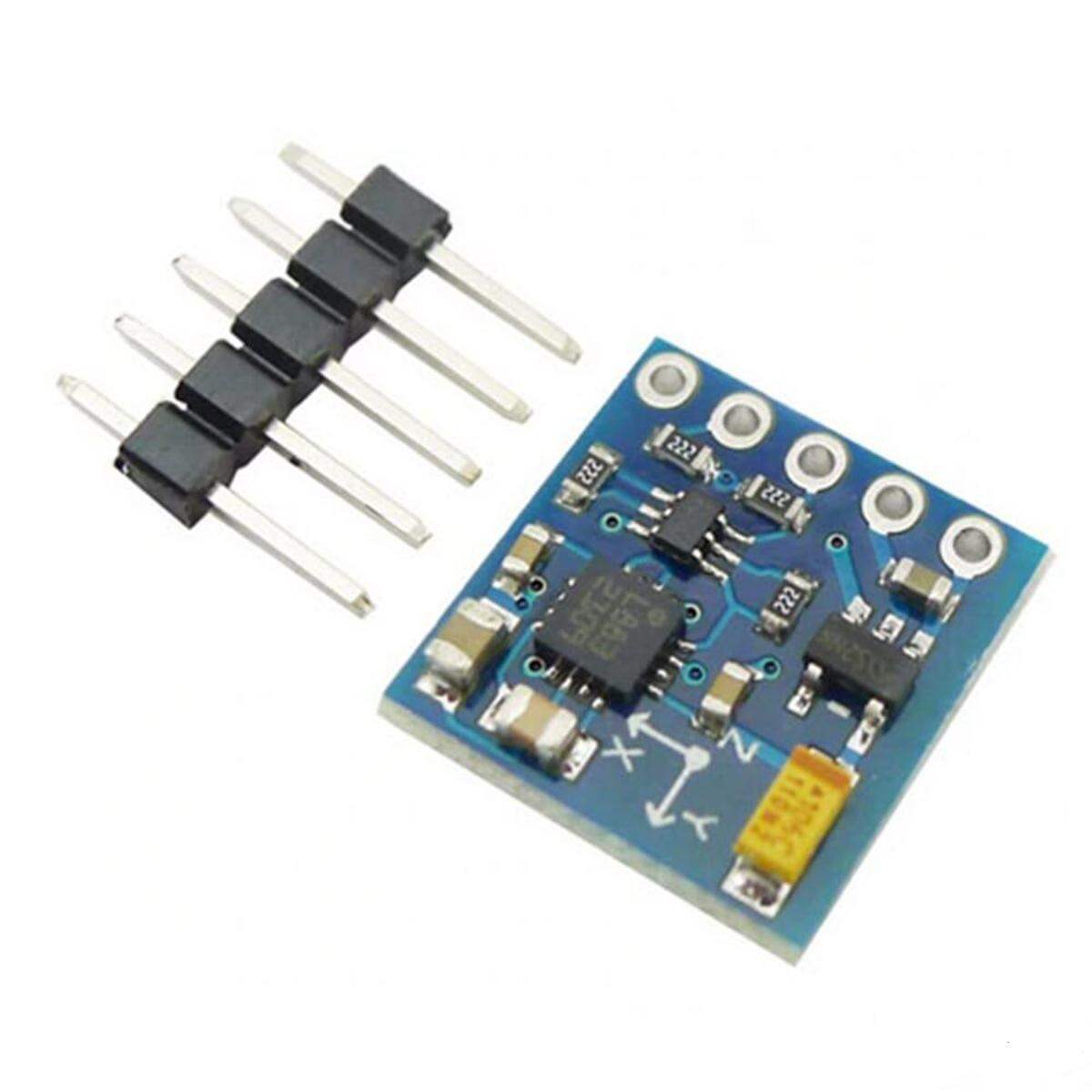

GY-271 HMC5883L 3-Axis Magnetometer Compass Sensor Module [3V-5V] is ahigh sensitivity magnetic sensor that uses hall sensing technology to detect and measure the threegeomagnetic axes. This sensor module is designed based on the HMC5883L 3-Axis Digital Compasschip, that converts any magnetic field to a differential voltage output on 3 axes.The HMC5883 chip operates based on Honeywell’s Anisotropic Magnetoresistive (AMR) technology, that provides more accuracy in-axis sensitivity and linearity than other magnetic sensors. This chip is comprised of high-resolution magneto-resistivesensors withdedication amplification, self degaussing strap drivers, offset cancellation, and a 12-bit ADC.This module hasan internal voltageregulator for the power supply requirement so can be supplied with 3V to 5V DC to measure both the direction and the magnitude of Earth’s magnetic fields from -8 gauss upto +8 gauss with ±2 miligaussaccuracy that can achieve 1 to 2-degree accuracy in navigation. This compass module can communicate with microcontroller and Arduino boards trough the I2C and SPIserial bus interface. This sensoris an ultra-low power consumption with a tiny size that is specialized for portable or battery supplied devices such as robot navigation systems,cellphone navigation system, tabletnavigation system, notebook navigation system,automatic navigation systems, and portablenavigation devices

General Specifications:

• 3-axis magnetic electronic compass
• Precise heading information
• Fits into small projects easily
• I2C communication
• HMC5883L chip

Technical Specifications:

• Model:GY-271
• Chip:HMC5883L
• Input Voltage: 3V ~ 5V
• Sleep mode current: 2uA
• Measurement mode current: 100uA
• Output Type: Digital
• ADC: 12 bit
• Maximum output frequency:160Hz
• Heading angle accuracy:1° ~ 2°
• Resolution:2 milli-gauss
• Magnetic Field Range:-8gauss ~ +8 gauss
• Interface: I2C
• Pin Number: 5Pin
• Size: 14.5mm x 13.5mm

Package Include:

• 1x GY-271 GY271 HMC5883 HMC5883L Triple Axis 3 Axis Electronic Compass Magnetometer Sensor Module DC 3V 5V Power Supply For Arduino
