Descriptions: ADXL345 Triple Axis (3-axis) Accelerometer Module

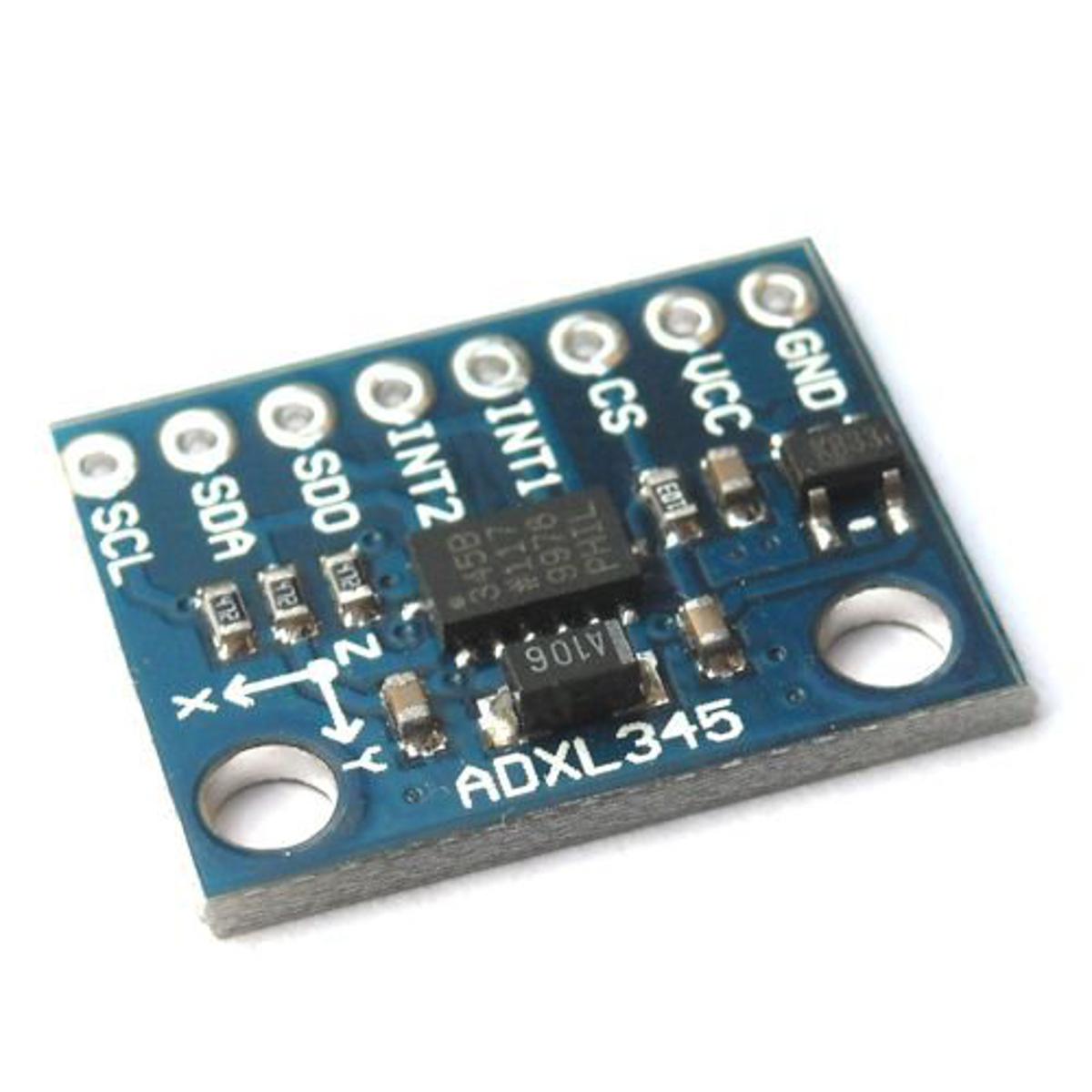

It is Breakout board for the Analog Device’s ADXL345 Triple axis accelerometer with Voltage regulator onboard. The module is populated with MOSFET based Voltage level conversion circuitry to enable you to interface different type of microcontrollers (3V3 & 5V) . Apart from the above all necessary components like decoupling capacitors , filter capacitors ,Pull up resistors and LED are also populated on board. So out of the box you are ready to go. The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit two’s complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.

Specifications:

• 2.0-3.6VDC Supply Voltage
• Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
• Tap/Double Tap Detection
• Free-Fall Detection
• SPI and I2C interfaces

Features:

• Ultralow power: as low as 23 µA in measurement mode and 0.1 µA in standby mode at VS = 2.5 V (typical)
• Power consumption scales automatically with bandwidth
• User-selectable resolution up to 13-bit at ±16 g (maintaining 4 mg/LSB scale factor in all g ranges)
• Free-fall detection
• Module supply voltage range: 4.0 V to 6 V
• I/O voltage range: 1.7 V to 3.6V
• SPI (3- and 4-wire) and I2
• Wide temperature range (−40°C to +85°C)
• High G shock survival
• Small and thin: 3 mm x 5 mm x 1 mm

Documents:

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet
• Example Code(ATmega328)
• GitHub

Package Include:

• 1 x ADXL345 3-axis Digital Tilt Sensors Acceleration Module

• Reasonable price
• Durable and practical
• Top Sales Item
• Chip: the adxl345
• Power supply: 3-5V
• Communication: the IIC / SPI communication protocol
