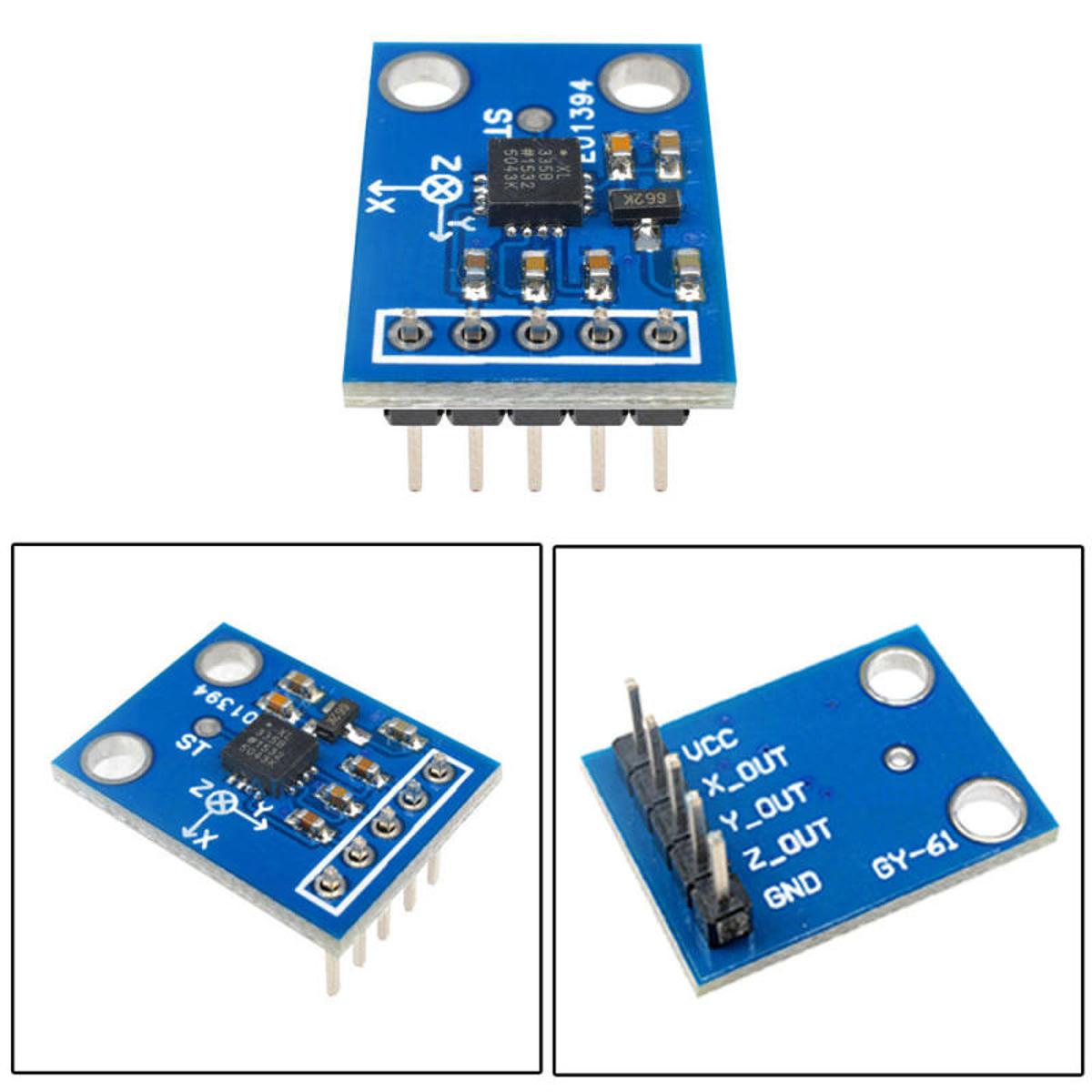

Descriptions: GY-61 ADXL335 3-axes Analog Output Accelerometer Module

We’ve updated our favorite triple-axis accelerometer to now have an on-board 3.3V regulator – making it a perfect choice for interfacing with a 5V microcontroller such as the Arduino. This breakout comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75″x0.75″ breakout board. The ADXL335 is the latest and greatest from Analog Devices, known for their exceptional quality MEMS devices. The VCC takes up to 5V in and regulates it to 3.3V with an output pin. The analog outputs are ratiometric: that means that 0g measurement output is always at half of the 3.3V output (1.65V), -3g is at 0v and 3g is at 3.3V with full scaling in between. Fully assembled and tested. Comes with 8 pin 0.1″ standard header in case you want to use it with a breadboard or perfboard. Two 2mm (0.08″) mounting holes for easy attachment. The XYZ filter capacitors are 0.1uF for a 50 Hz bandwidth.

Features:

• Onboard LDO Voltage regulator
• Can be interfaced with 3V3 or 5V Microcontroller.
• All necessary Components are populated.
• Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
• Tap/Double Tap Detection
• Free-Fall Detection
• Analog output
• Build in ultra low noise linear LDO voltage regulator
• Built-in onboard filters, which reduce noise from the motor and other high current electronics
• All sensors connected to the I2C bus
• You can easily select two I2C address for MPU6050 by soldered jumper
• Power LED
• Build in Logic level converter for I2C
• Designed for 5V logic level

Specifications:

• Name: ADXL335 module (triaxial accelerometer analog output)
• Model: GY-61
• Supply Range: 3V – 5V DC
• Full-scale range: +/- 3g
• Current: 400uA
• Output: Analog (X,Y,Z outputs)
• Sensitivity: 300mV/g (Typ)
• Operating Temperature: -40°C ~ 85°C
• Dimensions: 15.7mm x 20.3mm x 11.6mm (L * W * H)

Applications:

• FPV, RC and Robots systems
• GPS navigation systems
• Impact recognition and logging
• Gaming and virtual reality input devices
• Motion-activated functions
• Intelligent power saving for handheld devices
• Vibration monitoring and compensation
• Free-fall detection
• 6D-orientation detection

Documents:

• adxl335

Package Include:

• 1 x ADXL335 3-axes Analog Output Accelerometer Module

• This is a three-axis acceleration of gravity tilt module using ADXL335 chip.
• Provide direct output angle code 51 MCU C language with AD and schematic diagram.
• Information download: http://pan.baidu.com/s/1bn7xSLL.
• High qualityhigh sensibility high reliability.
• Widely used for electronic DIY lab experiment etc.
