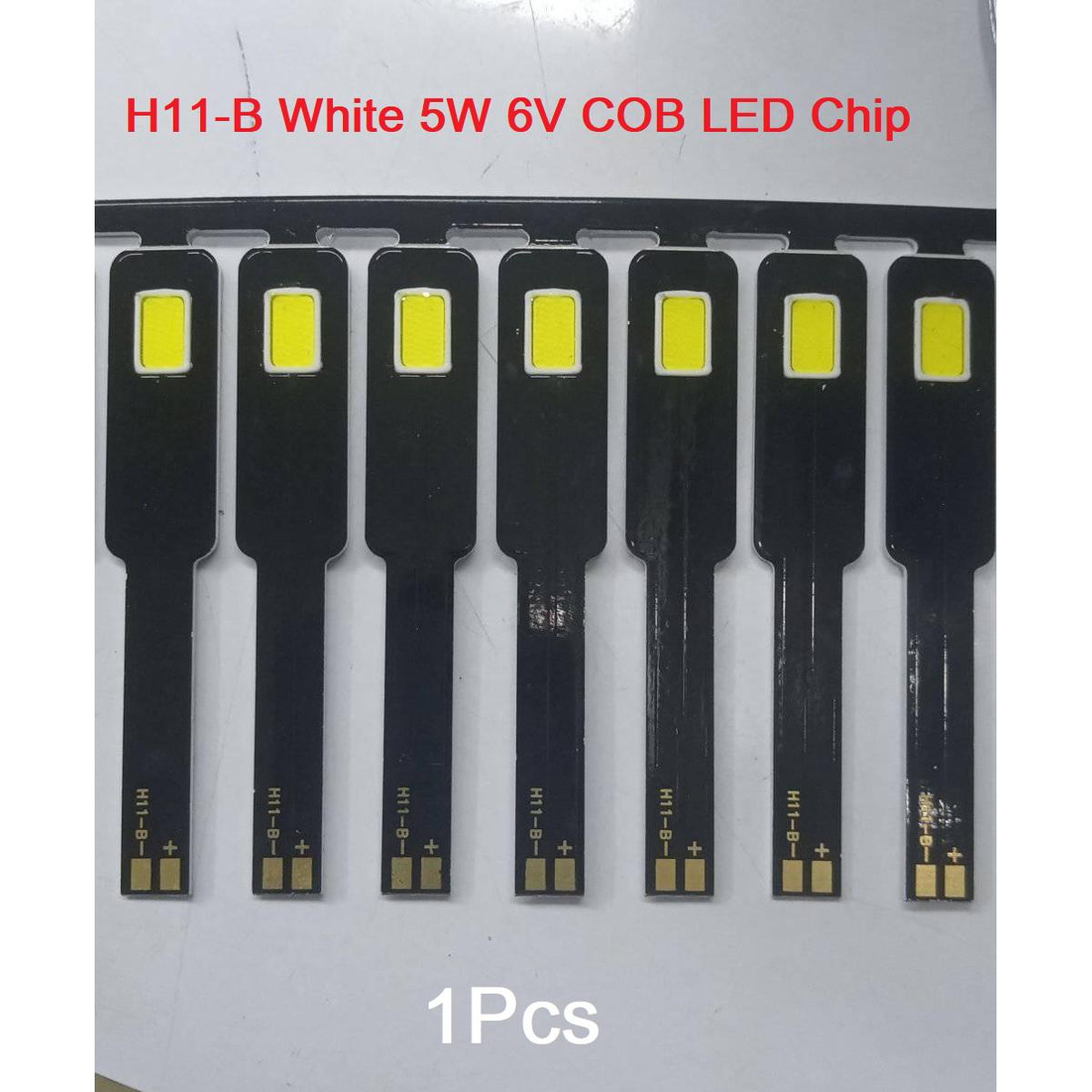

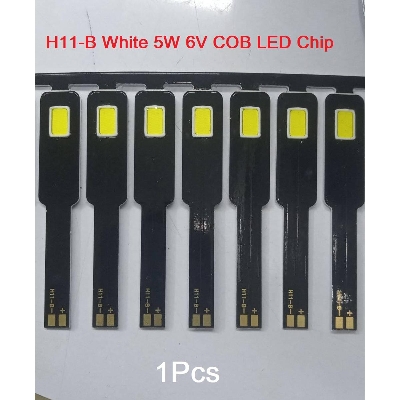

Descriptions: H11-B White 5W 6V COB LED Chip Module Size 60x11mm COB LED Strip Light Source

H11-B White 5W 6V COB LED Chip Module Size 60x11mm COB LED Strip Light Source For Floodlight Spotlight Headlights Wall Lamp Desk Work Lights Solar Light System Bulb

COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.

Features:

• Power: 5W.
• Color temperature: White (6500 K)
• Long service life, low consumption, high brightness, environmentally friendly.
• Widely used in the replacement of ceiling lamp, spotlights, lanterns, stage lights, etc.
• This LED chip needs a heat sink for cooling.Apply thermal grease evenly to the underside of the light source and the contact surface of the heat sink during installation.
• Note: This LED chip is powered by constant current LED driver power supply.Don't light it without aluminum heat sink, otherwise it will be damaged.

Specifications:

• Name: 60x11mm COB LED light source 5W 6V DC
• Board size: 60x11x8mm.
• Illumination area: 9x6 mm.
• Input voltage: 6V
• Current: 300 mA.
• Thickness: 1.5 mm.
• Color Emitting (CCT):WARM White (4800-6500 K)

• Name:  60x11mm COB LED light source 5W 6V DC
• Board size: 60x11x8mm.
• Illumination area: 9x6 mm.
• Input voltage: 6V
• Current: 300 mA.
• Thickness: 1.5 mm.
• Color Emitting (CCT):WARM White (4800-6500 K)
