HC-08 Bluetooth Module |seamless BLE 4.0 Connectivity for Arduino, Android, and iOS(Green)

HC-08 Bluetooth Module: Seamless Connectivity for Your Projects

Detailed Specification

• Model: HC-08
• Bluetooth Version: 4.0 BLE (Bluetooth Low Energy)

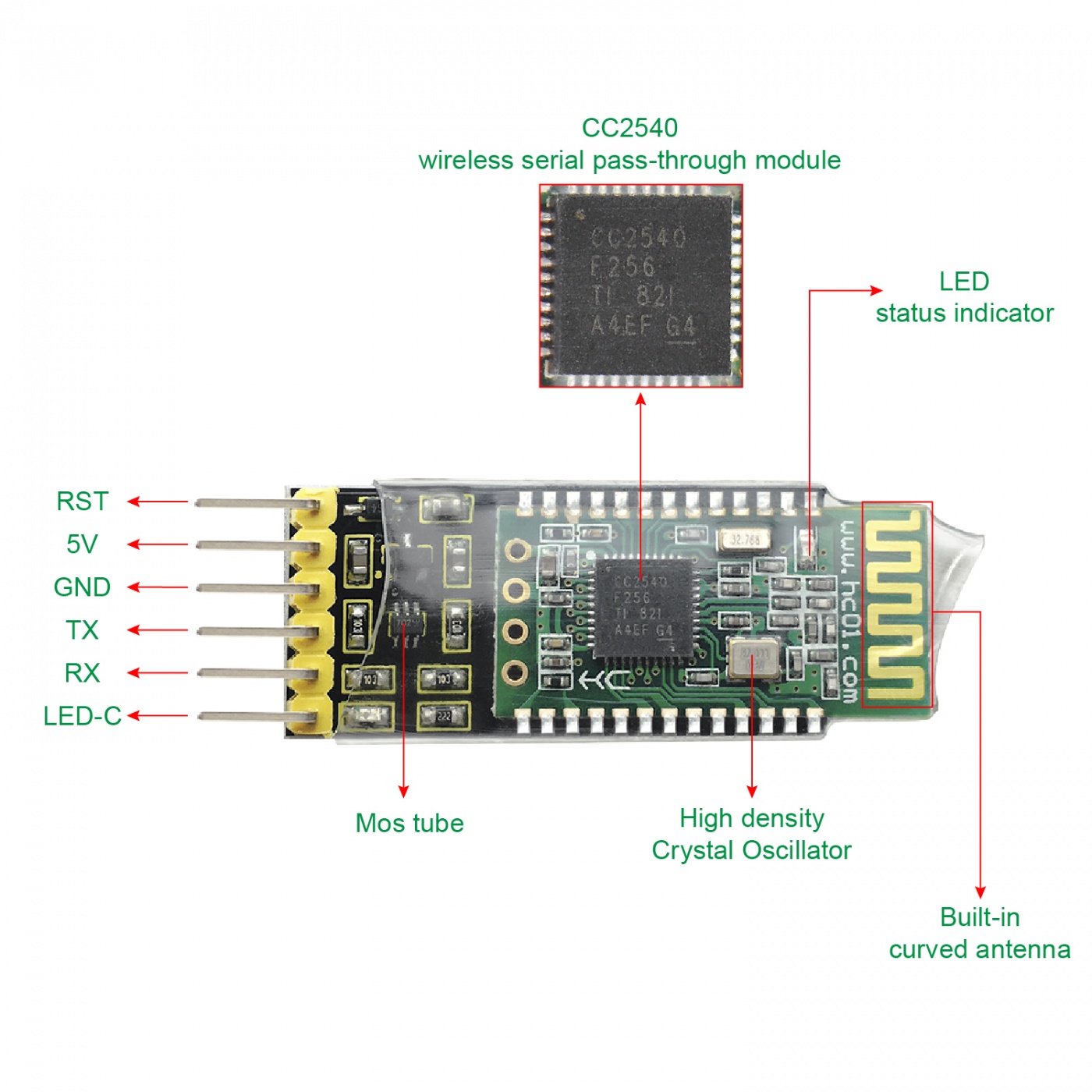

• Chipset: CC2540
• Operating Voltage: 3.3V
• Operating Frequency: 2.4 GHz ISM band
• Communication Interface: UART 3.3V TTL
• Transmission Power: 4 dBm (maximum)
• Receiving Sensitivity: -93 dBm
• Range: Up to 80 meters in an open environment
• Modulation Method: GFSK (Gaussian Frequency Shift Keying)
• Dimensions: 26.9mm x 13mm x 2.2mm
• Weight: 2 grams
• Pin Count: 30 pins
• Antenna: Onboard PCB antenna
• Temperature Range: -40°C to +85°C
• Features:
  • Supports AT commands for flexible configuration
  • Built-in LED indicator for connection status
  • Supports master and slave modes
  • Ideal for embedded applications
  • Low power consumption with automatic sleep mode

The HC-08 Bluetooth Module is perfect for various applications, including wireless data transmission, remote control systems, and IoT projects. Its compact size and robust performance make it an excellent choice for developers and hobbyists alike
