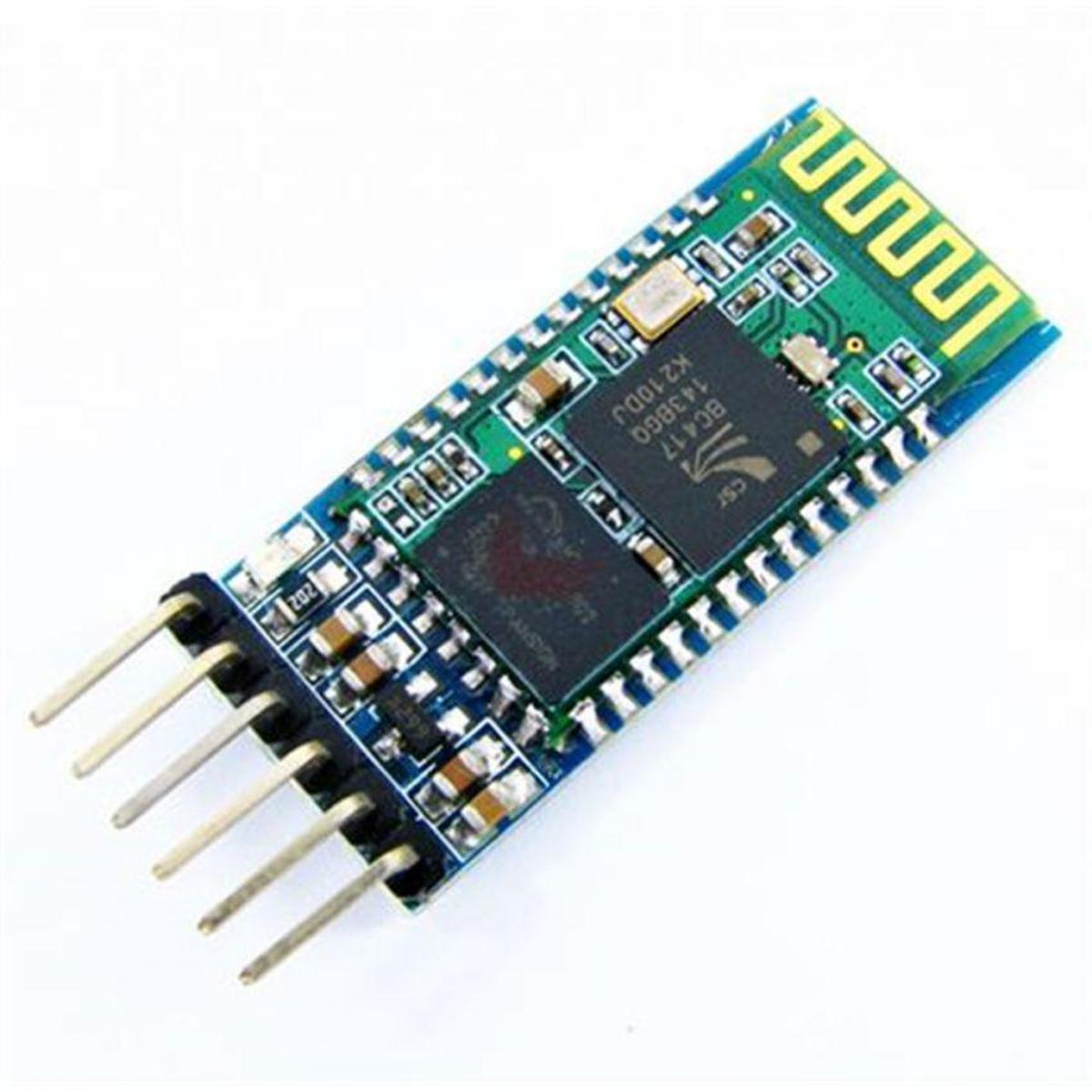

HC-05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup.Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).

• Typical -80dBm sensitivity
• Up to +4dBm RF transmit power
• Low Power 1.8V Operation ,1.8 to 3.6V I/O
• PIO control
• UART interface with programmable baud rate
• With integrated antenna
• With edge connector
