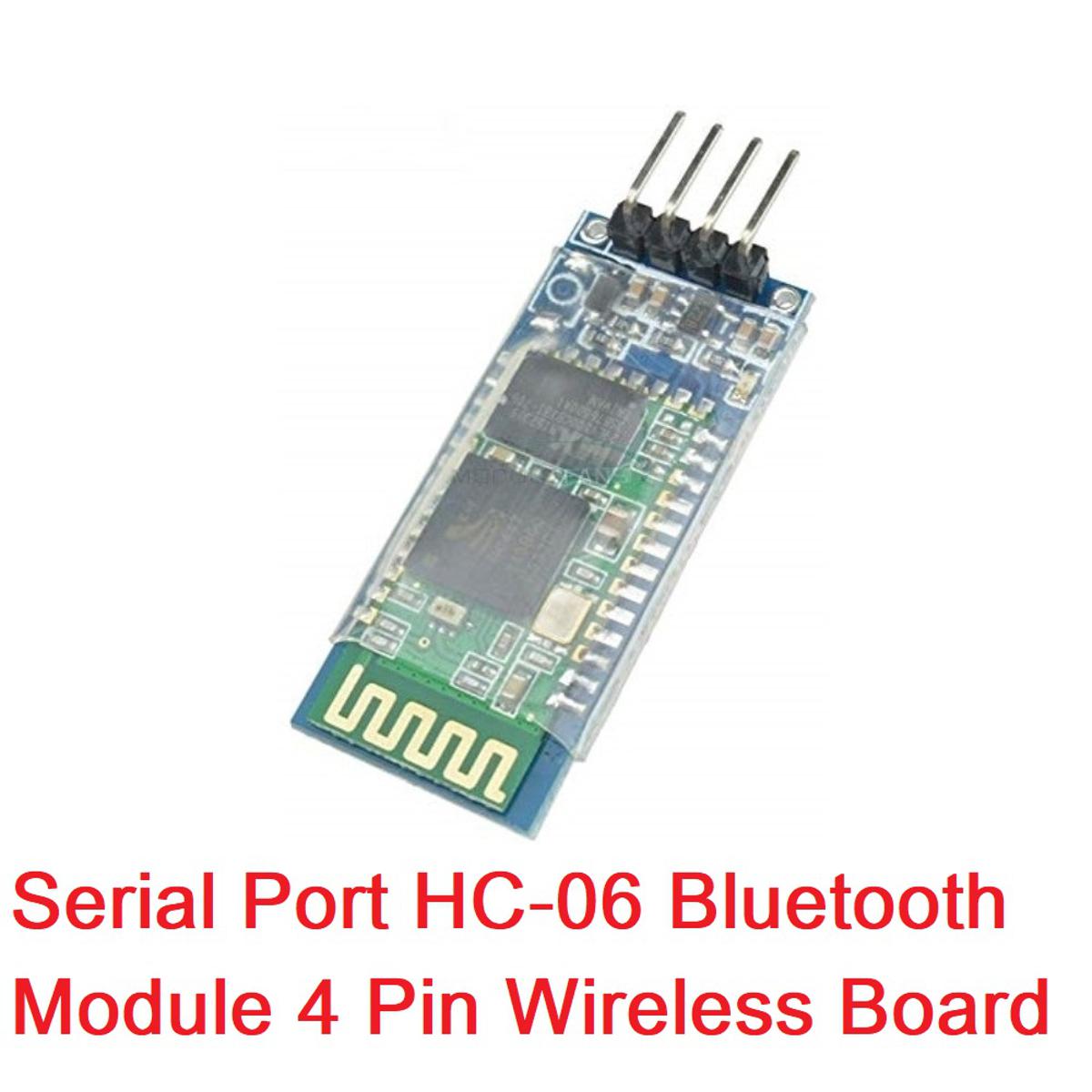

Description: HC 06 Bluetooth Module Serial Port HC-06 Integrated Bluetooth Module Wireless Serial Port 4 Pin HC06 Board For Arduino Electronics Project

The HC-06 is a class 2 slave Bluetooth module designed for transparent wireless serial communication. Once it is paired to a master Bluetooth device such as PC, smart phones and tablet, its operation becomes transparent to the user. All data received through the serial input is immediately transmitted over the air. When the module receives wireless data, it is sent out through the serial interface exactly at it is received. No user code specific to the Bluetooth module is needed at all in the user microcontroller program.

The HC-06 will work with supply voltage of 3.6VDC to 6VDC, however, the logic level of RXD pin is 3.3V and is not 5V tolerant. A Logic Level Converteris recommended to protect the sensor if connect it to a 5V device (e.g Arduino Uno and Mega).

NOTE: This module does not support AT command.

Specification:

Model: HC-06

Pin: 4 Pin

Input Voltage: DC 5V

Communication Method: Serial Communication

slave mode

Can be easily interfaced with Laptop or Mobile phones with Bluetooth

Serial Bluetooth module for Arduino and other microcontrollers

Features:

The module is mainly used for short-distance wireless data transmission field. You can easily and PC-connected Bluetooth devices, you can also exchange data between the two modules. To avoid cumbersome cable connection, can directly replace the serial line.

Bluetooth wireless data transmission

Industrial remote control, telemetry

POS system, wireless keyboard, mouse

Traffic, underground location, alarm

Automated data acquisition system

Wireless data transmission; banking system

Pin Descriptions:

VCC: 5V

GND: Ground

RXD: Receiver, Bluetooth module receives from another device sent data; normally connected to other devices transmitting end TXD.

TXD: sending end, the Bluetooth module to send data to other devices; receiving terminal is normally connected to other devices RXD

Applications:

Wireless communication between two microcontrollers

Communicate with Laptop, Desktops and mobile phones

Data Logging application

Consumer applications

Wireless Robots

Home Automation

Package Include:

1 x Serial Port HC-06 Integrated Bluetooth Module Wireless Serial Port 4 Pin HC06 Board For Arduino Electronics Project

• Model: HC-06
• Pin: 4 Pin
• Input Voltage: DC 5V
• Communication Method: Serial Communication
• slave mode
• Can be easily interfaced with Laptop or Mobile phones with Bluetooth
• Serial Bluetooth module for Arduino and other microcontrollers
