This Module Effectively protect the battery from overcharge damage or loss of electricity. For 220V conversion home charger to charge the battery charging voltage Digital display settings, real time monitoring of voltage. Suitable for 3.7-120V lithium battery or storage battery.

The XH-M602 / HW-631 Digital Control Battery Charging Control Module is a versatile and efficient solution for charging lithium storage batteries in the range of 3.7V to 120V DC. This module is designed to ensure precise charging and protection for batteries, making it suitable for a wide range of applications.

With an input voltage range of DC 6-60V, this control module can effectively handle different battery voltages. The display accuracy of 0.1V ensures that you have accurate voltage readings during charging. Additionally, the control accuracy of 0.1V allows you to set the desired charging voltage precisely.

The output type of this module is direct, providing a convenient and straightforward charging process. The voltage tolerance of ±0.1V ensures that your batteries are charged with minimal deviation from the desired voltage level.

Setting the start and stop charging voltages is made easy with dedicated buttons. By pressing the start voltage button, you can display and set the desired start charging voltage. Similarly, the stop voltage button allows you to set the stop charging voltage.

For added convenience, the module comes with a factory-set error value of 888. This makes it easier for users to restore the default settings when needed.

The compact design of the module (815418mm) ensures easy installation and integration into various projects or systems. It is suitable for charging a range of batteries from 6V to 60V, with a maximum capacity of 80V.

With the XH-M602 / HW-631 Digital Control Battery Charging Control Module, you can confidently charge and protect your batteries with precise control and efficiency. It is an essential tool for battery charging applications that require accuracy and reliability.

Features:

•  This charge control module can automatically control charging and discharging to protect batter.
•  LED power supply with power display is more practical.
•  Wide range of applications, suitable for 3.7V-120V all lithium .
•  Automatically cut off power to save power and extend service life of .

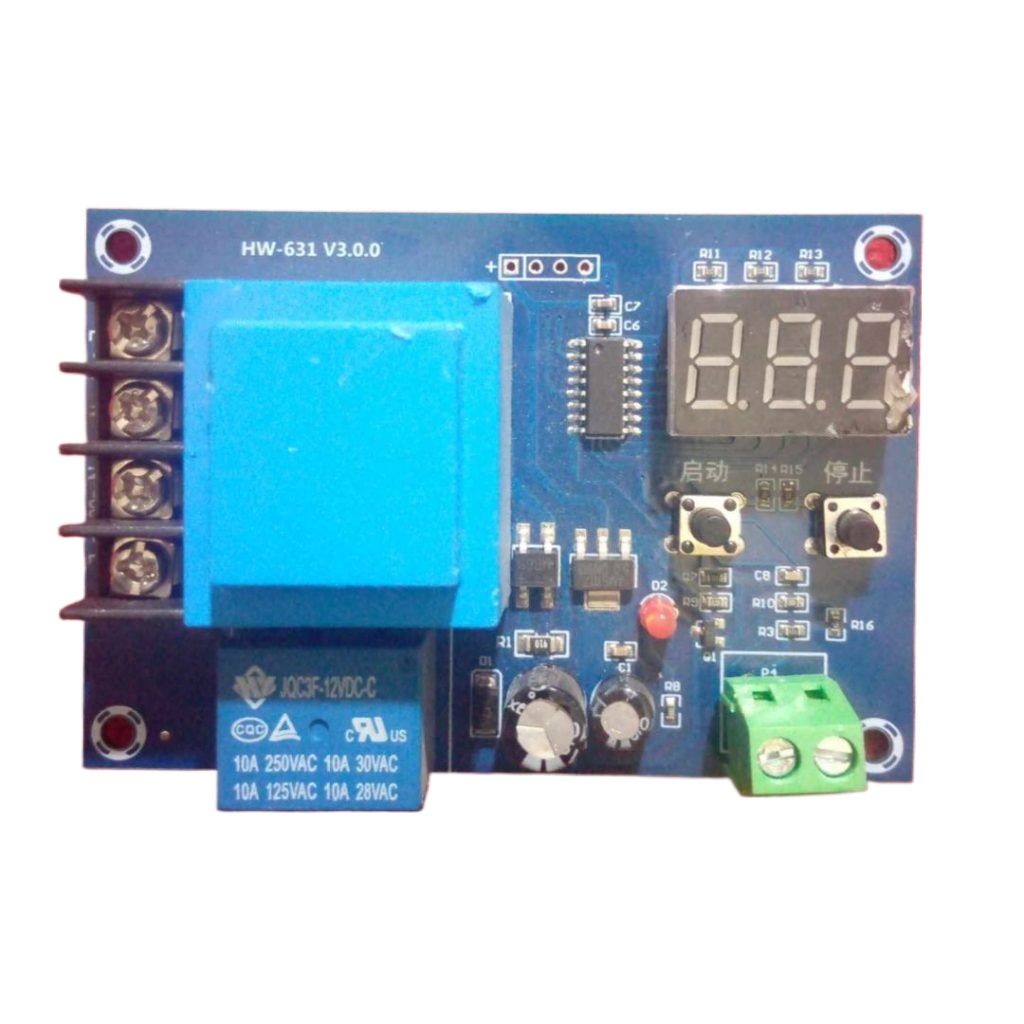

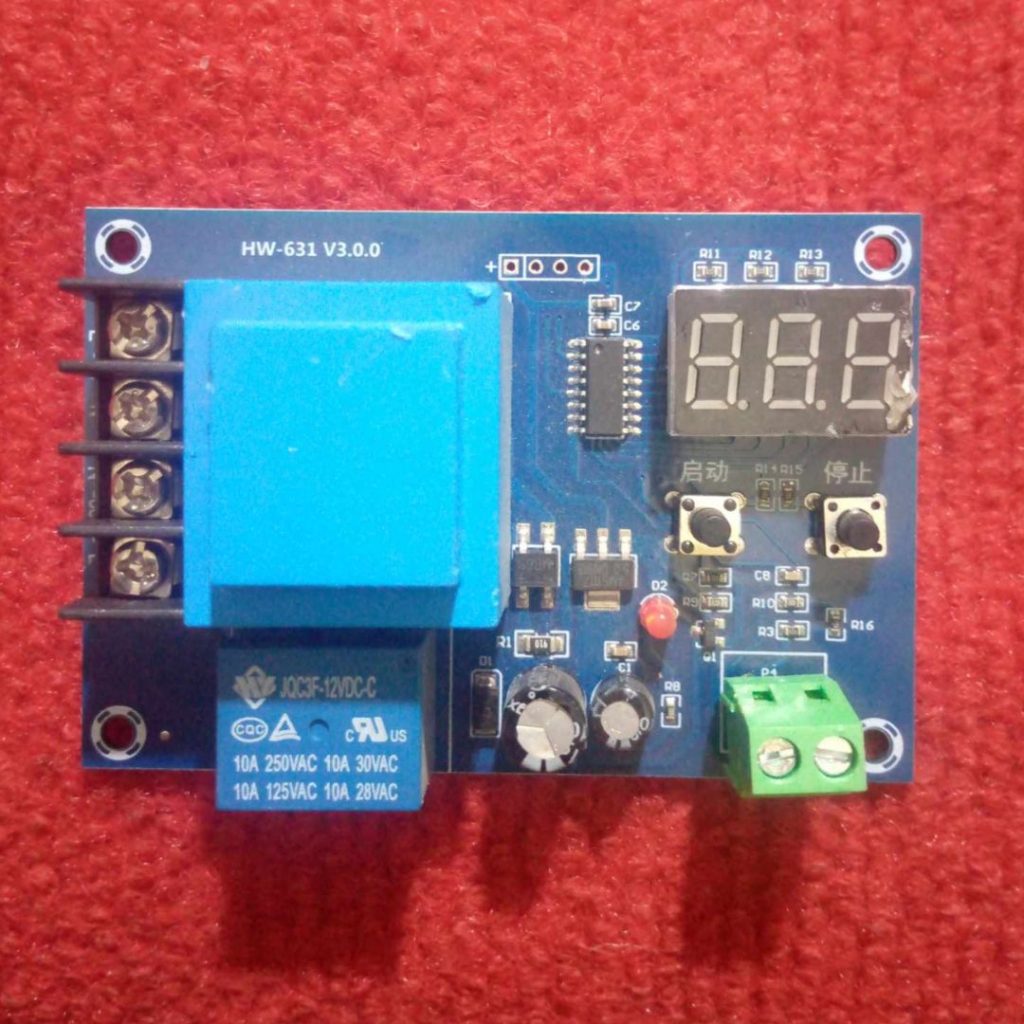

•  The board has a bright 3-digit display with 0.1 accuracy shows the setting value.

Specifications:

• Model: HW-631 / XH-M602 (Both Are Same )
• Condition: 100% Brand New
• Item Type: Protection Board
• Material: Printed Circuit Board
• Color: As Pictures Shown
• Input Voltage: 220 VAC
• Display Accuracy: 0.1 v
• Control Accuracy: 0.1 v
• Output Type: Output Switch
• Scope: 3.7V – 120V all lithium
• Voltage Error: + 0.1 v / -0.1 v
• Use: In the setting voltage value, start button play button raised, about stop button role to down key
• Item size:86 x 58 x 24mm
• Item weight:68g

Use: In the setting voltage value, start button play button raised, about stop button role to down key

• 1. Set the start voltage: Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
• 2. Set Stop voltage: Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
• 3. Setting Error: Energized state while holding down the start / stop button, digital display 888, which is the factory setting

Notes:

1. Due to the difference between different monitor, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to the manual measurement and different measurement methods, please allow 1-3cm deviation. Thanks
