HW-632 XH-M603 Battery Charger Control Module DC 12-24V Lithium Battery Charging Control Switch Protection Board Lead-Acid Battery XH M603

Description: HW632 XH-M603 Battery Charger Control Module DC 12-24V Lithium Battery Charging Control Switch Protection Board Lead-Acid Battery XH M603

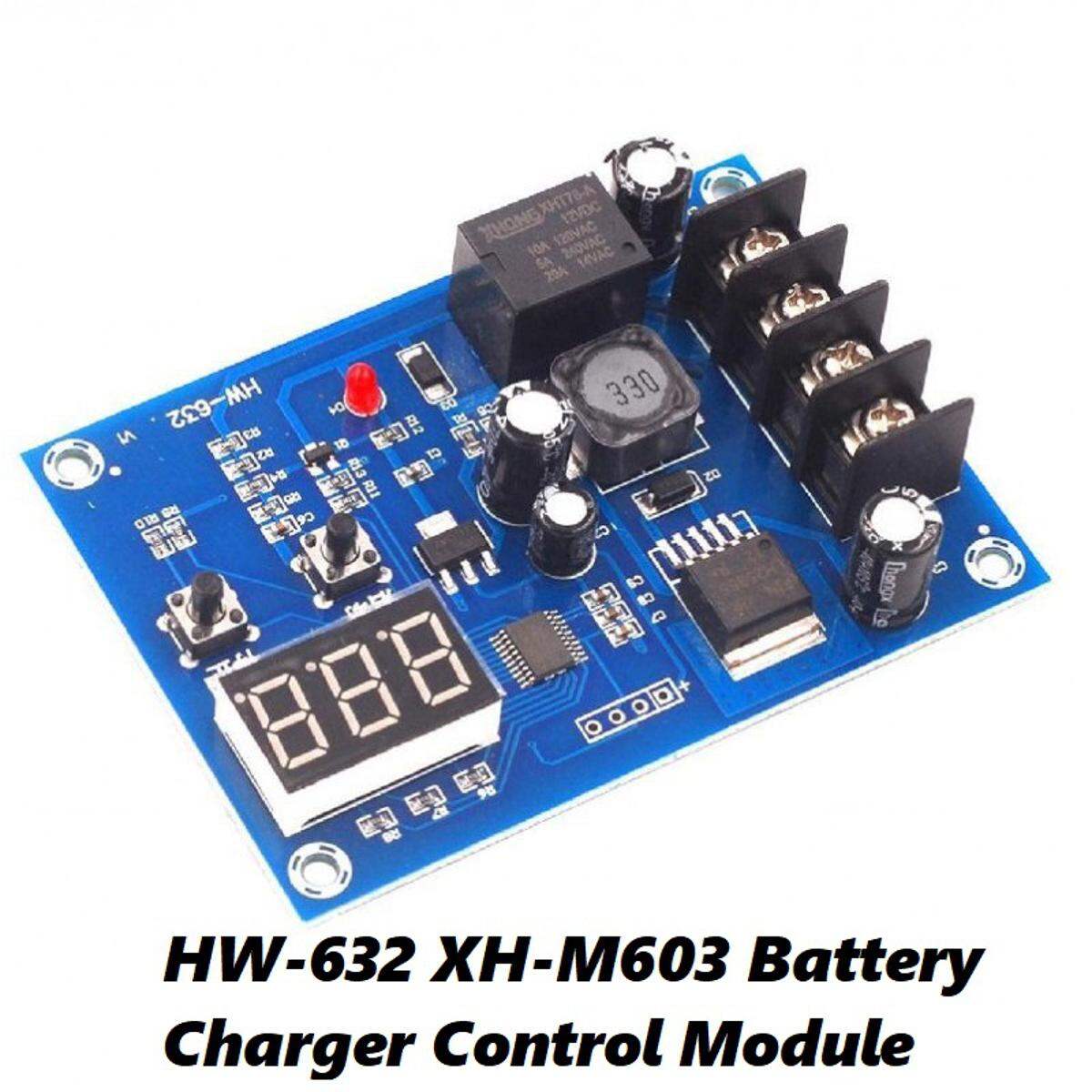

XH-M603 HW-632 Charging Control Module is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications.

Using method:

Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.

Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long-press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value.

Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings.

Note: This Product is available in two different variant(XH-M603 and Hw-632) with same working, we will ship it randomly.

Features:

Automatic control circuit connection

Automatic charging and power off

Real-time voltage monitor

Autosave setting

ST core chip

LM2596 switch voltage regulator

Specification:

Model:XH-M603Input Voltage: DC 10-30VDisplay Precision:0.1VControl Precision:0.1VOutput Type: direct outputVoltage Tolerance:+/-0.1VApplication Fields:12-24V storage batterySize;82*58*18mm

Application Fields:12-24V storage battery. It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydrid batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery

Package Include:

1 x HW632 XH-M603 Battery Charger Control Module DC 12-24V Lithium Battery Charging Control Switch Protection Board Lead-Acid Battery XH M603
