HW-685 0-20mA To 0-3.3V 5V 10V Insulation Current To Voltage Transmitter Signal Converter Module Adapters HW685

Category: Building Materials
SKU: UDBD05669
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 376
Tk 442
Tk 442
15% OFF
0 review(s)
  • Power supply voltage range: dc 7v 35 35v
  • output voltage signal:  3.3v, 5v, 10v
  • input current: 4-20ma
  • zero and full range can be adjusted (potentiometer adjustment).
  • with insulating properties, non-optical coupling insulation.
  • module size: 4.2 x 2.5cm

Call For Order : 09613-800800

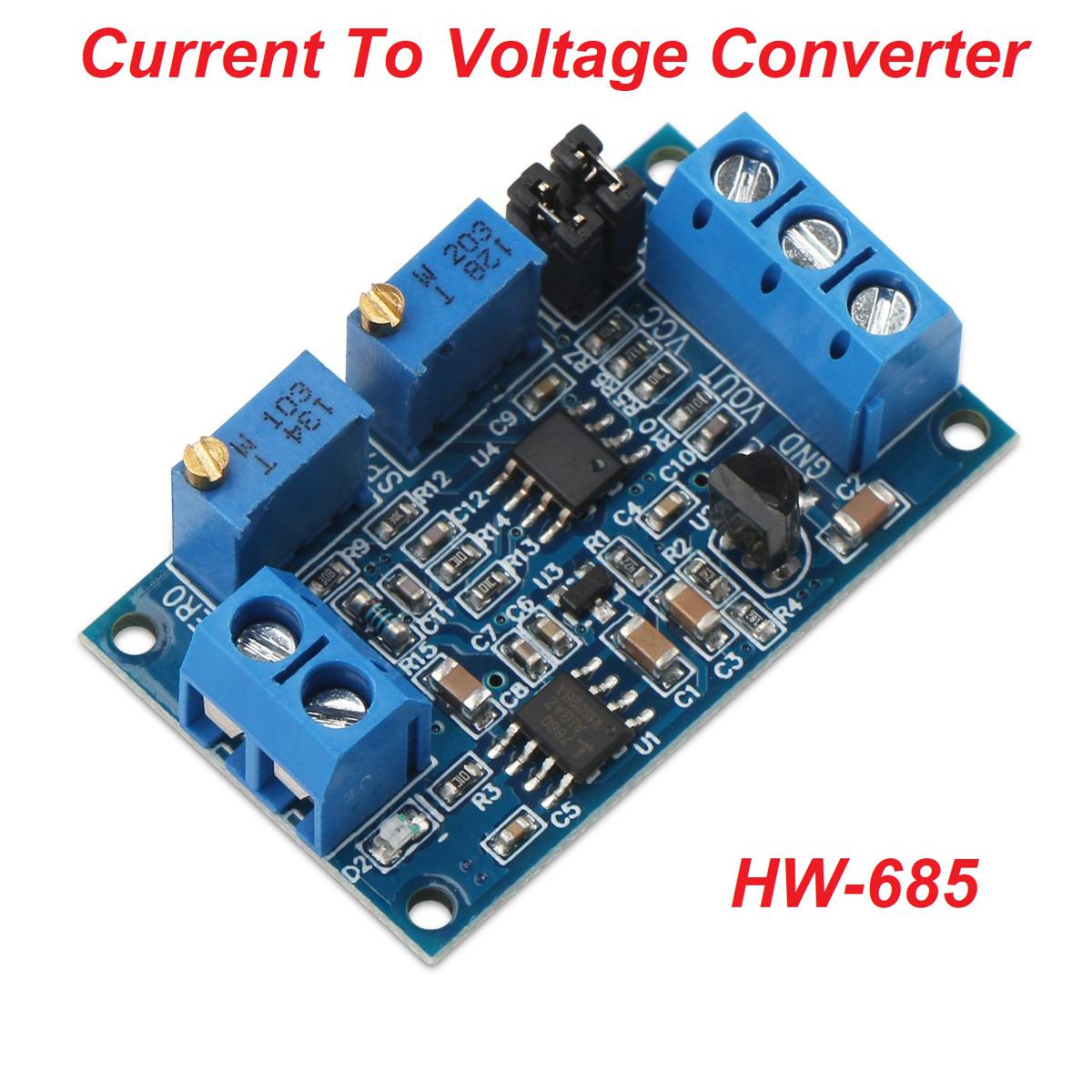

Description: HW-685 0-20mA To 0-3.3v 5v 10v Insulation Current To Voltage Transmitter Signal Converter Module Industrial HW 685

During signal transmission, the voltage signal gets weaker as the transmission distance increases. The transmission of current can avoid the attenuation of the signal. This voltage and current converter circuit is used at the end of the current signal transmission to convert the current signal into a voltage signal. 4-20mA current input and support voltage output 0-3.3V 0-5V 0-10V

Features:

  • Power supply voltage range: dc 7v 35 35v
  • output voltage signal: 3.3v, 5v, 10v
  • input current: 4-20ma
  • zero and full range can be adjusted (potentiometer adjustment).
  • with insulating properties, non-optical coupling insulation.
  • module size: 4.2 x 2.5cm

Specification:

  • Wide supply voltage range, output voltage support multiple devices
  • Can be adjusted
  • High stability

User manual:

  • Power supply voltage 7-36V (if output to 10V, supply voltage must be greater than 12V)
  • After power on, indicator D2 will be on, otherwise check the line connection.With reverse protection, reverse does not burn
  • When the input current is minimal (0mA or 4mA), adjust the ZERO potentiometer so that the output VOUT is minimal (0.0V or other voltage)
  • When input current is at maximum (20mA), adjust SPAN potentiometer so that VOUT output is maximum (3.3V or 5V or 10V, output can be as low as 2.5V when input is 4- 20ma)

Notes:

There may be slight size deviations due to manual measurement, different measuring methods and tools. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

Package Include:

  • 1 x HW-685 0-20mA To 0-3.3v 5v 10v Insulation Current To Voltage Transmitter Signal Converter Module Industrial HW 685





  • Power supply voltage range: dc 7v 35 35v
  • output voltage signal:  3.3v, 5v, 10v
  • input current: 4-20ma
  • zero and full range can be adjusted (potentiometer adjustment).
  • with insulating properties, non-optical coupling insulation.
  • module size: 4.2 x 2.5cm
