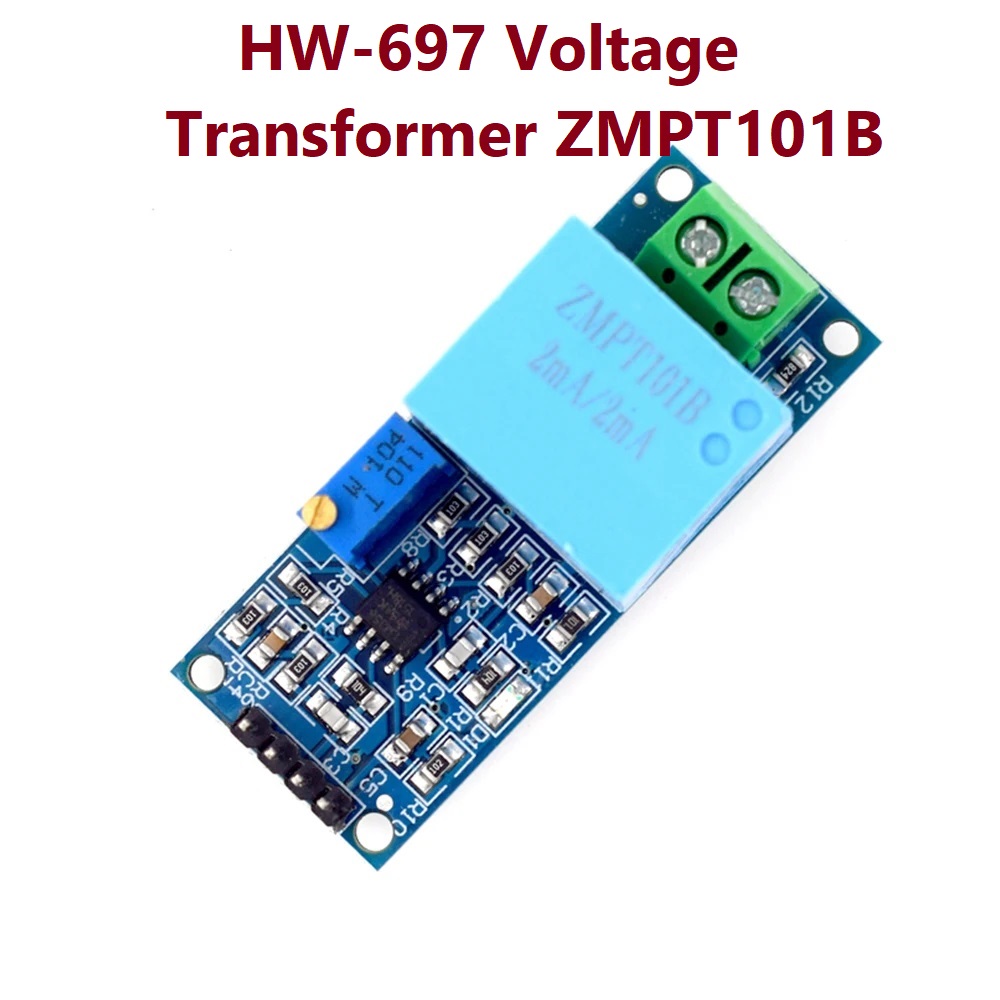

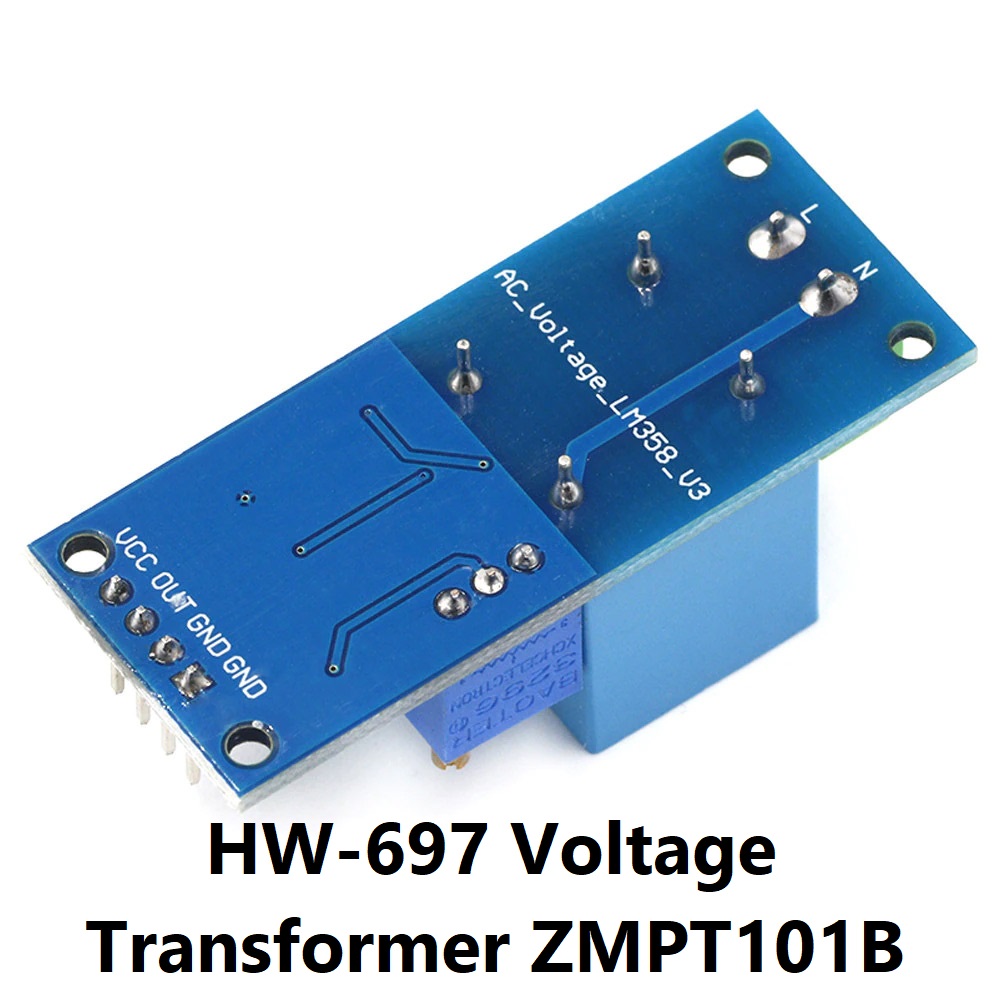

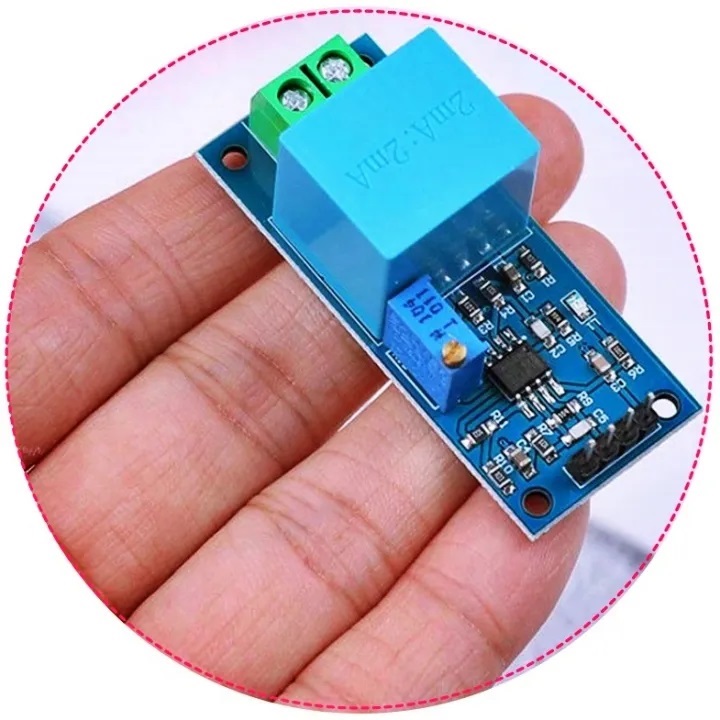

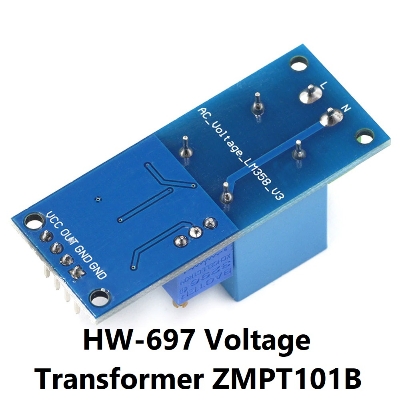

Description: HW-697 Voltage Transformer ZMPT101B

HW-697 Voltage Transformer ZMPT101B Active Output AC Voltage Sensor Board 5-30V Output Voltage Sensor Signal Acquisition Board For Household Appliances

1.Contactless Measurement: Ensure safety and convenience with this ZMPT101B active voltage transformer module, featuring non-contact measurement principles that eliminate the need for direct contact with the circuit being measured. 2.High Precision Measurements: Experience high-precision voltage measurements with this AC output voltage sensor that offers accurate and stable voltage signal output within its operational range. 3.Low Power Consumption: With low operating current, this mutual inductance amplifier conserves energy and is suitable for applications requiring long-term operation. 4.Excellent Linearity: Profit from the outstanding linearity of this active output AC voltage sensor board, which enables accurate correlation between voltage inputs and output signals. 5.Wide Range of Applications: Find versatile applications in areas such as power monitoring, electricity metering, voltage detection, smart homes, and more. This AC voltage transformer module fulfills various voltage measurement requirements efficiently.

• HW-697 Voltage Transformer Module Single Phase AC Active Output Voltage Sensor Module ZMPT101B Sensor
• HW-697 Voltage Sensor Module ZMPT101B Single Phase AC Active Output Voltage Compact Transformer 5V-30V Suitable For Arduino Adjustable
• ZMPT101B AC Voltage Sensor Module HW-697 Sensor Module Voltage Transformer 5V-30V Module
• Voltage Transformer Module Single Phase AC Active Output Sensor ZMPT101B HW-697 5V-30V Module
• ZMPT101B Active Output AC Voltage Sensor Board 5-30V Output Voltage Sensor Signal Acquisition Board For Household Appliances
• HW-697 Module Temperature Single Bus Digital Temperature And Humidity Sensor Module Electronic Blocks HW-697 ZMPT101B Voltage Transformer Module
• HW-697 Voltage Transformer Module Single Phase AC Active Output ZMPT101B Voltage Sensor Module Sensor 5-30V Output
• HW-697 Active Output AC Voltage Sensor Board 5-30V Output ZMPT101B Voltage Sensor Signal Acquisition Board Voltage Transformer HW-697 Module

Features:

• On-board High Precision Operating and Discharging Circuit of Voltage Transformer Precision Sampling and Proper Compensation of Signal.
• Analog voltage output: the module can measure AC voltage in 250V and the output analog quantity can be adjusted.
• The analog voltage output ‘module can measure AC voltage within 250 and the output analog quantity can be adjusted.
• Power supply voltage 5-30V.
• Material: alloy
• Size: 50.5*20*21.5mm
• Color: blue
• Easy to use

Specifications:

• Origin: China
• Type: Module
• Condition: New
• Voltage Transformer: On-Board Precision Miniature Voltage Transformer
• Op Amp Circuit: On-Board High-Precision Op Amp Circuit For Accurate Signal Sampling And Appropriate Compensation And Other Functions.
• Analog Voltage Output: The Module Can Measure AC Voltage Within 250V, And The Corresponding Output Analog Can Be Adjusted.
• Output Signal: The Output Signal Is Sinusoidal, And The Middle Value Of The Waveform (Dc Component) Is 1/2VCC.
• Supply Voltage: 5-30V
• Product Size: 51.00×20.00×20.00mm/2.01×0.79×0.79inch

• Origin: China
• Type: Module
• Condition: New
• Voltage Transformer: On-Board Precision Miniature Voltage Transformer
• Op Amp Circuit: On-Board High-Precision Op Amp Circuit For Accurate Signal Sampling And Appropriate Compensation And Other Functions.
• Analog Voltage Output: The Module Can Measure AC Voltage Within 250V, And The Corresponding Output Analog Can Be Adjusted.
• Output Signal: The Output Signal Is Sinusoidal, And The Middle Value Of The Waveform (Dc Component) Is 1/2VCC.
• Supply Voltage: 5-30V
• Product Size: 51.00×20.00×20.00mm/2.01×0.79×0.79inch
