Product Description Our high-performance industrial indicator lights are designed to provide clear and reliable status signaling for various industrial and commercial applications. These lights feature durable construction, ensuring long-lasting performance even in harsh environments. Available in multiple colors and voltage ratings (12V-24V and 24V-220V), these indicator lights are perfect for machinery, control panels, automation systems, and other electrical installations. With their easy installation and maintenance, our industrial indicator lights offer an efficient and user-friendly solution for all your signaling needs.

Specifications Model: Industrial Indicator Light

Voltage Ratings: 12V-24V and 24V-220V

Light Source: LED

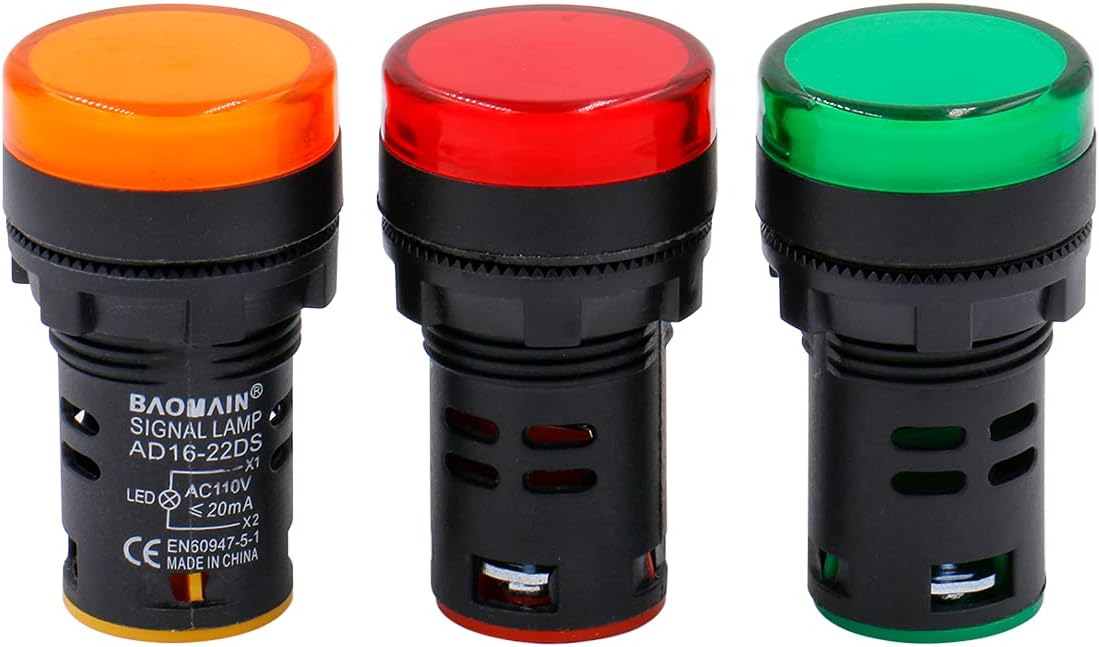

Colors: Red, Green, Yellow, Blue, White

Mounting Hole Diameter: 22 mm

Lens Material: Polycarbonate

Base Material: Flame-retardant ABS

Mounting Type: Panel mount

Terminal Type: Screw terminals

Rated Current:

12V-24V Version: 20mA

220V Version: 5mA

Luminous Intensity:

Red: 20mcd (12V-24V), 15mcd (24V-220V)

Green: 30mcd (12V-24V), 25mcd (24V-220V)

Yellow: 25mcd (12V-24V), 20mcd (24V-220V)

Operating Temperature: -25°C to +55°C (Ice-free)

Operating Humidity: 45% to 85% RH

Insulation Resistance: ≥100 MΩ

Dielectric Strength: 1890 VAC, 50/60 Hz for 1 minute

Vibration Resistance: 50 Hz, amplitude 1.0 mm

Shock Resistance: 1,000 m/s² (Destruction), 200 m/s² (Malfunction)

IP Rating: IP65

Dimensions:

Diameter: 22 mm (mounting hole)

Height: 30 mm

Depth: 45 mm

Weight: Approx. 20 g

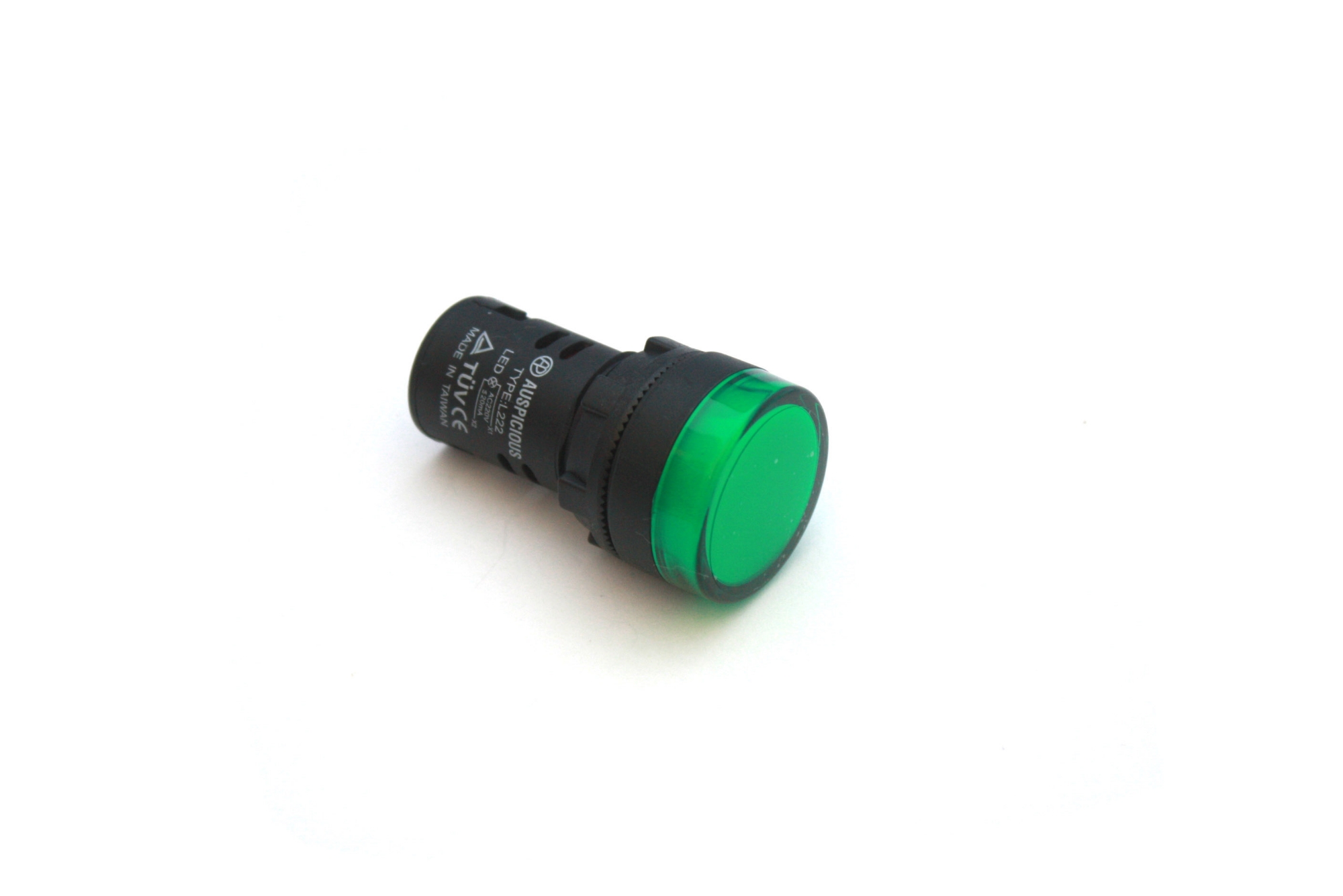

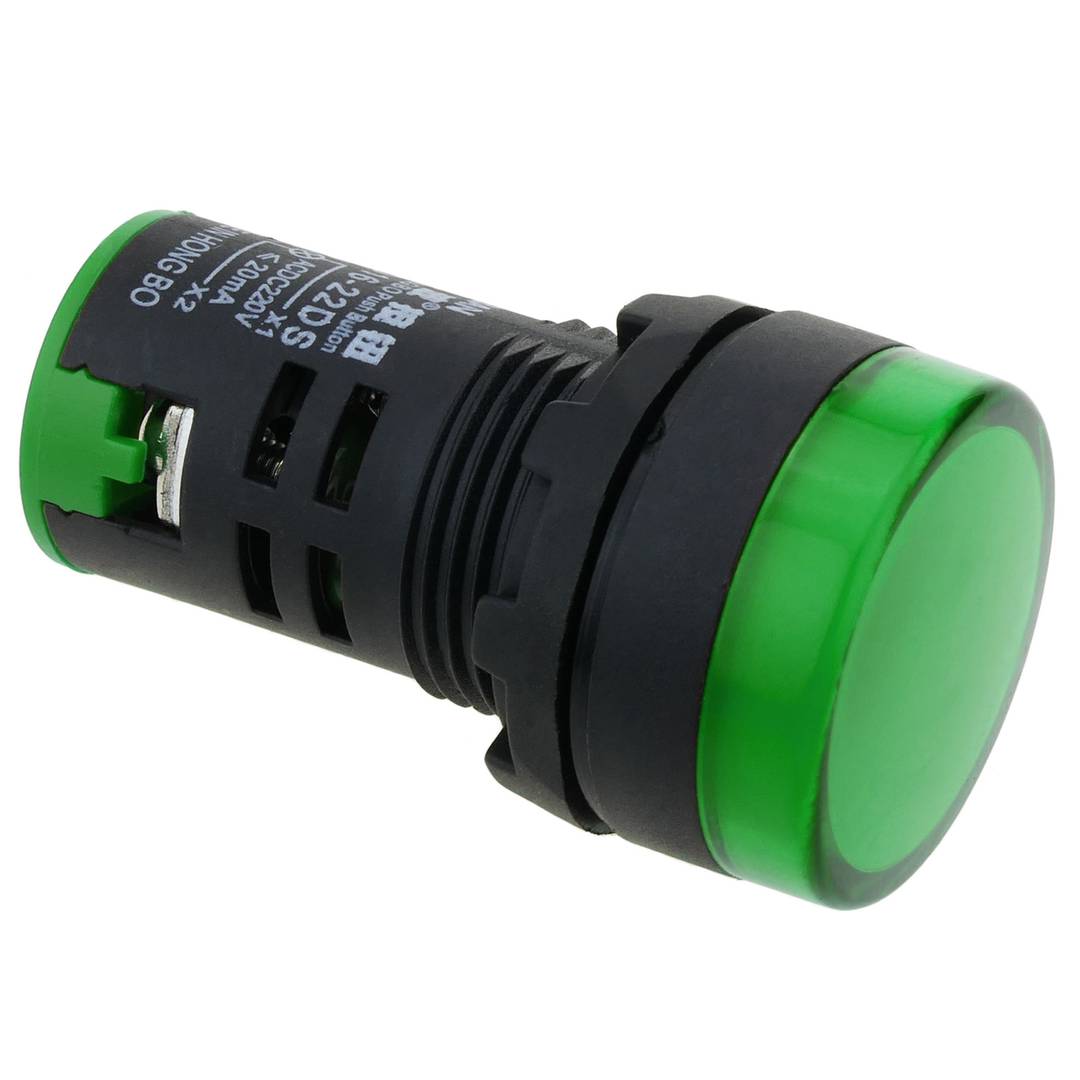

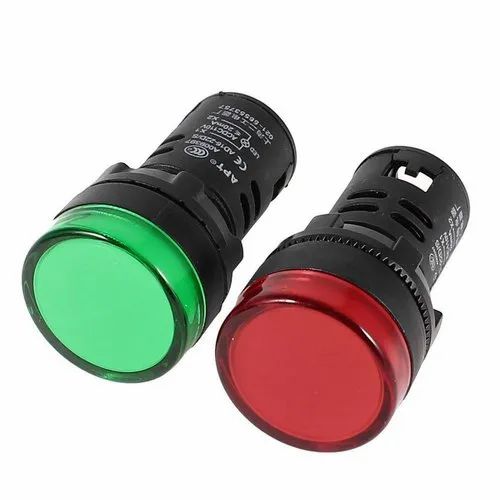

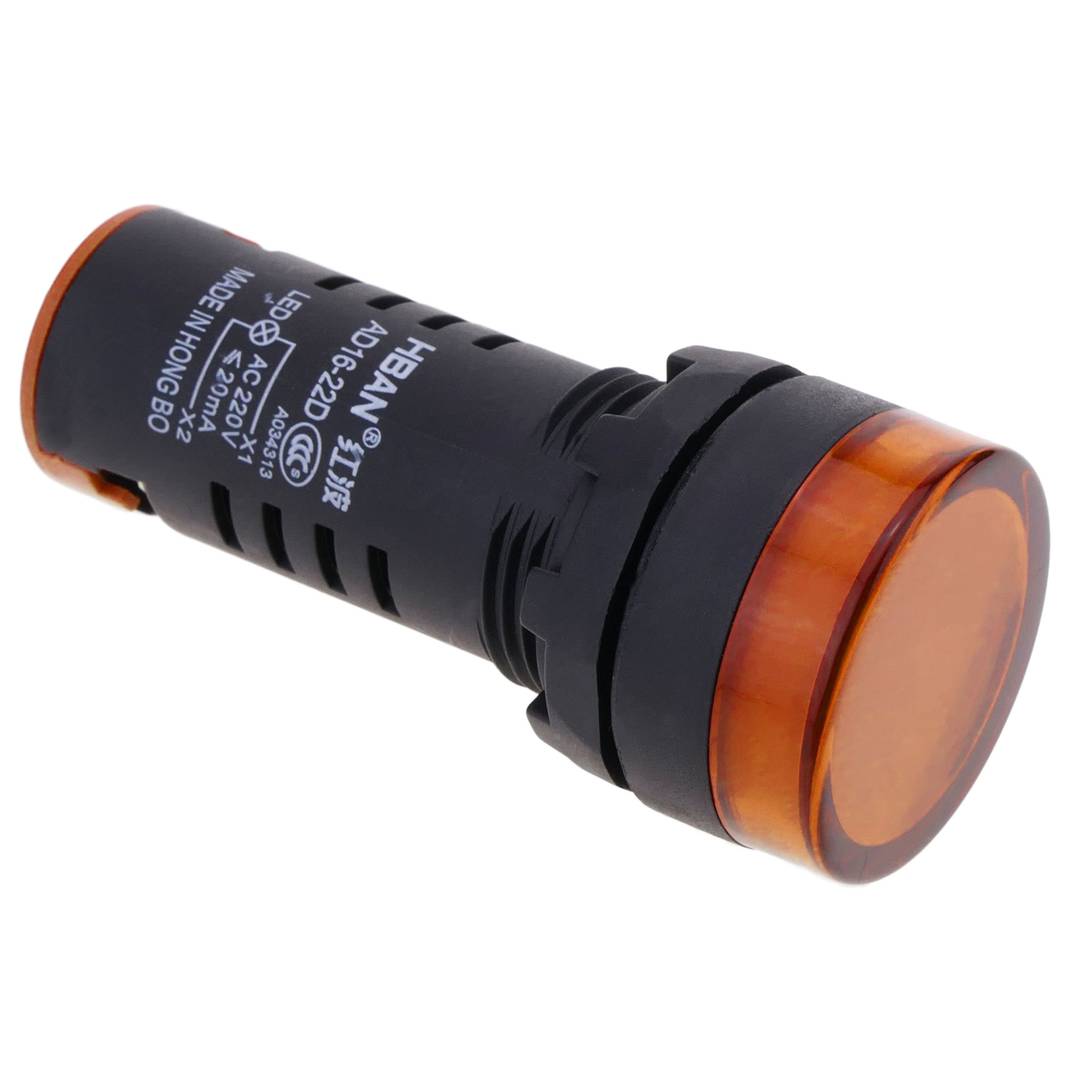

Industrial Indicator Light JiGoIndia with 22mm Mounting Hole – LED, Waterproof, Signal, Pilot Lamp for Machinery and Control Panels
