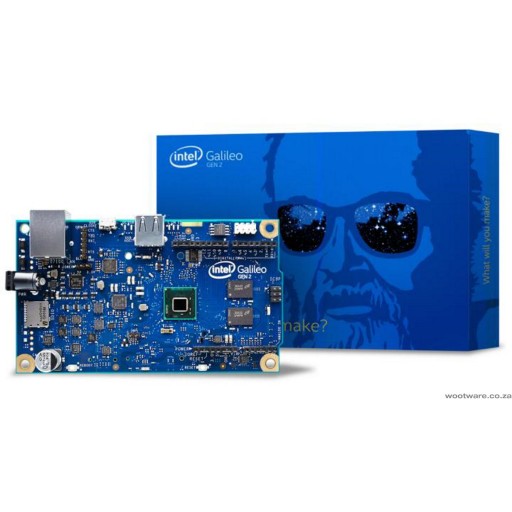

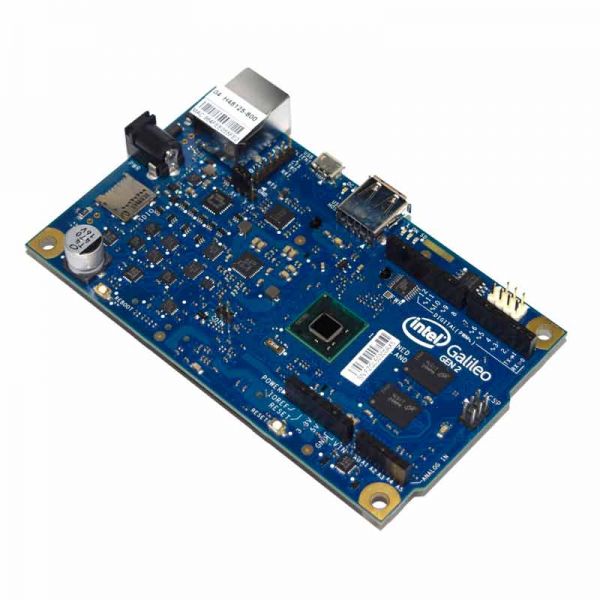

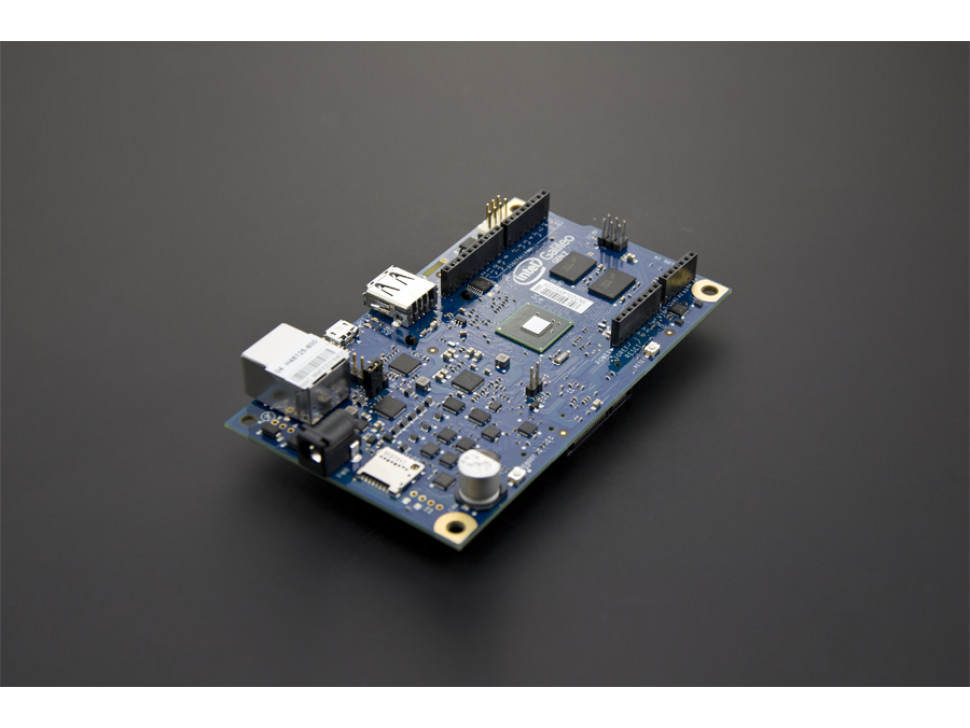

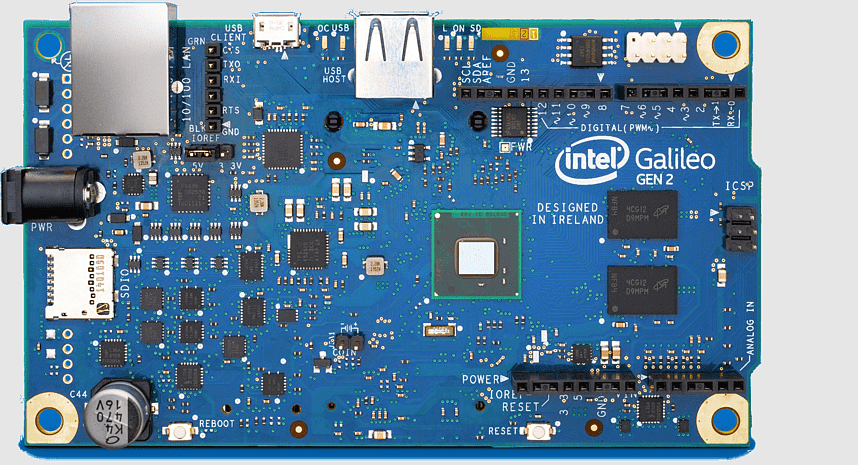

Intel Galileo Development Board(Blue)

FEATURES

• x86 CPU
• Arduino Uno Rev3 Shield pin compatible
• USB host
• Mini PCI-express port
• Micro SD card supported
• Many Arduino Shields are compatible without migrate


SPECIFICATION
• Intel Quark SoC X1000 Application Processor. 400MHz, 32-bit Pentium class
• 16 KBytes on-die L1 cache
• 512 KBytes of on-die embedded SRAM
• Simple to program: Single thread, single core, constant speed
• ACPI compatible CPU sleep states supported
• An integrated Real Time Clock (RTC), with an optional 3V coin cell battery for operation between turn on cycles.
• 256MB DDR3 DRAM
• PSoC (programmable system on chip) from Cypress, I2C-controlled I/O expander chip
• 10/100 mbit/s Ethernet connector
• USB 2.0 Host connector
• USB 2.0 Client connector
• 8MB Flash
• 10-pin Standard JTAG header for debugging
• I2C, SPI, UART, ICSP be supported

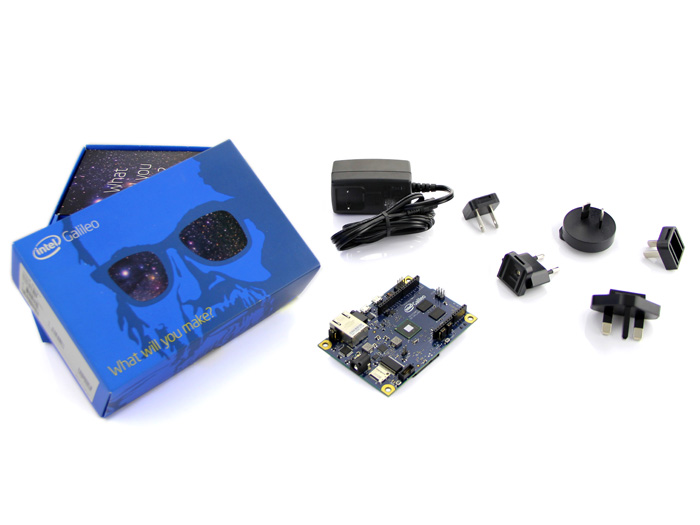

PART LIST
• Intel Galileo main board x1
• Power plug, has 5 adapters for different standards. x1


DOCUMENTS
• Galileo Getting Started (pdf)
• Galileo Datasheet (pdf)
• Galileo FAQ
• Galileo Supported Shield list (pdf, update 2013/10/10)
• Galileo I/O Mapping (pdf)
• Galileo Schematic (pdf)
• Details of Galileo board

SOFTWARE
• Linux IMAGE
• Board Support Package(BSP) sources for Intel Quark
• Arduino IDE for Galileo
