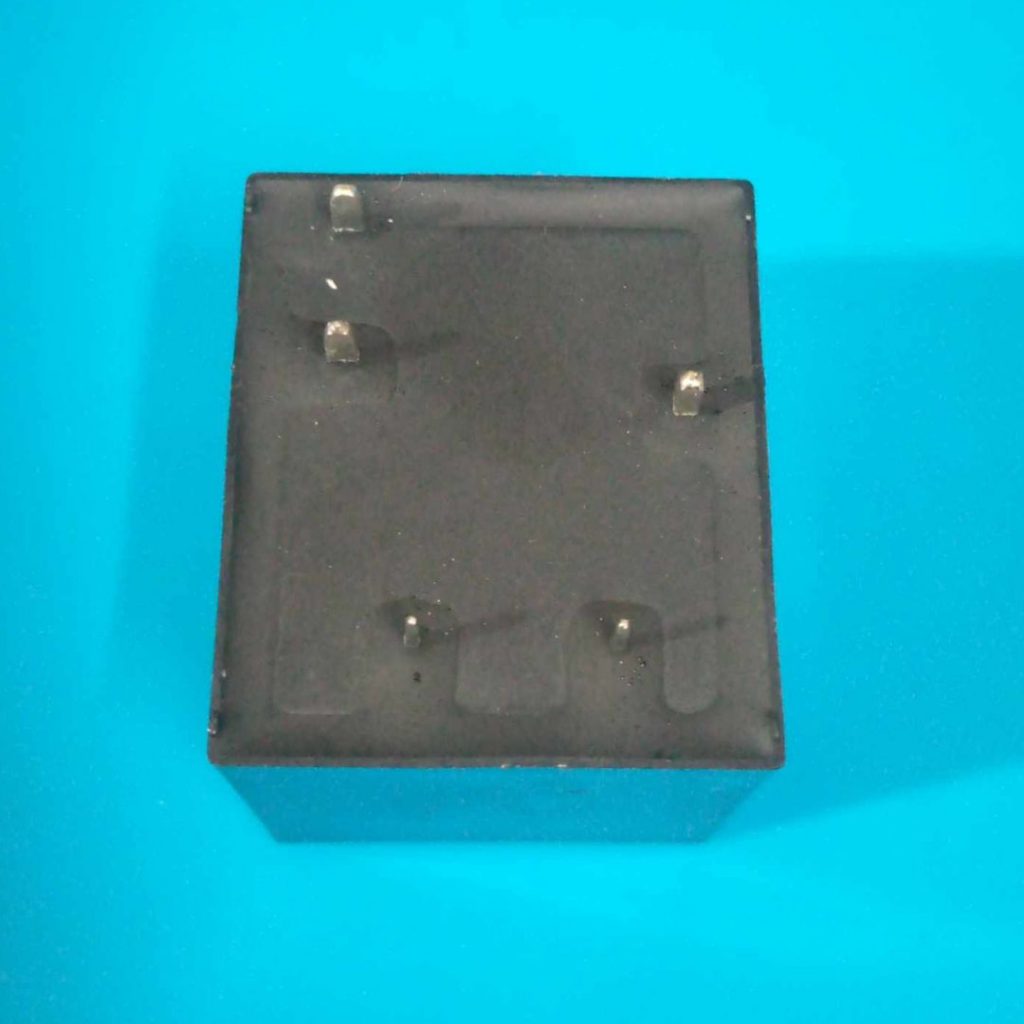

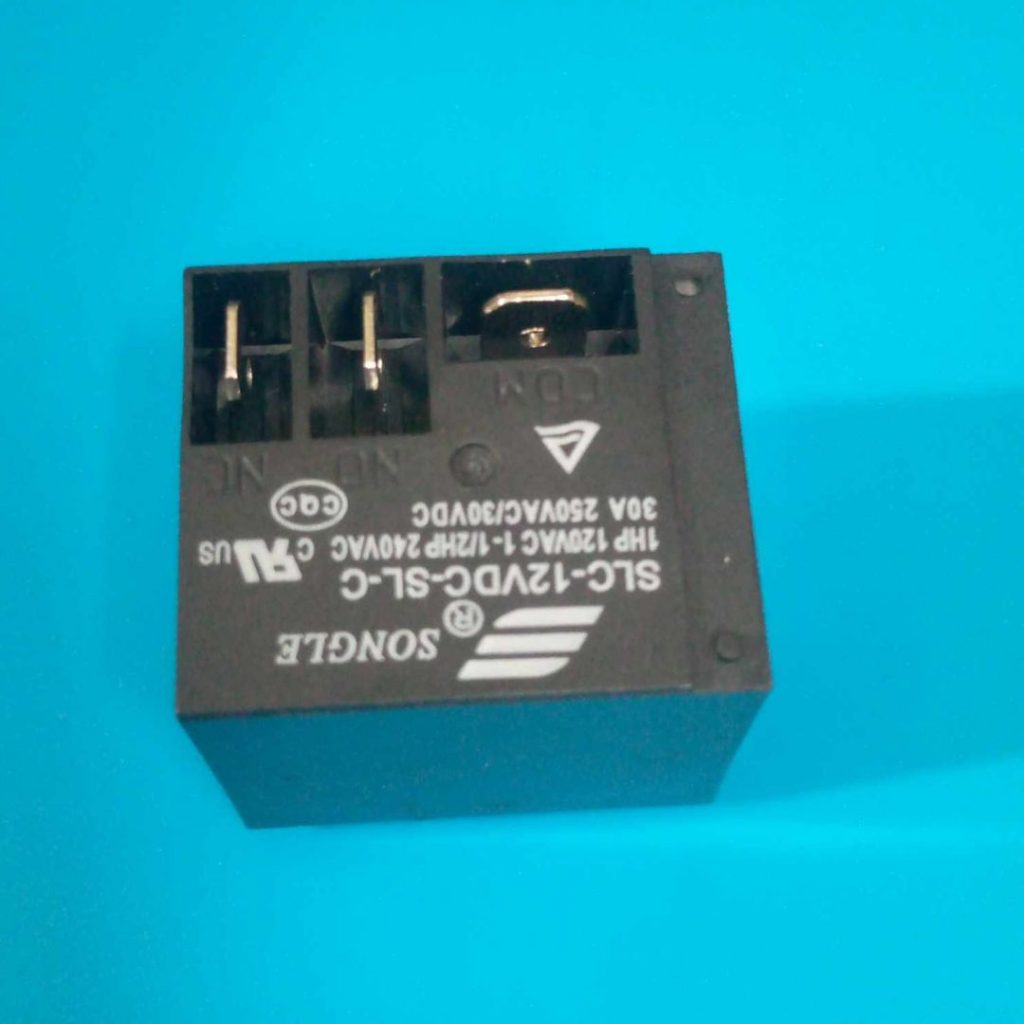

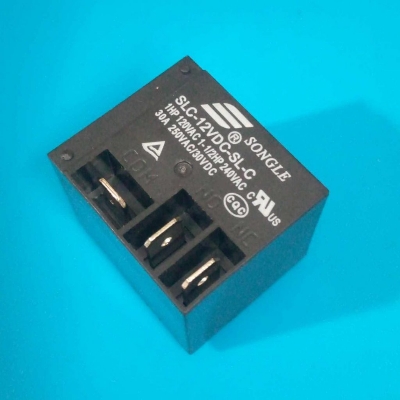

Description: IPS Relay 12V SONGLE Relay

IPS Relay 12V SONGLE Relay DC 12V 30A 250VAC 5 Pin Coil SPDT Power Relay SLC-12VDC-SL-C PCB Mount Power Relays Switches DC 12V IPS Relay Switches Black 12V Relay

This relay can be used to switch High power (whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.

Features:

• We send all goods are available tracking no.
• If you have any questions, pls feel free to contact us, we would be happy to help you anytime.
• Songle power relays with a coil rated voltage of 12V DC and SPDT contacts with a 30A rating.
• The relays have 6 pins and are very good quality with a long operational life. Compact and sealed construction.
• It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching.
• It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors.
• Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc.

Specification:

• Product Name Power Relay
• Usage: IPS/UPS
• Model: SLC-12VDC-SL-A
• Material: Plastic
• Contact Capacity 30A 250V AC/ 30A 30VDC
• Coil rated voltage: 24V DC
• Max Switching Current: 30A
• Number of Pins: 5 Pin
• SPDT Contacts
• Size (Approx.) 2.5x 2.5 x 3cm
• Color Black
• Weight 20g

• Product Name Power Relay
• Usage: IPS/UPS
• Model: SLC-12VDC-SL-A
• Material: Plastic
• Contact Capacity 30A 250V AC/ 30A 30VDC
• Coil rated voltage: 24V DC
• Max Switching Current: 30A
• Number of Pins: 5 Pin
• SPDT Contacts
• Size (Approx.) 2.5x 2.5 x 3cm
• Color Black
