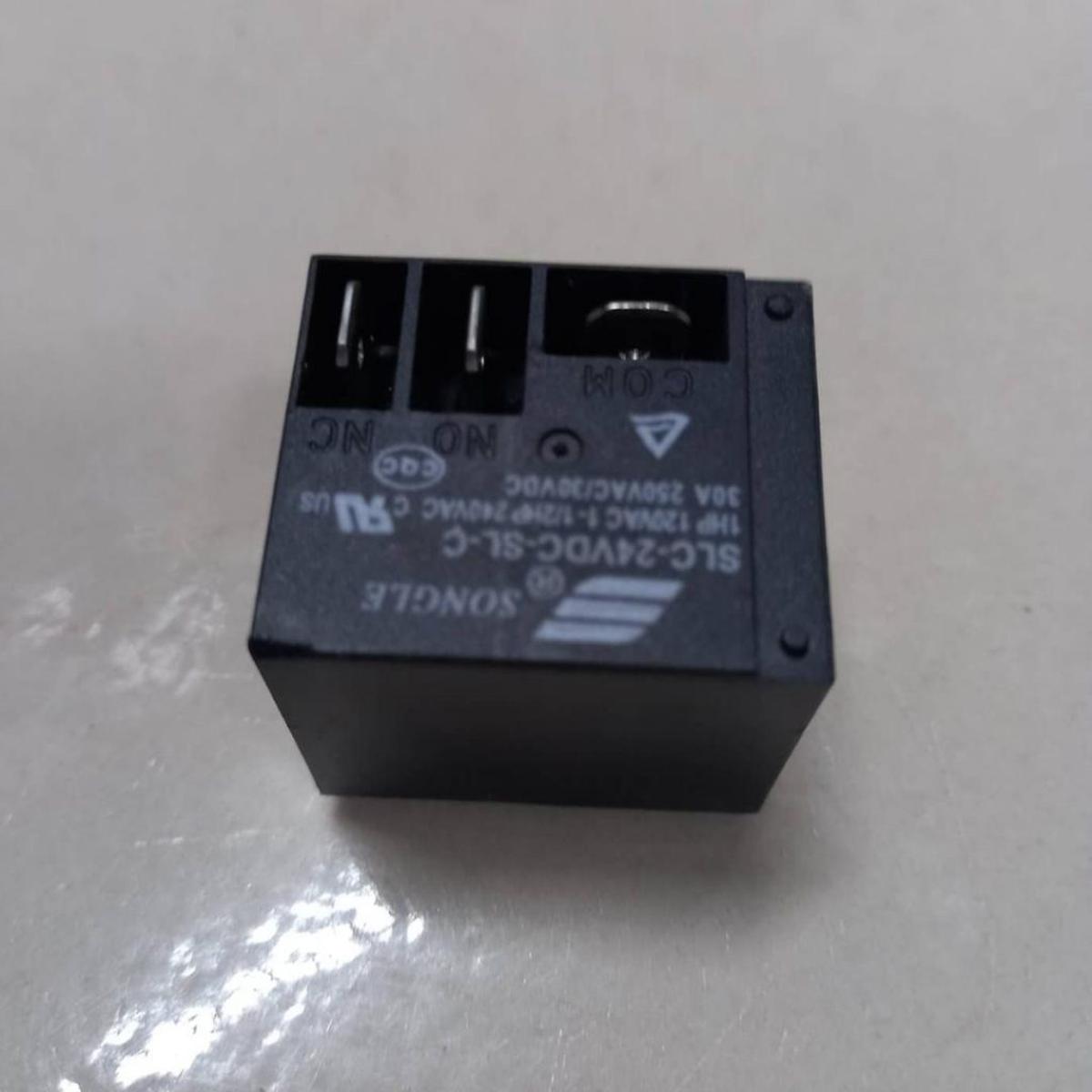

Description: IPS SONGLE Relay DC-24V DC24V 30A 250VAC 5 Pin Coil SPDT Power Relay SLC-24VDC-SL-A
IPS Relay 24V SONGLE Relay DC-24V DC24V 30A 250VAC 5 Pin Coil SPDT Power Relay SLC-24VDC-SL-A PCB Mount T91 Power Relays Switches DC 24V Relay

This relay can be used to switch High power (whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.
Features:
We send all goods are available tracking no.
If you have any questions, pls feel free to contact us, we would be happy to help you anytime.
Songle power relays with a coil rated voltage of 12V DC and SPDT contacts with a 30A rating.
The relays have 6 pins and are very good quality with a long operational life. Compact and sealed construction.
It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching.
It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors.
Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc.
Specification:
Product Name Power Relay
Usage: IPS/UPS
Model: SLC-24VDC-SL-A
Material: Plastic
Contact Capacity 30A 250V AC/ 30A 30VDC
Coil rated voltage: 24V DC
Max Switching Current: 30A
Number of Pins: 5 Pin
SPDT Contacts
Size (Approx.) 2.5x 2.5 x 3cm
Color Black
Weight 20g

• Product Name Power Relay
• Usage: IPS/UPS
• Model: SLC-24VDC-SL-A
• Material: Plastic
• Contact Capacity 30A 250V AC/ 30A 30VDC
• Coil rated voltage: 24V DC
• Max Switching Current: 30A
• Number of Pins: 5 Pin
• SPDT Contacts
• Size (Approx.) 2.5x 2.5 x 3cm
• Color Black
• Weight 20g
