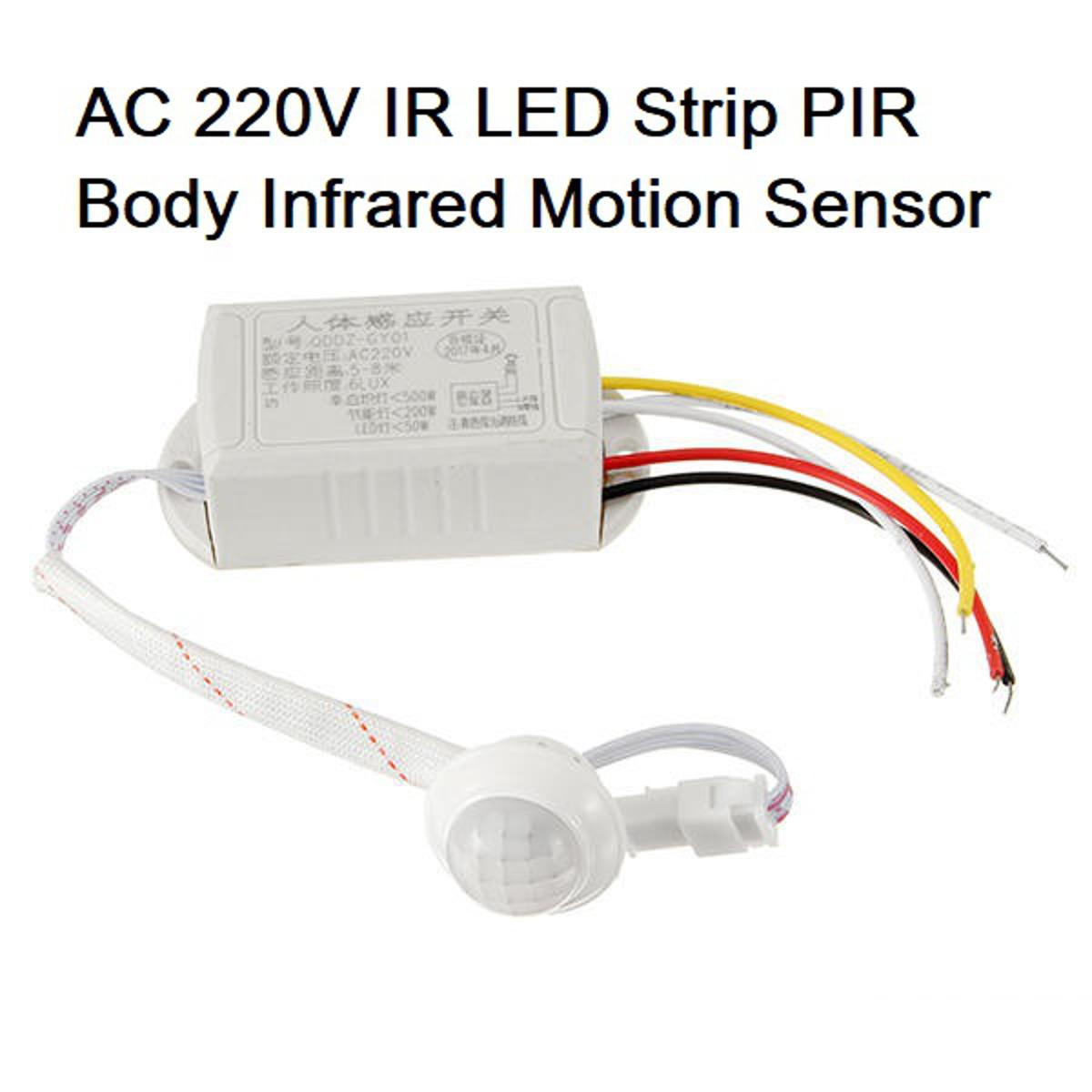

Description: AC 220V IR LED Strip PIR Body Infrared Motion Sensor Switch Automatic Light Switch

IR LED STRIP AC 220V 3-4 Meter PIR Body Infrared Motion Sensor Switches Automatic Light Human Body PIR Infrared Motion Movement Detector Intelligent Lamps Controller Switch

Features:

Sensitive control, not the next day or light sensors, at night or in low light senses.

Automatic delay - After the switch is turned on, if a person within the scope of activities of the sensing switch has been

turned on; if people leave the sensor range stated last time before leaving as a reference point, the start delay.

By adjusting the delay time of the switch resistance set the time. Usually about 20 seconds - 40 seconds

Easy to install or replace existing switch.

Specification:

Automatic body ir sensor light switch time delay

Measuring distance: 3-4 meters

Light control induction: 6lux (ir induction)

Operating voltage: AC220V

Detection angle: 120 degrees

Delay time: 30s

Sensor type: light control. (the motion sensor works in dark night only.)

Power: < 200watts (energy saving lamp), <500watts (light bulb)

Application: stairs of various buildings bathroom, aisle, corridor, garage, balcony

Wire installations:

red wire- L wire

black wire- N wire

2 white wire -output wires

yellow wire- fire wire

• Automatic body ir sensor light switch time delay
• Measuring distance: 3-4 meters
• Light control induction: 6lux (ir induction)
• Operating voltage: AC220V
• Detection angle: 120 degrees
• Delay time: 30s
• Sensor type: light control. (the motion sensor works in dark night only.)
• Power: < 200watts (energy saving lamp), <500watts (light bulb)
• Application: stairs of various buildings bathroom, aisle, corridor, garage, balcony
