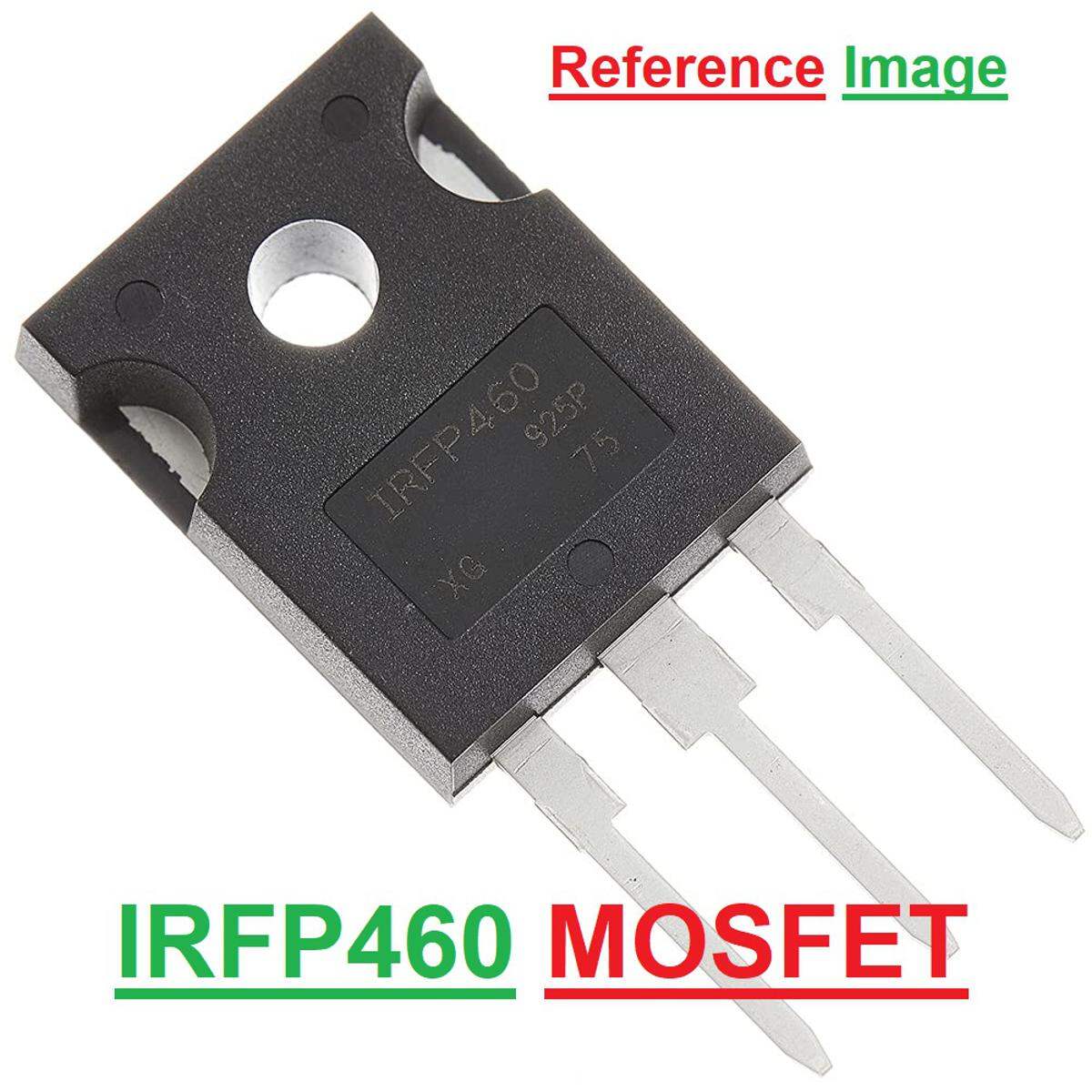

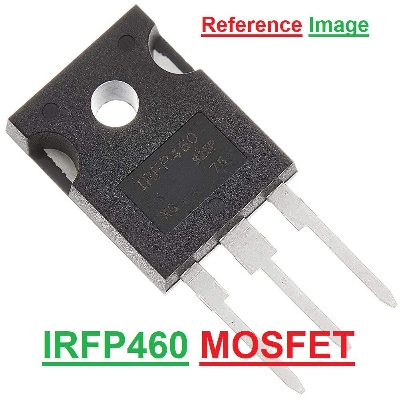

IRFP460 MOSFET N-Channel Power Transistor 500V 20A TO-247 Electrical Circuitry & Parts

Description: IRFP460 MOSFET N-Channel Power Transistor 500V 20A TO-247

IRFP460 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features:

• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Isolated Central Mounting Hole
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Continuous Drain Current Id:20A
• Drain Source Voltage Vds:500V
• On Resistance Rds(on):0.27ohm
• Rds(on) Test Voltage Vgs:10V
• Threshold Voltage Vgs:4V
• Power Dissipation Pd:280W
• Minimum Operating Temperature:-55 °C
• Maximum Operating Temperature:+150 °C

Package Include:

• 1 x IRFP460 MOSFET N-Channel Power Transistor 500V 20A TO-247
