Description: JSN-SR04T Waterproof Integrated Distance Measuring Transducer Sensor

• With a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc
• Working voltage:5V, Static current:5mA, Working current: 40mA
• Working range: 25cm-4M, Working frequency: 40KHZ, Detecting angle: 70 degree
• Application: Horizontal distance messurement,Obstacle avoidance, automatic control, Traffic control, Security, industrial control

Features:

1.Small size, easy to use

2.Low voltage, low power consumption

3.High accuracy

4.Strong anti-jamming

5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Electrical properties:

1.Electrical parameters: JSN-SR04T

2.Operating voltage: DC 5V

3.Quiescent current: 5mA

4.Total current work: 30mA

5.Acoustic emission frequency: 40khz

6.Farthest distance: 4.5m

7.Blind: 25cm

8.Wiring:

+ 5V (positive power supply)

Trig (control side) RX

Echo (the receiver) TX

GND (negative)

9.Resolution: about 0.5cm

10.Angle: less than 50 degrees

11.Working temperature: -10 ~ 70 Celsuis

12.Storage temperature: -20 ~ 80 Celsuis

Application:

1.Horizontal distance;

2.Obstacle avoidance, automatic control;

3.The object approaches, there is a perceived

4.Traffic control;

5.Security, industrial control;

6.Artificial intelligence, and research

The basic working principle:

(1) using IO port TRIG trigger location, to the high level signal of at least 10us;

(2) module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return;

(3) a signal return, a high level is output through the IO port ECHO, the time duration of the high level is ultrasonic from launch to return. The test distance = (high level time * speed of sound (340M/S)) /2;

This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the timer, when this port is low can read the timer value,this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile.

Package Include:

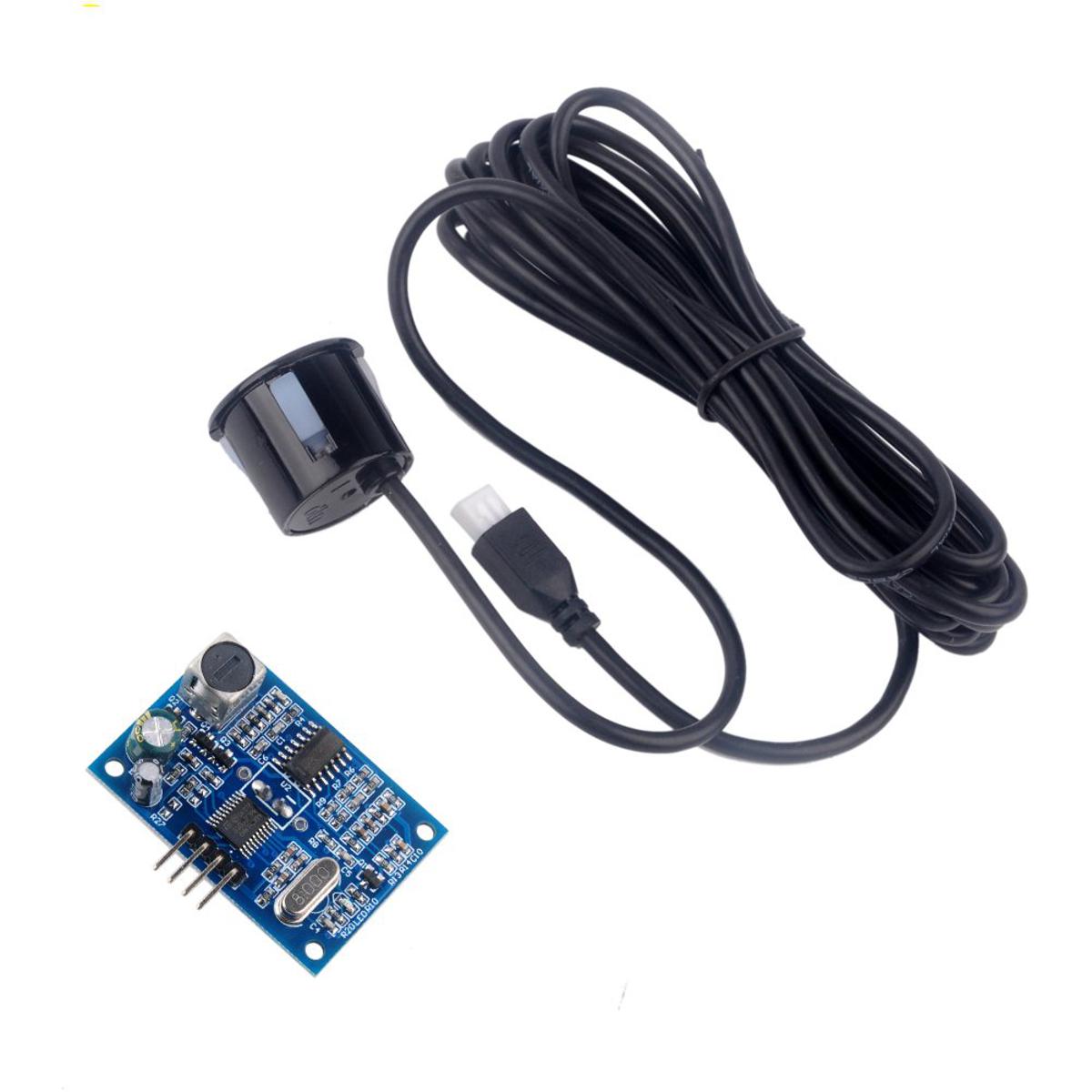

1 x JSN-SR04T Waterproof Integrated Distance Measuring Transducer Sensor

• Operating voltage: DC 3.0 ~ 5.5V
• Operating current: less than 8mA
• Probe frequency: 40 kHz
• Long range: 600 cm
• Close range: 20 cm
• Distance accuracy: + -1 cm
• Measuring angle: 75 degrees Input trigger signal: 1, TTL pulse over 10uS 2, serial transmission instructions 0X55
• Output echo signal: output pulse width level signal or TTL
• Cabling: 3-5.5V (power positive) Trig (control) RX Echo (output) TX GND (power negative)
• Circuit size: L * W * H = 42 * 29 * 12mm
• Prob Cable size: 2.5 Miter
• Working temperature: -20 ~ 70 degree centigrade
