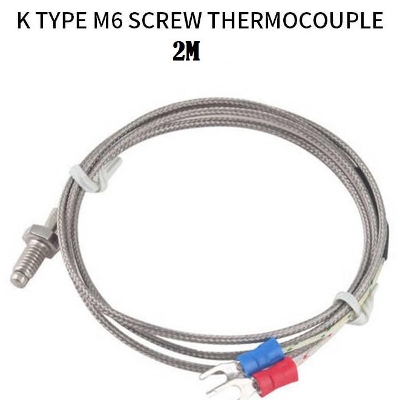

Description: K Type Thermocouples 2 Meters Cable Probe M6 Screw For Industrial General Purpose Temperature Controller Sensor

A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.

There are many types of thermocouples, each with its own unique characteristics in terms of temperature range, durability, vibration resistance, chemical resistance, and application compatibility. Type J, K, T, & E are “Base Metal” thermocouples, the most common types of thermocouples. Type R, S, and B thermocouples are “Noble Metal” thermocouples, which are used in high temperature applications (see thermocouple temperature ranges for details).Thermocouples are used in many industrial, scientific, and OEM applications.

They can be found in nearly all industrial markets: Power Generation, Oil/Gas, Pharmaceutical, Bio Tech, Cement, Paper & Pulp, etc. Thermocouples are also used in everyday appliances like stoves, furnaces, and toasters. Thermocouples are typically selected because of their low cost, high temperature limits, wide temperature ranges, and durable nature.

Specifications:

• Type K Type.
• Mounting thread: M6
• Temperature Range:0-800°C.
• Probe Diameter:2.2mm
• Internal Insulation:Fibreglass.
• External Shielding:Metal Shield.
• Total Length: 2M
• Fork Terminal Spacing: 3.5mm / 0.13″.
• Color: As Picture Shown.
• 10mm thread sensor for accurate measurement.

Package Include:

• 1 x K Type Thermocouples 2 Meters Cable Probe M6 Screw For Industrial General Purpose Temperature Controller Sensor

•  Type K Type.
•  Mounting thread: M6
•  Temperature Range:0-800°C.
•  Probe Diameter:2.2mm
•  Internal Insulation:Fibreglass.
•  External Shielding:Metal Shield.
•  Total Length: 2M
•  Fork Terminal Spacing: 3.5mm / 0.13″.
•  Color: As Picture Shown.
•  10mm thread sensor for accurate measurement.
