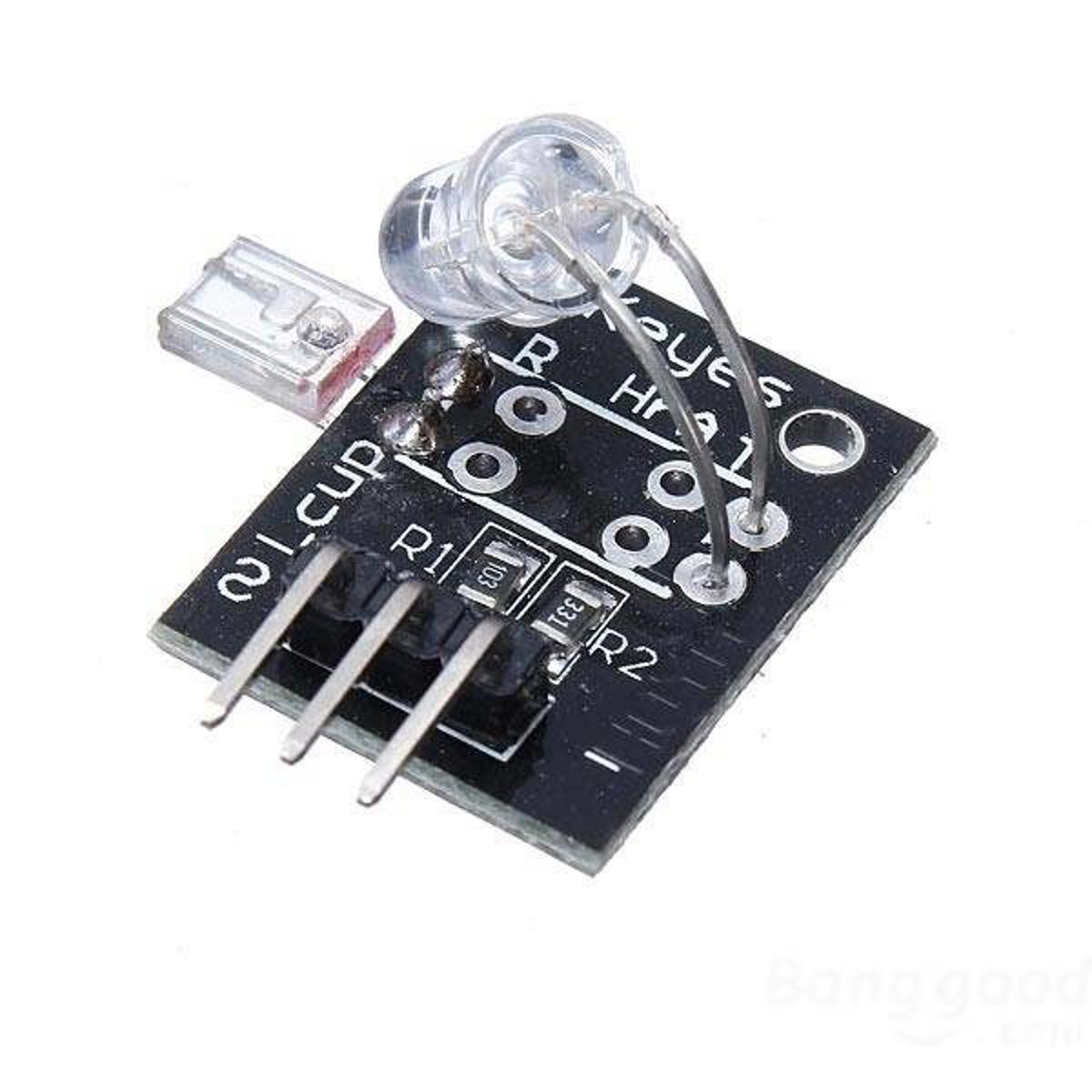

Description: KY-039 DC 5v Finger Detection Heartbeat Detector Sensor Module For Arduino

This project uses bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, a red LED flashes with each pulse. Pulse monitor works as follows: The LED is the light side of the finger, and phototransistor on the other side of the finger, phototransistor used to obtain the flux emitted, when the blood pressure pulse by the finger when the resistance of the photo transistor will be slightly changed. The project’s schematic circuit as shown, We chose a very high resistance resistor R1, because most of the light through the finger is absorbed, it is desirable that the phototransistor is sensitive enough. Resistance can be selected by experiment to get the best results. The most important is to keep the shield stray light into the phototransistor. For home lighting that is particularly important because the lights at home mostly based 50HZ or 60HZ fluctuate, so faint heartbeat will add considerable noise.

Features:

Specification:

• 1 x KY-039 DC 5v Finger Detection Heartbeat Detector Sensor Module For Arduino

• Working voltage: 5V
• Application Synthesized teaching experiment
• English Manual/ Spec Yes
• Dimensions: 0.94 in x 0.87 in x 0.31 in (2.4 cm x 2.2 cm x 0.8 cm)
• Weight: 0.18 oz (5 g)
