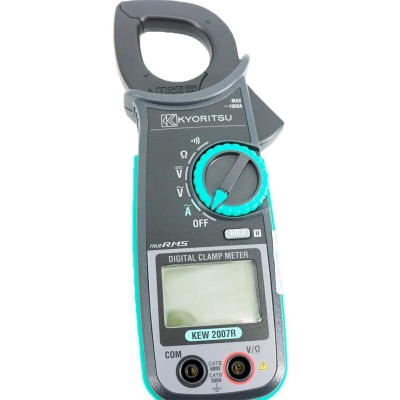

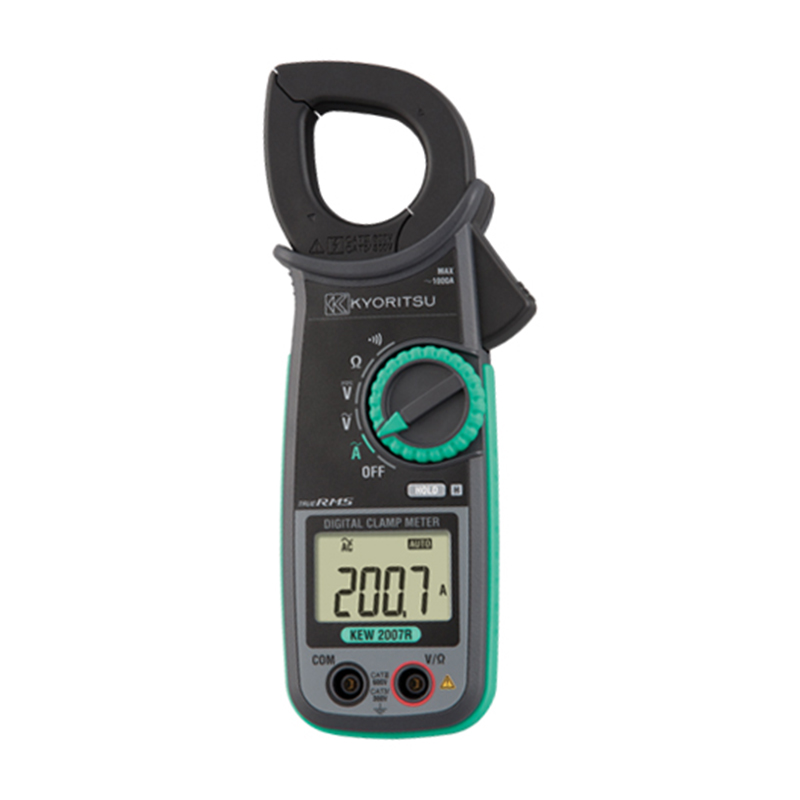

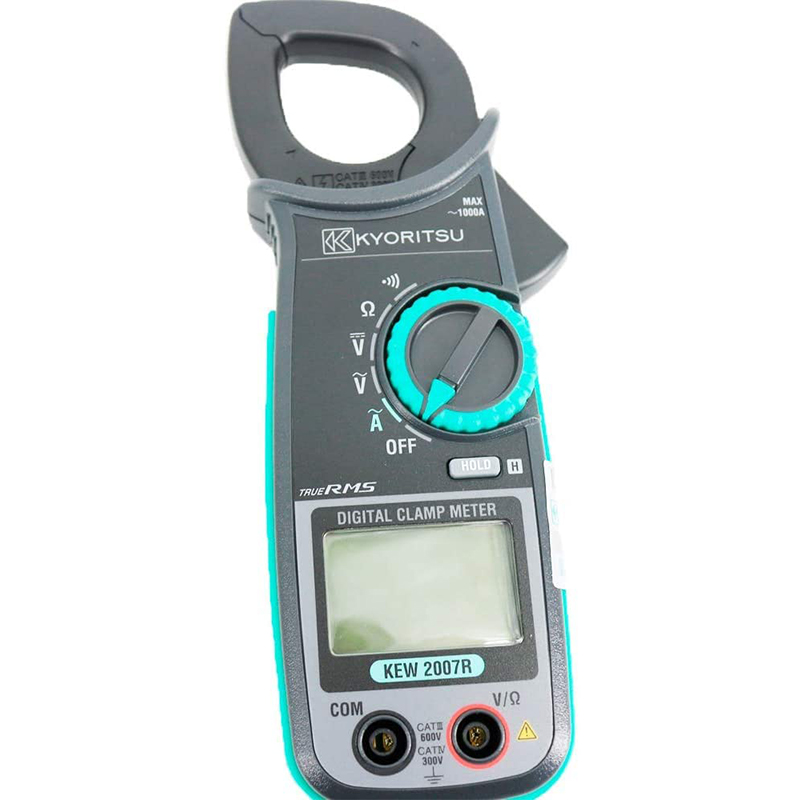

Kyoritsu KEW2007R Digital AC Clamp Meter-Multicolor

Kyoritsu KEW 2007R Digital AC Clamp Meter is rugged, reliable, and trusted. AC DIGITAL CLAMP METER De Facto Standard 1000A. AC Clamp meter CAT 300V MAX 1000A. DATA HOLD and Fully Safety jaw. Ergonomic beyond-molded body gives convenient one-hand operation. Large, comprehensible-to-retrieve display following an Accurate reading gone. True RMS 600/1000A auto-ranging Long battery energy, Safety Standard.

Features of Kyoritsu KEW 2007R Digital AC Clamp Meter

Fully safe jaw

The ergonomic over-molded body gives convenient one-hand operation

Large easy-to-read display with 0.1A resolution

Accurate reading with True RMS

600/1000A auto-ranging

Long battery life

Safety Standard: IEC 61010-1 CAT IV 300V / CAT III 600V

Specifications of Kyoritsu KEW 2007R Digital Clamp Meter:

AC A 600.0/1000A (Auto-ranging): ±1.5%rdg±4dgt [45 – 65Hz]; ±2.0%rdg±4dgt [40 – 400Hz]

AC V 600.0V: ±1.2%rdg±3dgt [45 – 65Hz]; ±1.5%rdg±4dgt [40 – 400Hz]

DC V 600.0V: ±1.2%rdg±3dgt; Ω 600.0Ω/6.000kΩ (Auto-ranging); ±1.3%rdg±5dgt (600Ω); ±2.0%rdg±3dgt (6.000kΩ)

Continuity buzzer 600Ω (Buzzer sounds below 90Ω)

Conductor size φ33mm max.

Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V, Pollution degree 2

IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,

IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)

Power source R03/LR03 (AAA) (1.5V) × 2

Continuous measuring time Approx.170 hours (when R03 is used)

(Auto power save approx. 10 minutes)

Dimensions 204(L) × 81(W) × 36(D)mm

Weight 220g Approx. (including batteries)

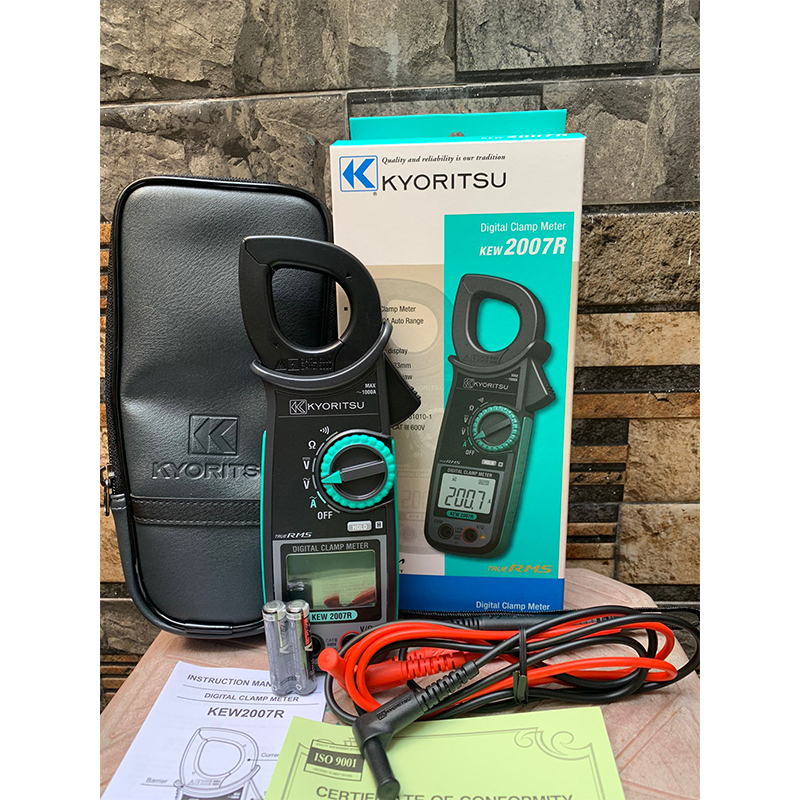

Included Accessories

7066A (Test leads)

9079 (Carrying case)

R03 (AAA) × 2, Instruction Manual
