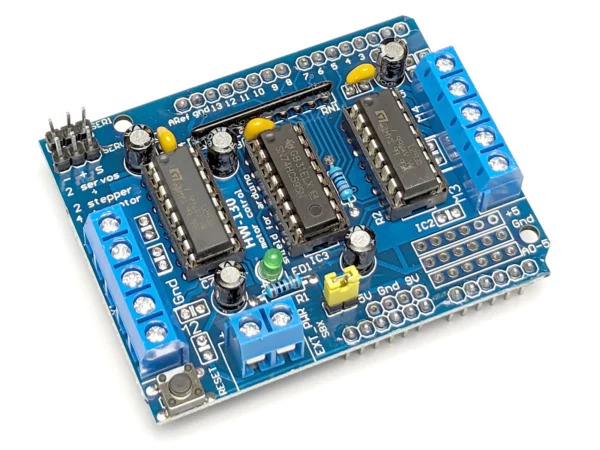

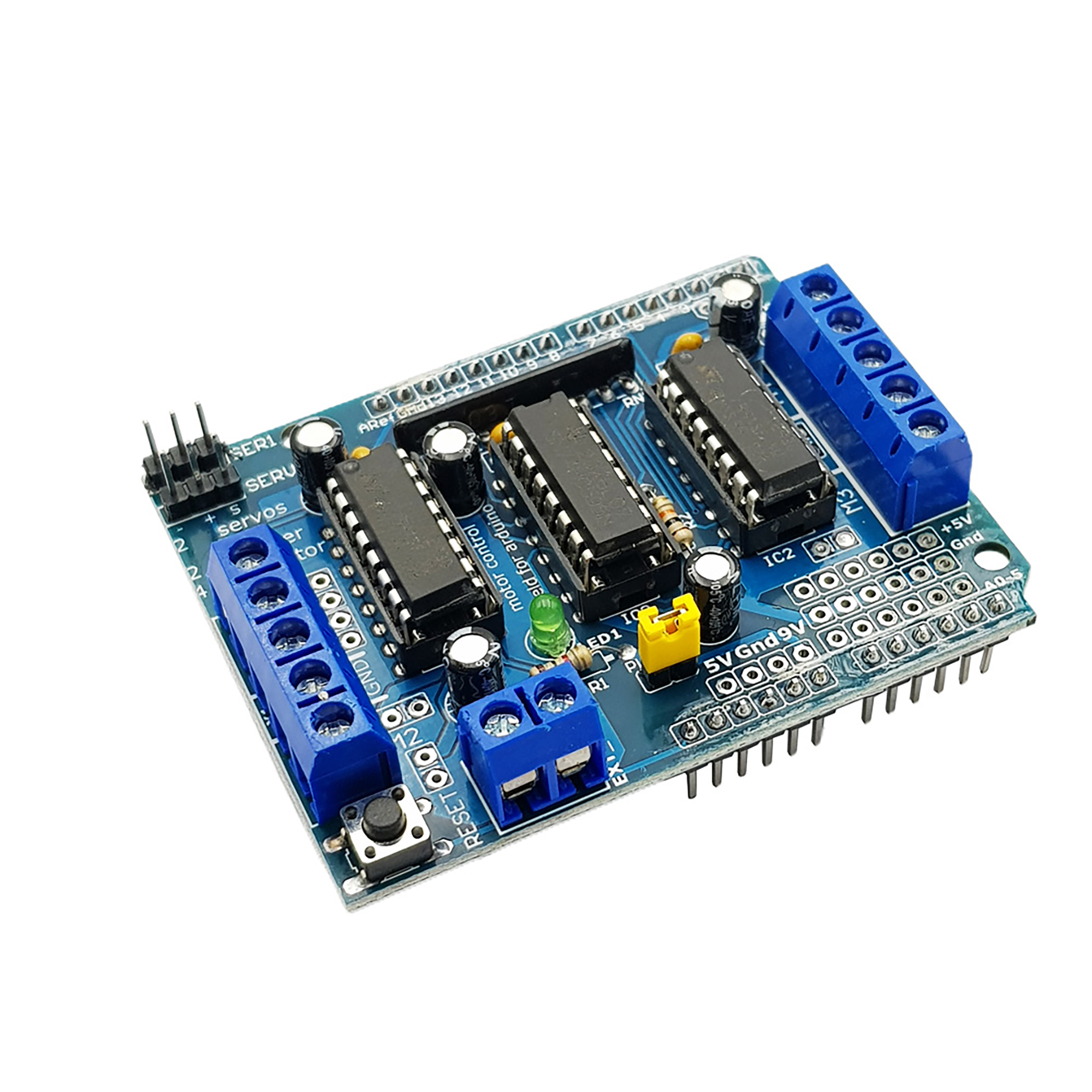

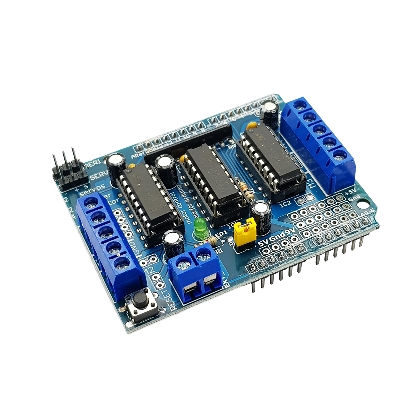

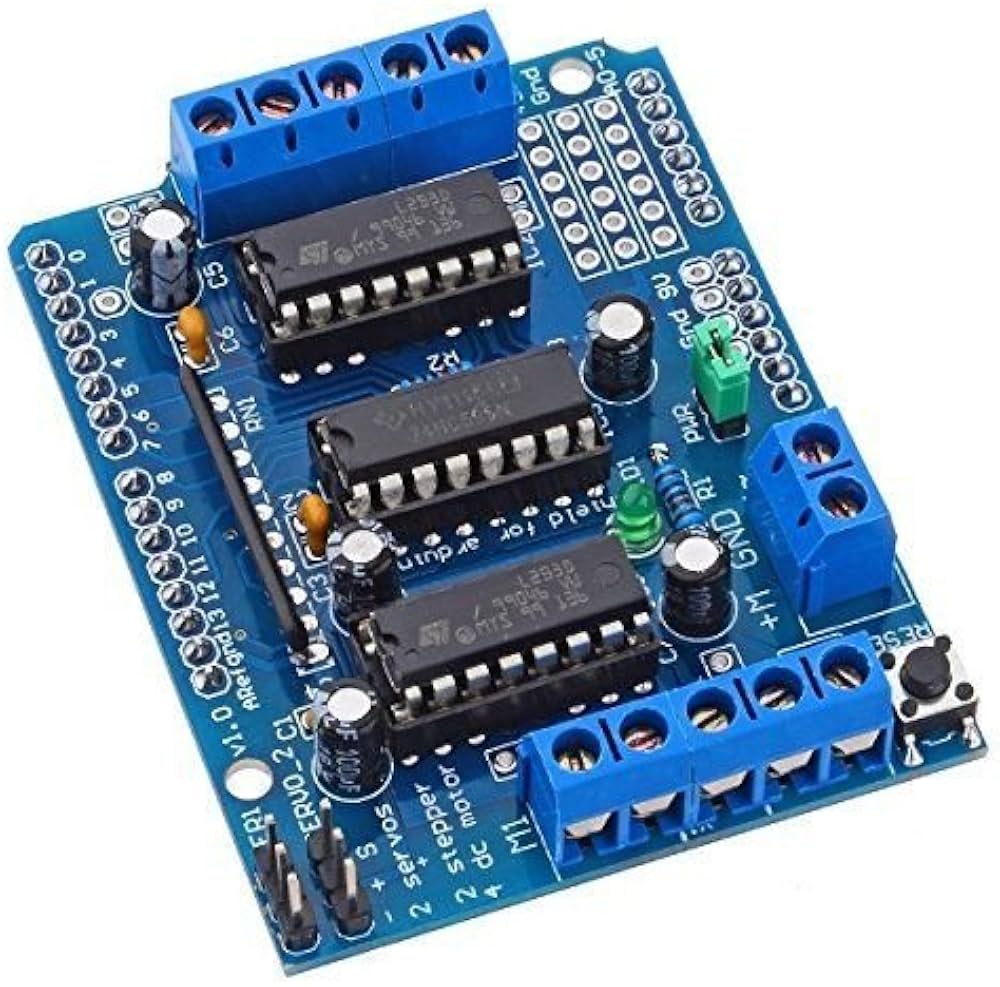

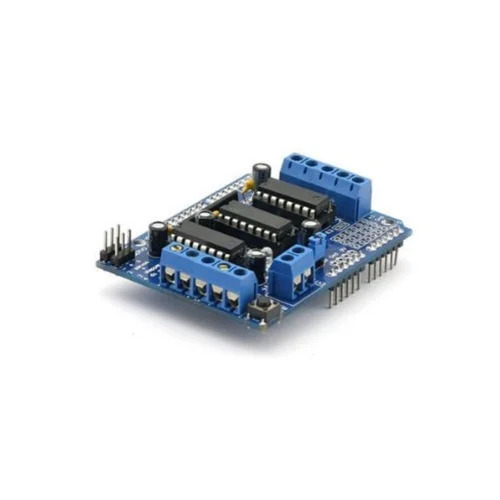

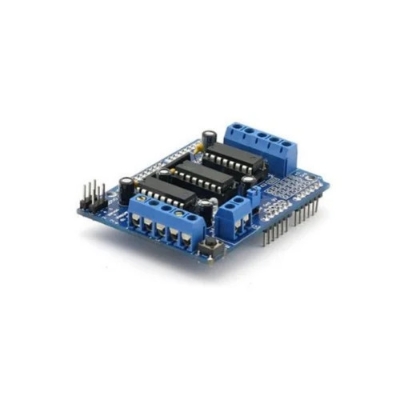

L293D Dc Motor/Steeper Motor Driver Servo Shield(Blue)

Product Description

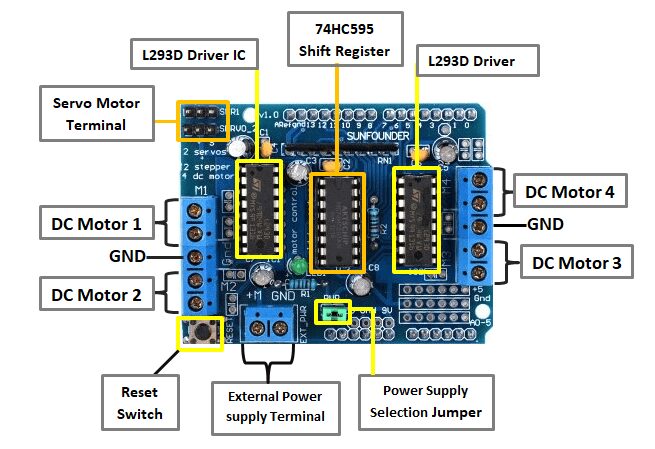

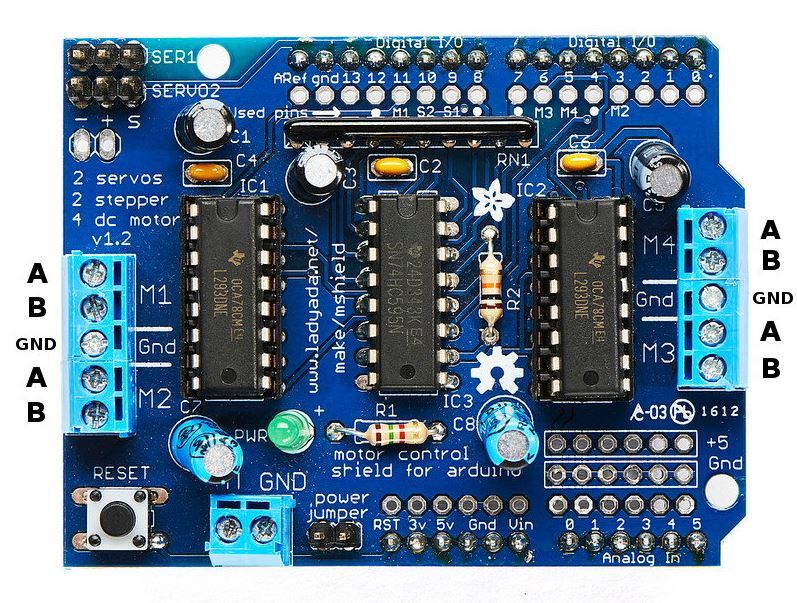

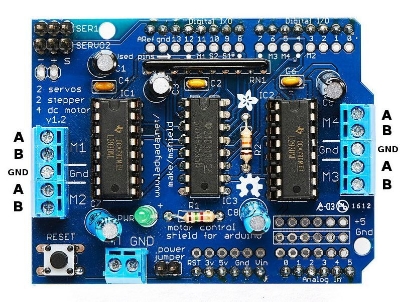

The L293D Motor Driver Shield is an expansion board designed to control multiple motors with ease. This shield is based on the L293D motor driver chip, which provides bidirectional drive currents of up to 1.2A per bridge with thermal shutdown protection. It is capable of driving up to 4 bidirectional DC motors with individual 8-bit speed selection or 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping. The shield features 4 H-bridges, each providing up to 0.6A per bridge (1.2A peak) at voltages from 4.5V to 36V. It also includes pull-down resistors to keep the motors disabled during power-up and a 2-pin terminal block for separate logic and motor external power supplies. Compatible with Arduino Mega, Diecimila, and Duemilanove, this motor driver shield is perfect for various DIY projects and robotics applications.

Specifications

• Chip: L293D
• Number of H-Bridges: 4
• Drive Current: 0.6A per bridge (1.2A peak)
• Voltage Range: 4.5V to 36V
• Motor Control: Up to 4 bidirectional DC motors or 2 stepper motors
• Speed Selection: 8-bit individual speed selection
• Protection: Thermal shutdown protection
• Power Supply: Separate logic and motor external power supplies
• Compatibility: Arduino Mega, Diecimila, Duemilanove
• Dimensions: 69mm x 53mm
• Applications: DIY projects, robotics, motor control
