Description: L298N Motor Driver IC 2.7 V 3A 15-Pin

L298N L298 298 Dual Motor Driver IC 2A 5V-46V Dual Full Bridge Driver IC ZIP-15 Electrical Circuitry & Parts

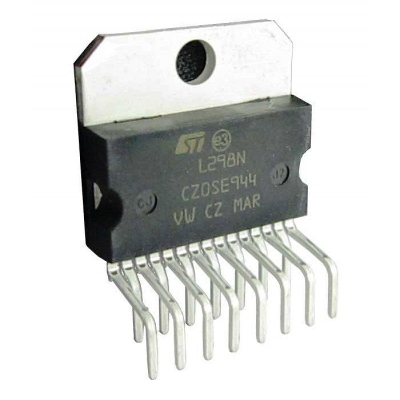

The L298 from ST is an integrated high voltage, high current Dual Full-Bridge Driver. The device is designed to accept standard TTL logic and drive inductive loads in Relays, Solenoids, DC and Stepper Motors. Featured are two enable inputs that allow the L298 to be enabled or disabled independently of the input signals. The emitters of the lower transistors of each bridge are connected and the corresponding external terminal can be used to connect an external sensing resistor. In addition, a supply input is provided so that the logic works at a lower voltage.

Features:

• Operation to 46 V
• Up to 2 A per channel
• Outputs can be paralleled to drive up to 3 A
• Independent ground connections for each channel allow independent current sensing
• Multiwatt15 through-hole package allows convenient heat sink mounting and easy prototyping with 0.1″ breadboards

Specifications:

• Motor Type : Full Bridge
• No. of Outputs : 4 Outputs
• Output Current : 2A
• Output Voltage : 46V
• Driver Case Style : Multi watt
• No. of Pins : 15Pins
• Supply Voltage Min : 4.5V
• Supply Voltage Max : 7V
• Operating Temperature Min : -25°C
• Operating Temperature Max : 130°C

• Motor Type : Full Bridge
• No. of Outputs : 4 Outputs
• Output Current : 2A
• Output Voltage : 46V
• Driver Case Style : Multi watt
• No. of Pins : 15Pins
• Supply Voltage Min : 4.5V
• Supply Voltage Max : 7V
• Operating Temperature Min : -25°C
• Operating Temperature Max : 130°C
