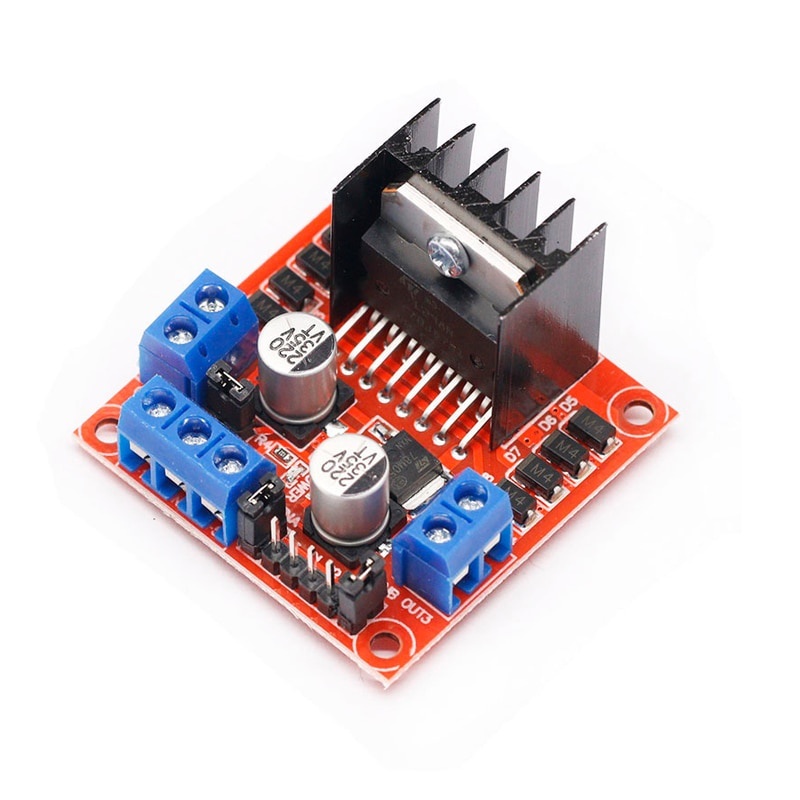

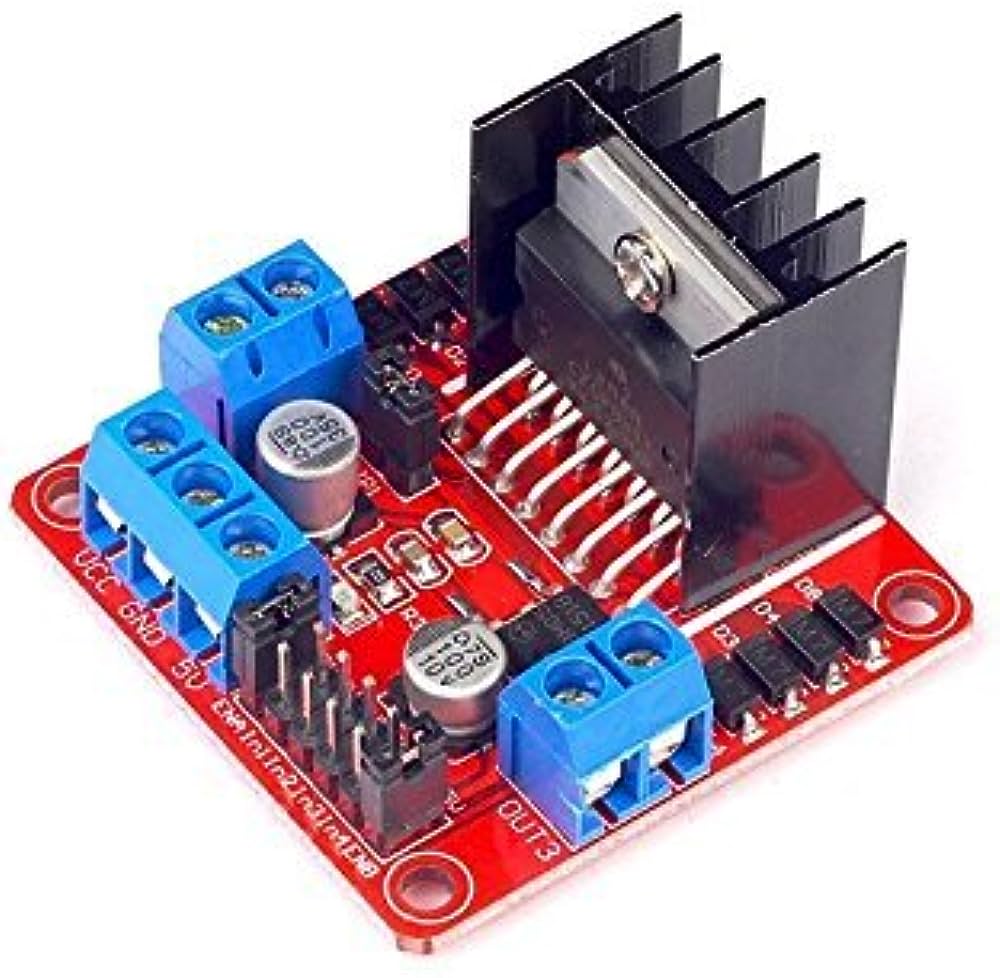

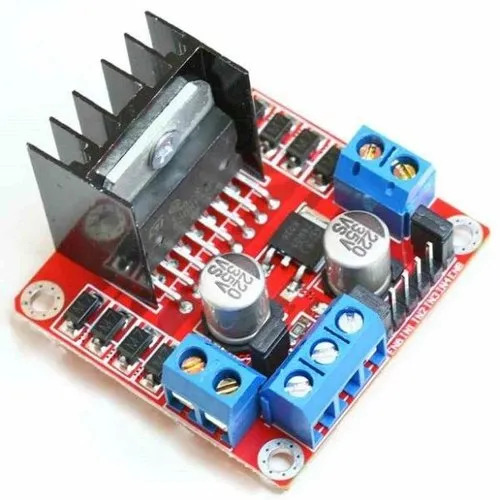

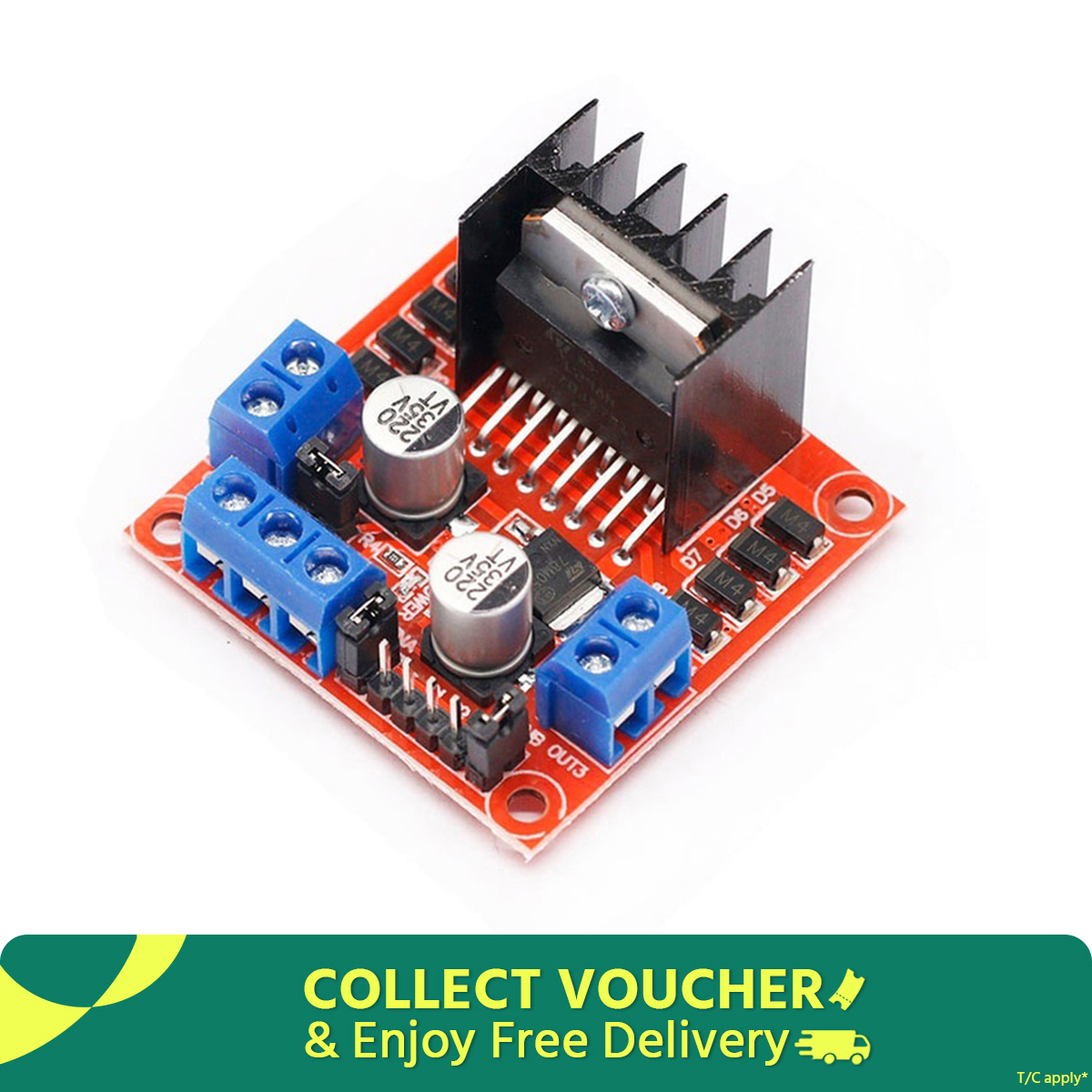

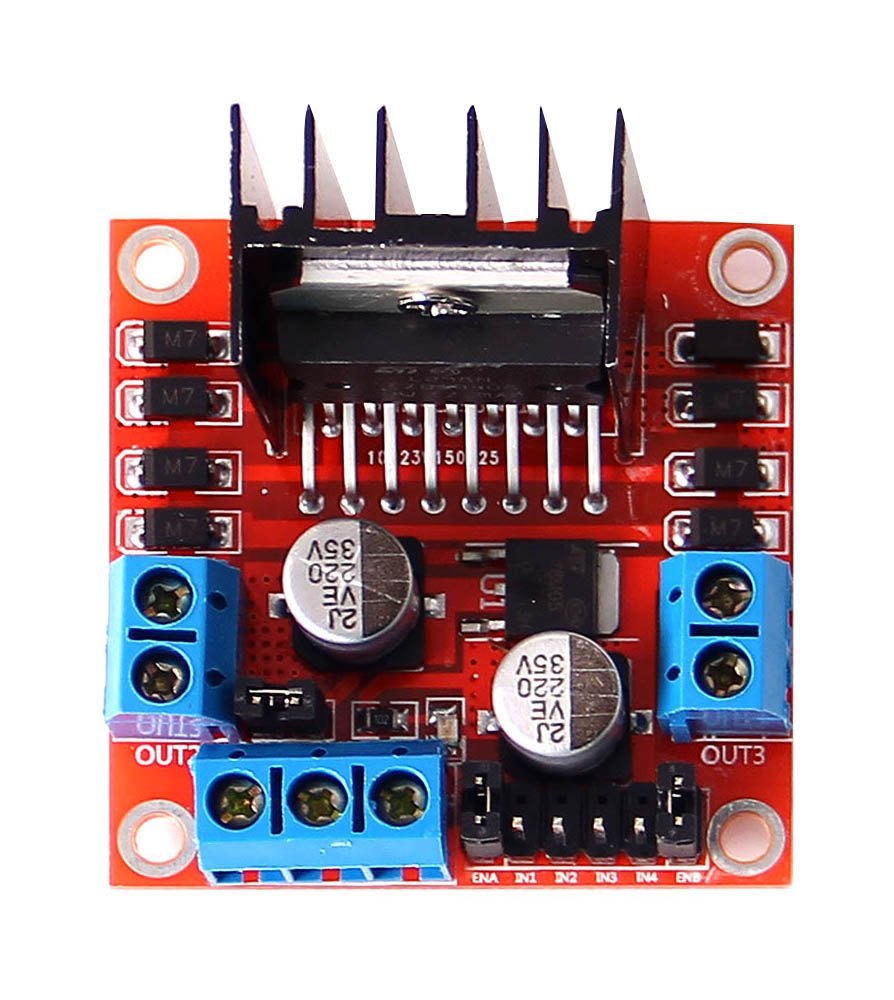

L298N Motor Driver Module for Arduino(Red)

Specification:

• Chip: L298N
• Logic voltage: 5V
• Logic current 0mA-36mA
• Storage Temperature: -20 ℃ to ℃ to +135
• Operating mode: H-bridge driver (dual)
• Drive voltage: 5V-35V
• Drive current: 2A (MAX single bridge)
• Maximum power: 25W

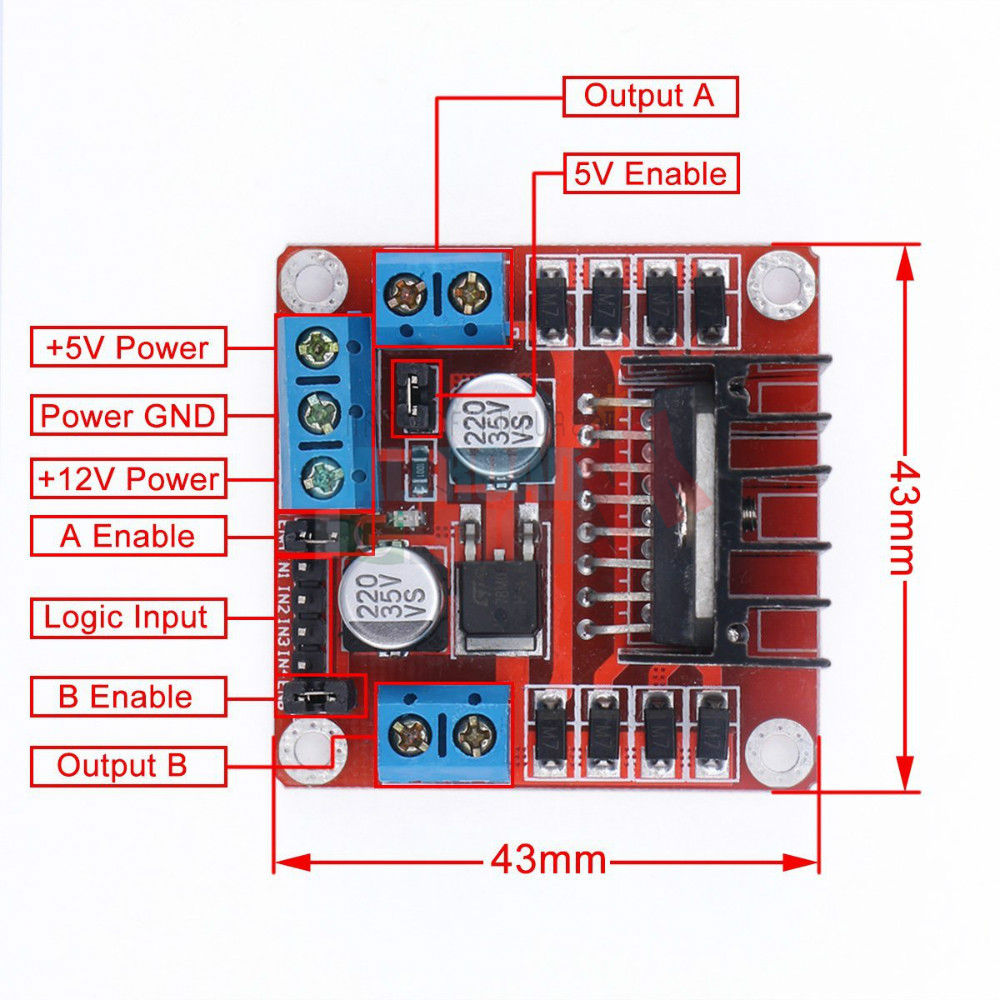

• Dimensions:43x43x27mm

Features:

• Driver chip: L298 dual H-bridge driver chip.
• Terminal driver part of the supply area VMS: +5 V ~ +35 V.
• Drive part of the peak current Io:2A / Bridge.
• The logical part of the terminal power supply range is Vss:4.5-5.5 V.
• The logical part of the operating current range: is 0 ~ 36mA.
• The control signal input voltage range is 4.5-5.5V low and 0V high.
• Maximum power consumption.
• Storage temperature:-25 ~ +130.
