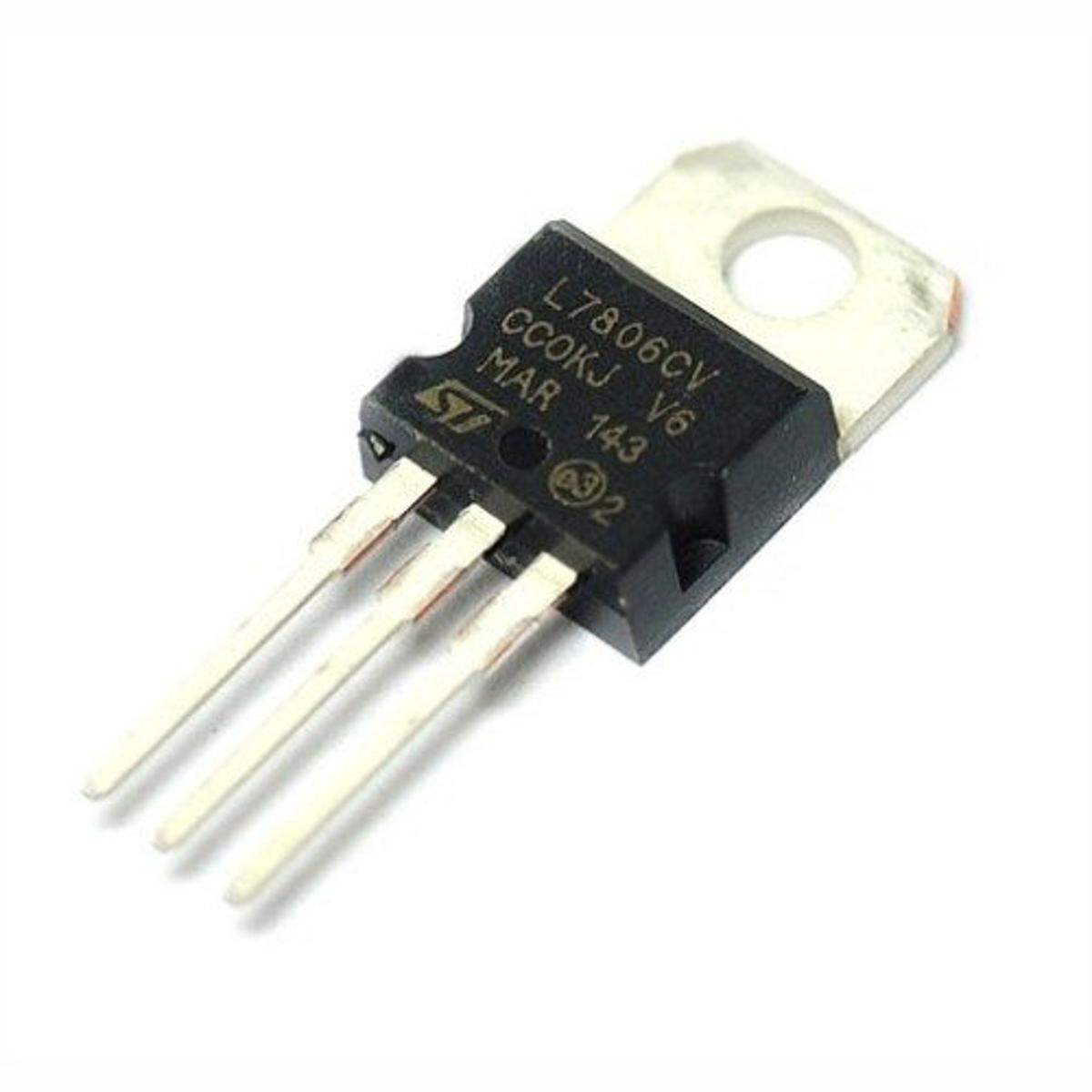

L7806 DC Voltage Regulator A Class- 2Pcs

L7806/LM7806 Voltage Regulatoris a6V voltage regulatorthat can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Images/Pinout of L7806/LM7806 Voltage Regulators

Features:

• Operating Voltage :5V.
• Max input voltage:35V.
• Max output current:1.5A.
• Quiescent (standby) current:5mA.

Applications:

• Circuits requiring steady 6v supply .
• Protection for devices having specific voltage sensitivity.
• DIY projects requiring specific voltage from an existing higher/ varying voltage supply.

Package Include:

• 1 x L7806 DC Voltage Regulator A Class
