L7912 7912 Voltage Regulator Electrical Circuitry & Parts

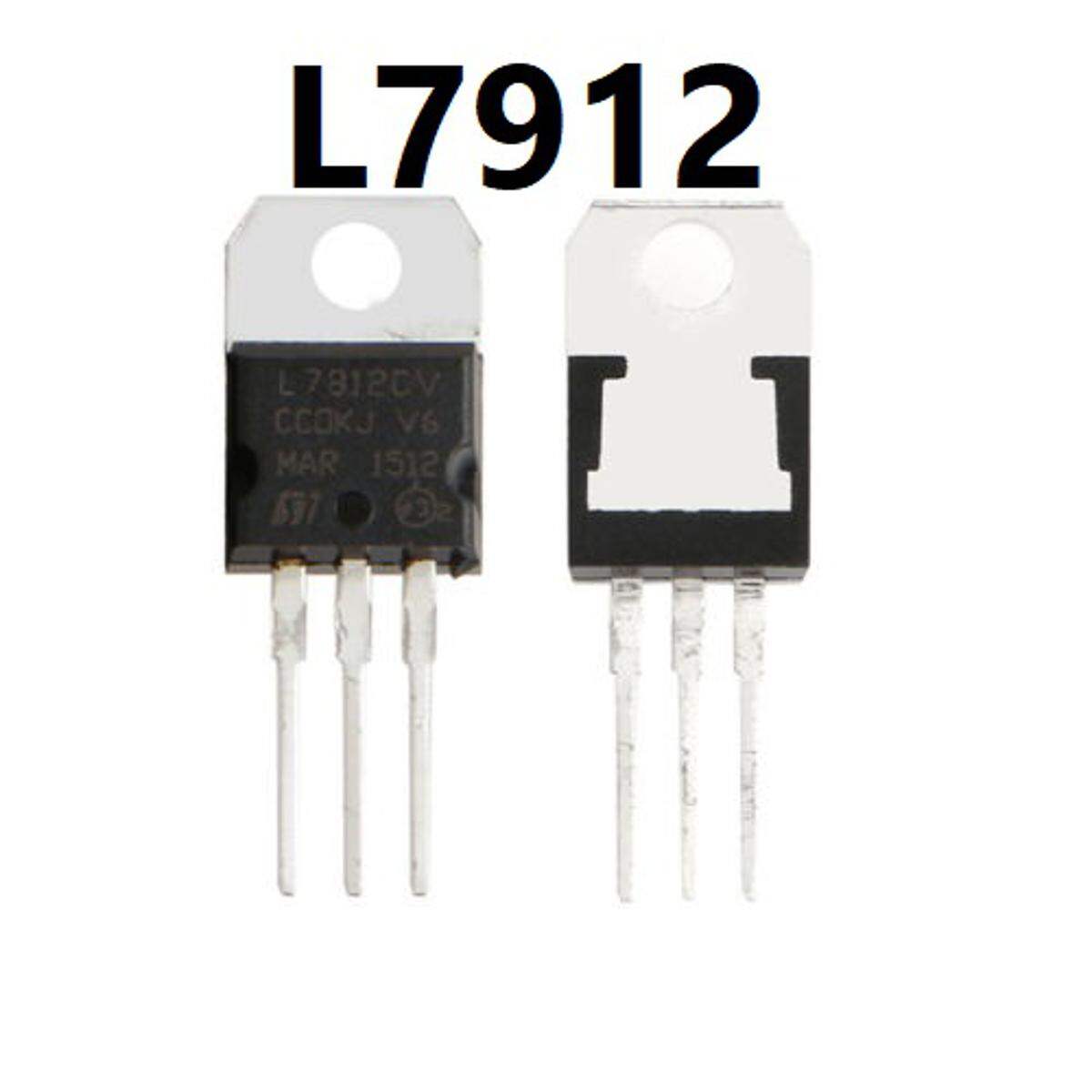

Description: L7912 Voltage Regulator

LM7912 belongs to the family of Voltage regulators. The name “79” indicates negative and the term “12” indicates the voltage. So “7912” means that this IC will regulate a negative 12V for your projects. You can also check on 78 series for positive voltage regulators.

When you are designing ananalog circuit, the circuit might need negative voltage either as a power source or as a reference voltage. In both cases 7912 will be an ideal choice when you need a negative 12V. The output current of this IC is upto 1A, however with appropriate heat sink the datasheet says that a peak current of 2.2A can be achieved through this IC.

How to use L7912 Voltage Regulator:

The LM7912 is a -12V Voltage regulator IC. Meaning it will provide a constant output voltage of -12V when the input voltage is between -14.5V to -27V. A very basicVoltage regulator circuitis shown below.

I have used a Battery to power the IC, but you can use any power source but notice that the supply voltage should be negative. Hence, I have interchanged the polarity of the battery. The Input and outputC1 (10uF) and C2 (1uF) are used to filter noise from the input and the output voltage respectively. The negative output voltage is obtained from the Vo (3rd Pin) which is also read using a Multimeter. The value of the capacitors need not be the exact values, you can use the closest value you have got.

There are many other ways in which the IC can be used based on your application. The circuit diagram for those can be found at the datasheet given at the end of this page.

L7912 Voltage Regulator:

• Constant -12V output regulator to use as power or reference voltage for analog and digital circuits.
• Current Limiter for certain applications
• Regulated Dual Supply
• Output Polarity-Reversal-Protection Circuit

Package Include:

• 1 x L7912 Voltage Regulator
