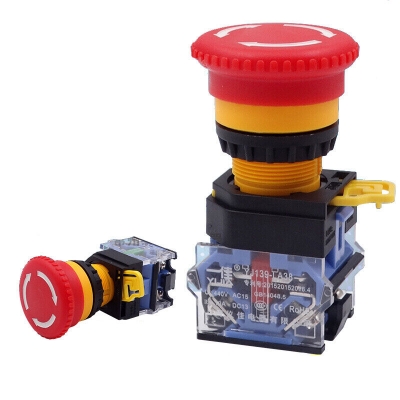

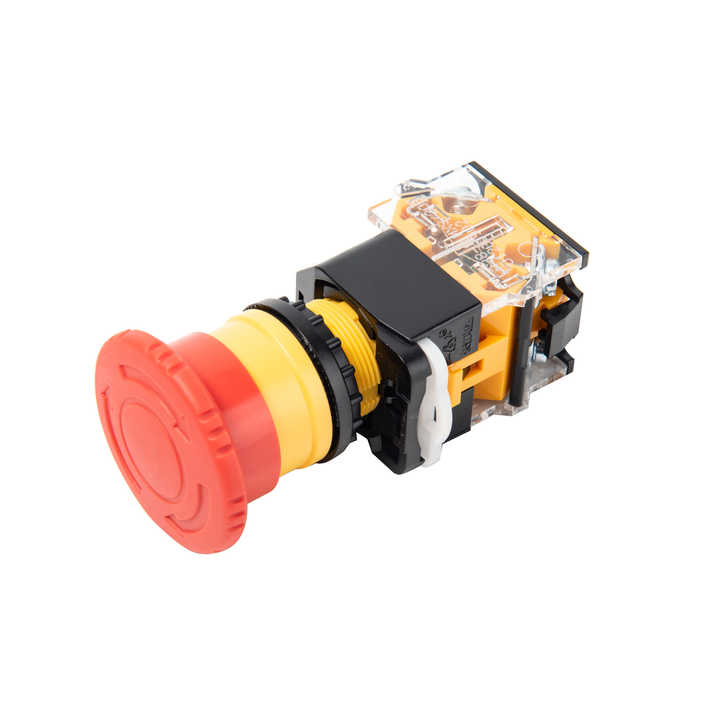

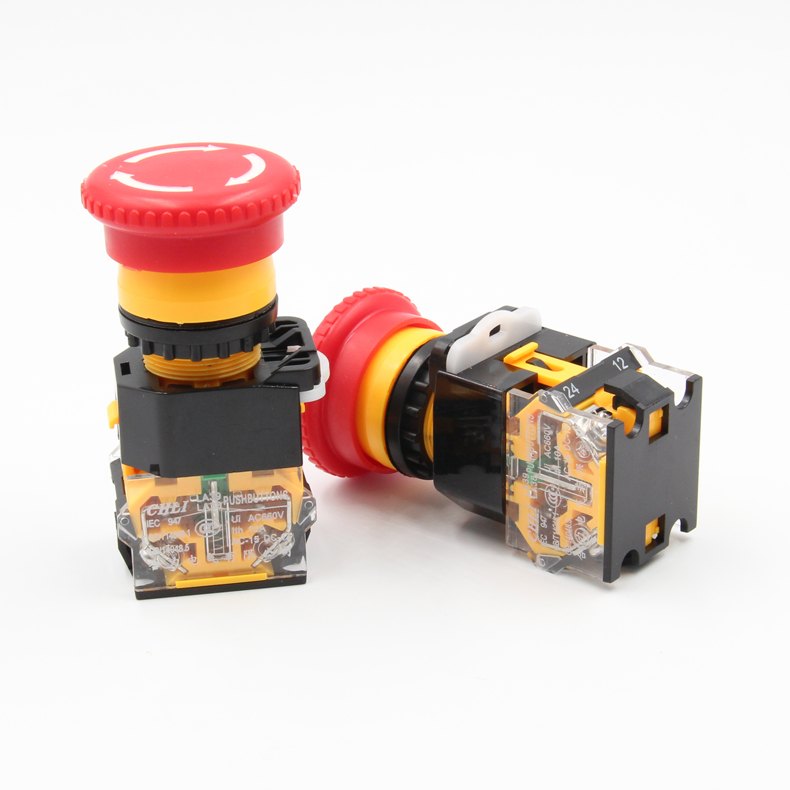

LA38 Emergency Push Button with Red Mushroom Head - Industrial Safety Stop Switch, 22mm Mounting Hole, 1NO1NC Contacts(Red)

Product Description

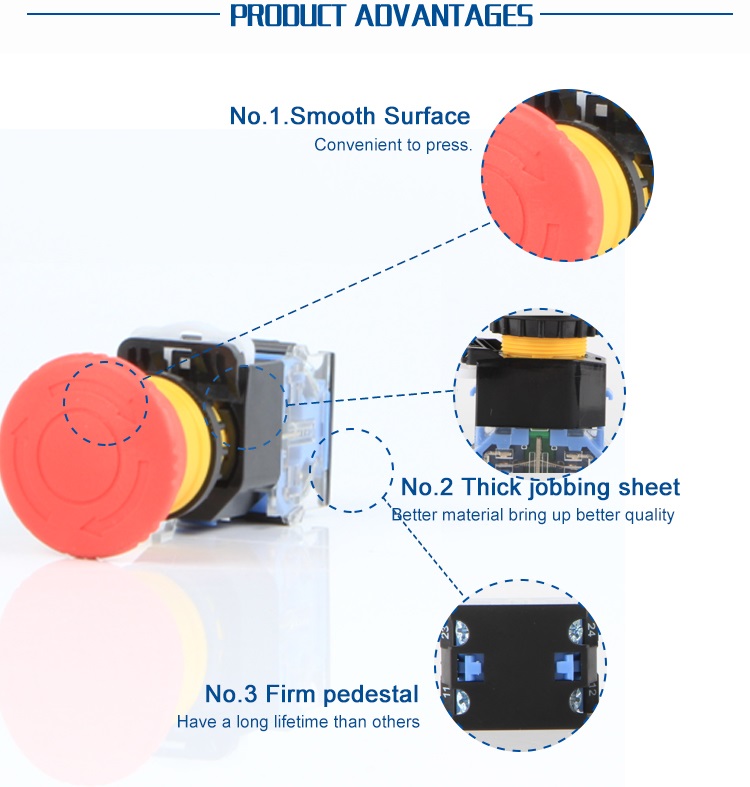

The LA38 emergency push button is a high-quality, durable, and reliable industrial control device designed for emergency stop applications. This push button features a prominent red mushroom head, making it easily identifiable and accessible in emergency situations. The LA38 series is known for its robust construction, ensuring long-lasting performance even in harsh industrial environments. With its easy installation and maintenance, the LA38 emergency push button is an essential safety component for various industrial and commercial applications, including machinery, automation systems, and control panels.

Specifications

• Model: LA38
• Button Type: Emergency stop, mushroom head
• Mounting Hole Diameter: 22 mm
• Contact Configuration: 1NO1NC (1 Normally Open, 1 Normally Closed)
• Rated Voltage: 24V, 48V, 110V, 220V, 380V AC/DC
• Rated Current: 10A
• Contact Material: Silver alloy
• Mechanical Life: ≥500,000 operations
• Electrical Life: ≥200,000 operations
• Operating Temperature: -25°C to +55°C (Ice-free)
• Operating Humidity: 45% to 85% RH
• Insulation Resistance: ≥100 MΩ
• Dielectric Strength: 1890 VAC, 50/60 Hz for 1 minute
• Vibration Resistance: 50 Hz, amplitude 1.0 mm
• Shock Resistance: 1,000 m/s² (Destruction), 200 m/s² (Malfunction)
• IP Rating: IP40 (Some models can be customized to IP65 or IP67)
• Terminal Type: Screw connection, wire diameter: 2×1.5 mm
• Dimensions:
  • Diameter: 40 mm (mushroom head)
  • Height: 70 mm
  • Depth: 30 mm
• Weight: Approx. 50 g
•
