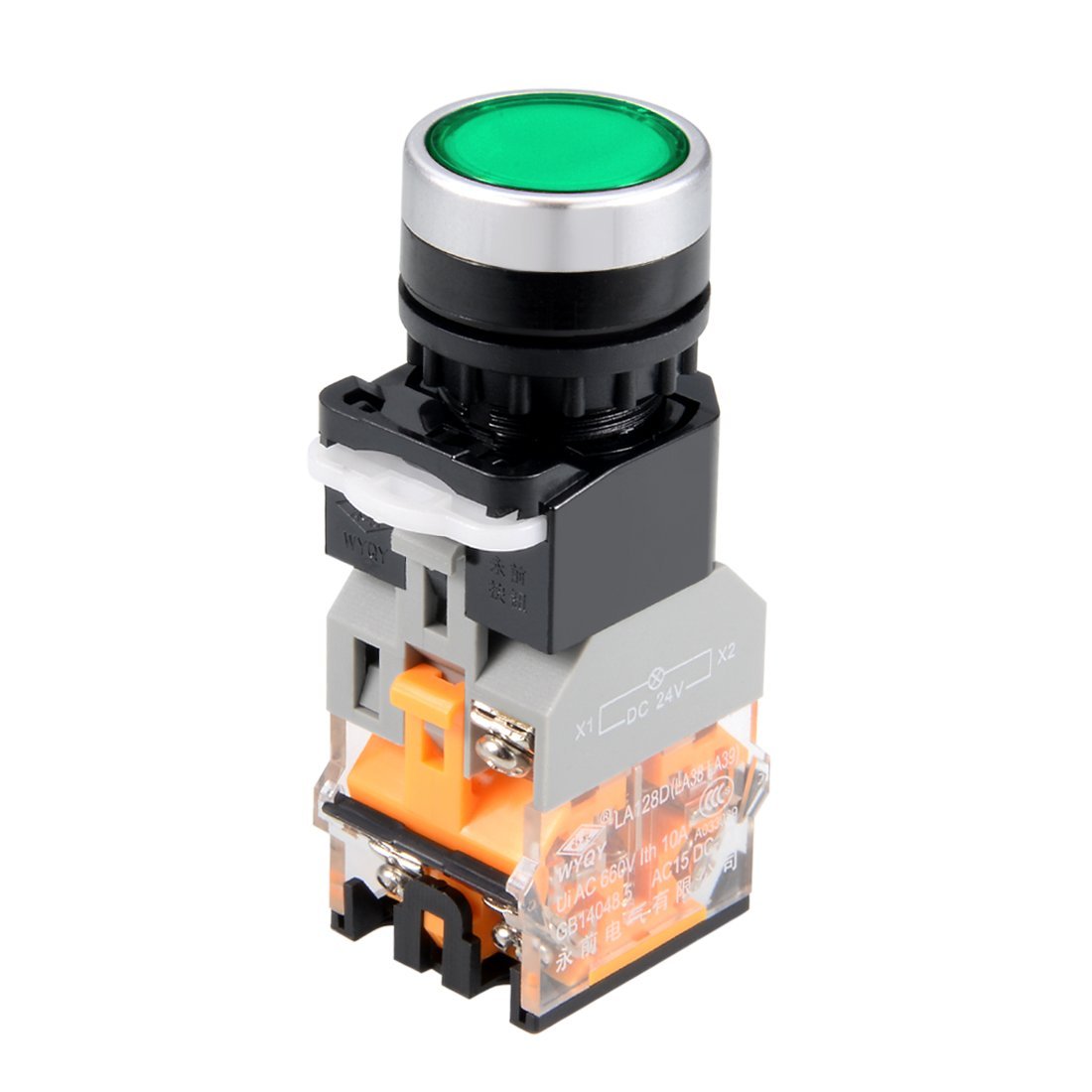

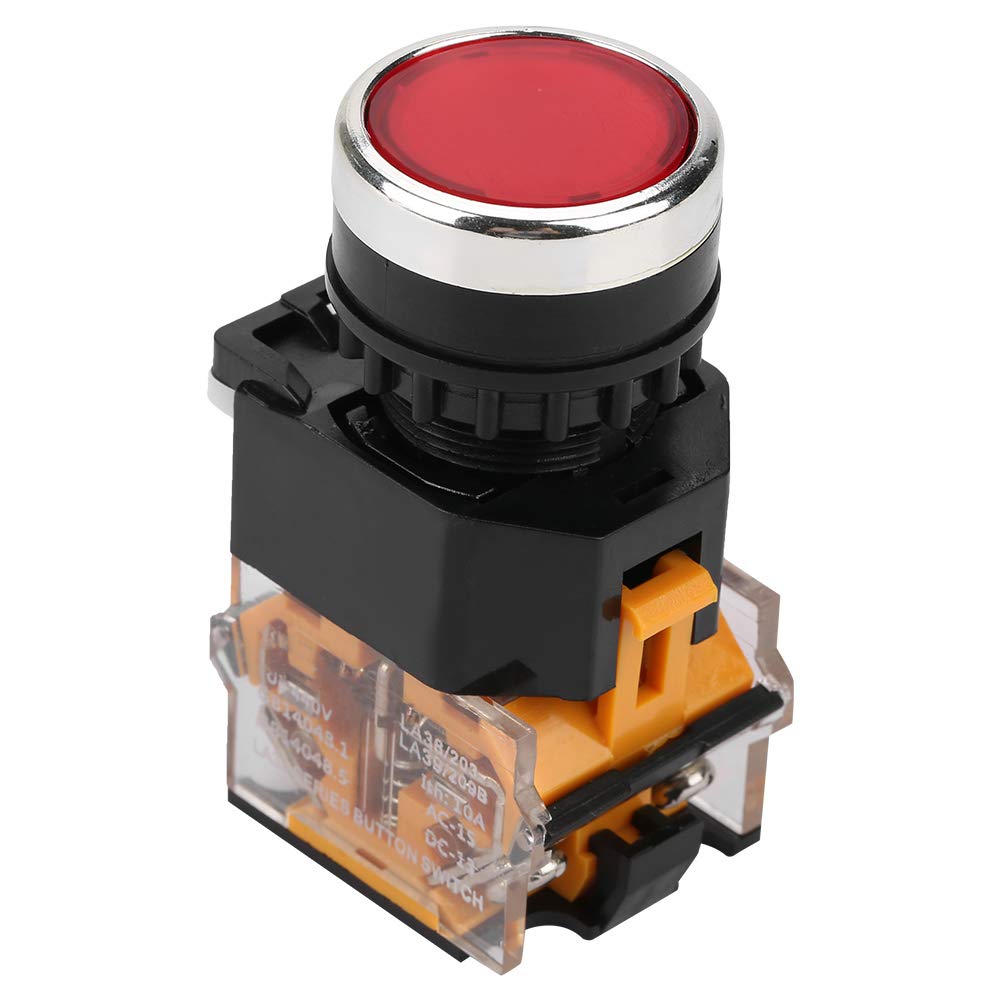

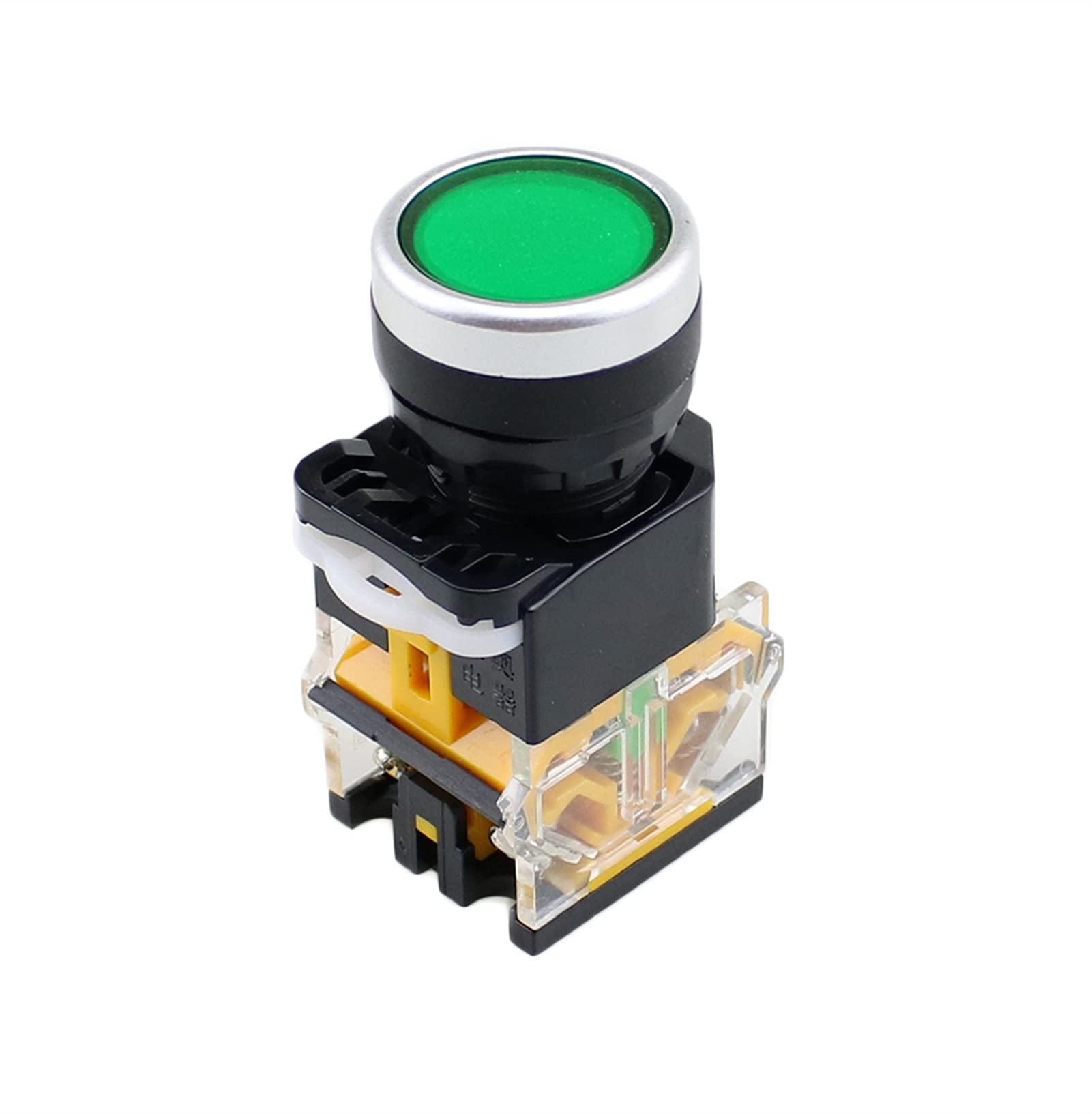

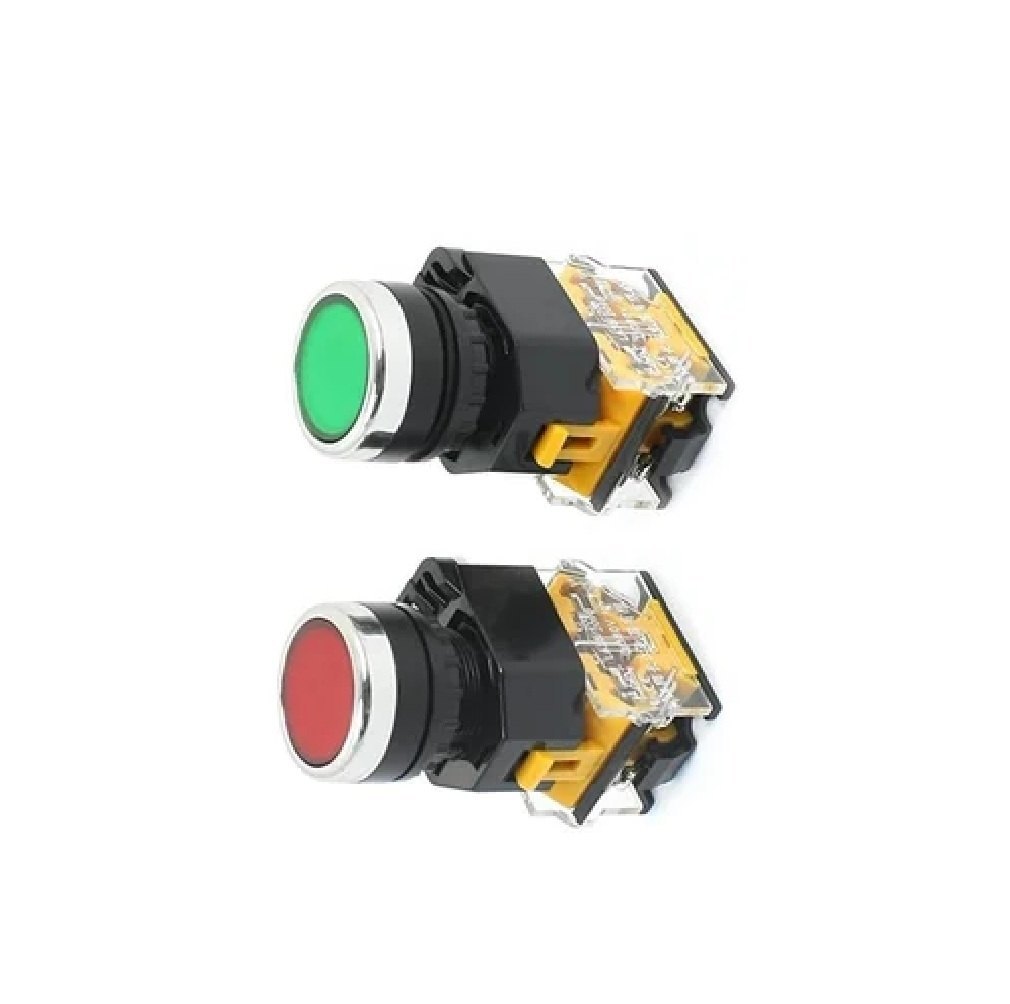

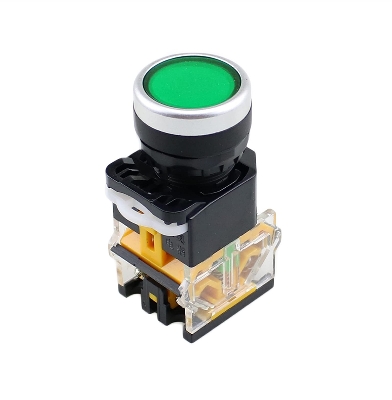

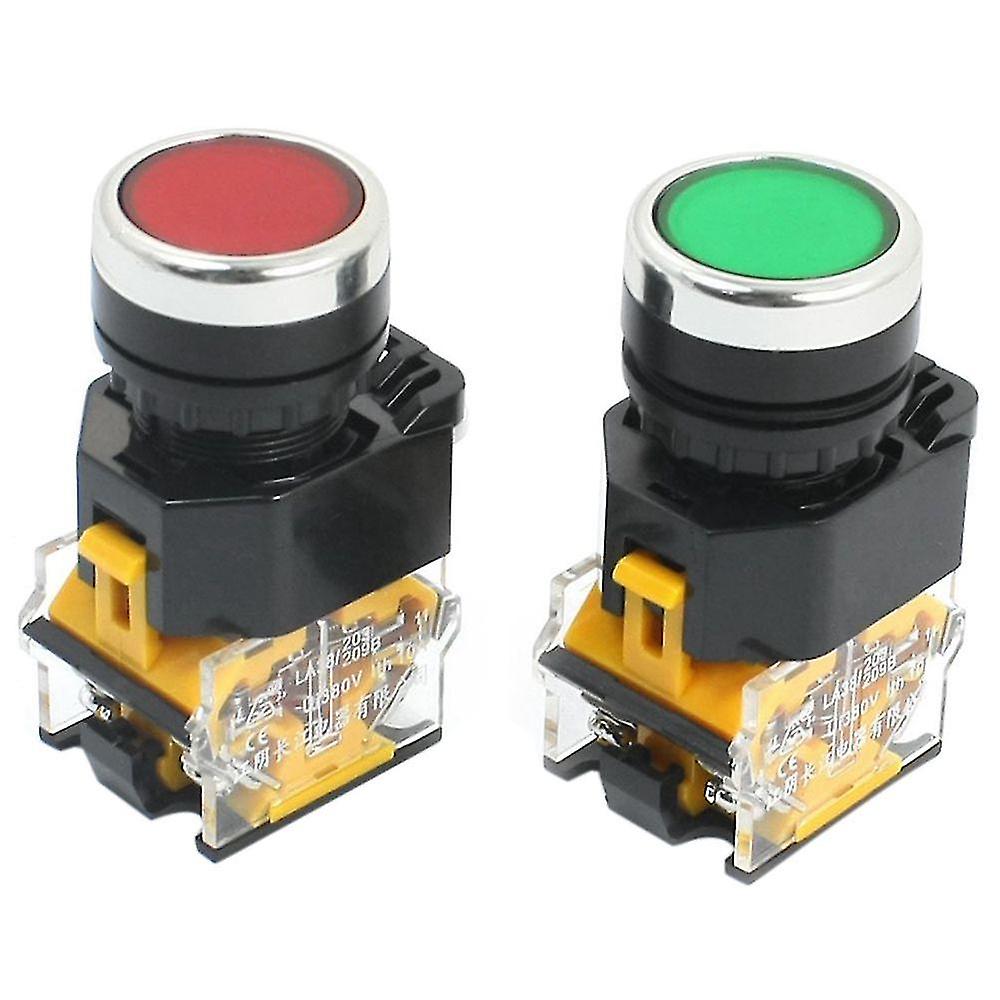

LA38 Industrial Push Switch with 22mm Mounting Hole- Red and Green| 24v 48v Dc 110v 220v 380v 660v AC(Red, Green)

Product Description

The LA38 push switch is a high-quality, versatile, and durable industrial control device designed for various applications, including machinery, automation systems, and control panels. This push switch features a robust construction, ensuring long-lasting performance even in harsh industrial environments. The LA38 series is known for its reliability and ease of installation, making it an ideal choice for both new installations and replacements. With its ergonomic design and smooth operation, the LA38 push switch provides a reliable and user-friendly interface for controlling electrical circuits.

Specifications

• Model: LA38
• Button Type: Momentary, maintained, illuminated, selector switch, key-lock selector switch, emergency, mushroom, stainless steel button, double-key button
• Mounting Hole Diameter: 22 mm
• Contact Configuration: 1NO1NC, 2NO, 2NC, 1NO, 1NC (contacts can be combined as required)
• Rated Voltage: 24V, 48V, 110V, 220V, 380V 660v AC/DC
• Rated Current: 10A
• Contact Material: Silver alloy
• Mechanical Life: ≥1,000,000 operations (momentary, maintained, selector switch, key-lock selector switch), ≥500,000 operations (emergency, mushroom)
• Electrical Life: ≥200,000 operations
• Operating Temperature: -25°C to +55°C (Ice-free)
• Operating Humidity: 45% to 85% RH
• Insulation Resistance: ≥100 MΩ
• Dielectric Strength: 1890 VAC, 50/60 Hz for 1 minute
• Vibration Resistance: 50 Hz, amplitude 1.0 mm
• Shock Resistance: 1,000 m/s² (Destruction), 200 m/s² (Malfunction)
• IP Rating: IP40
• Terminal Type: Screw connection, wire diameter: 2×1.5 mm
• Dimensions:
  • Diameter: 22 mm (mounting hole)
  • Height: Varies based on button type
  • Depth: Varies based on button type
• Weight: Approx. 50 g
