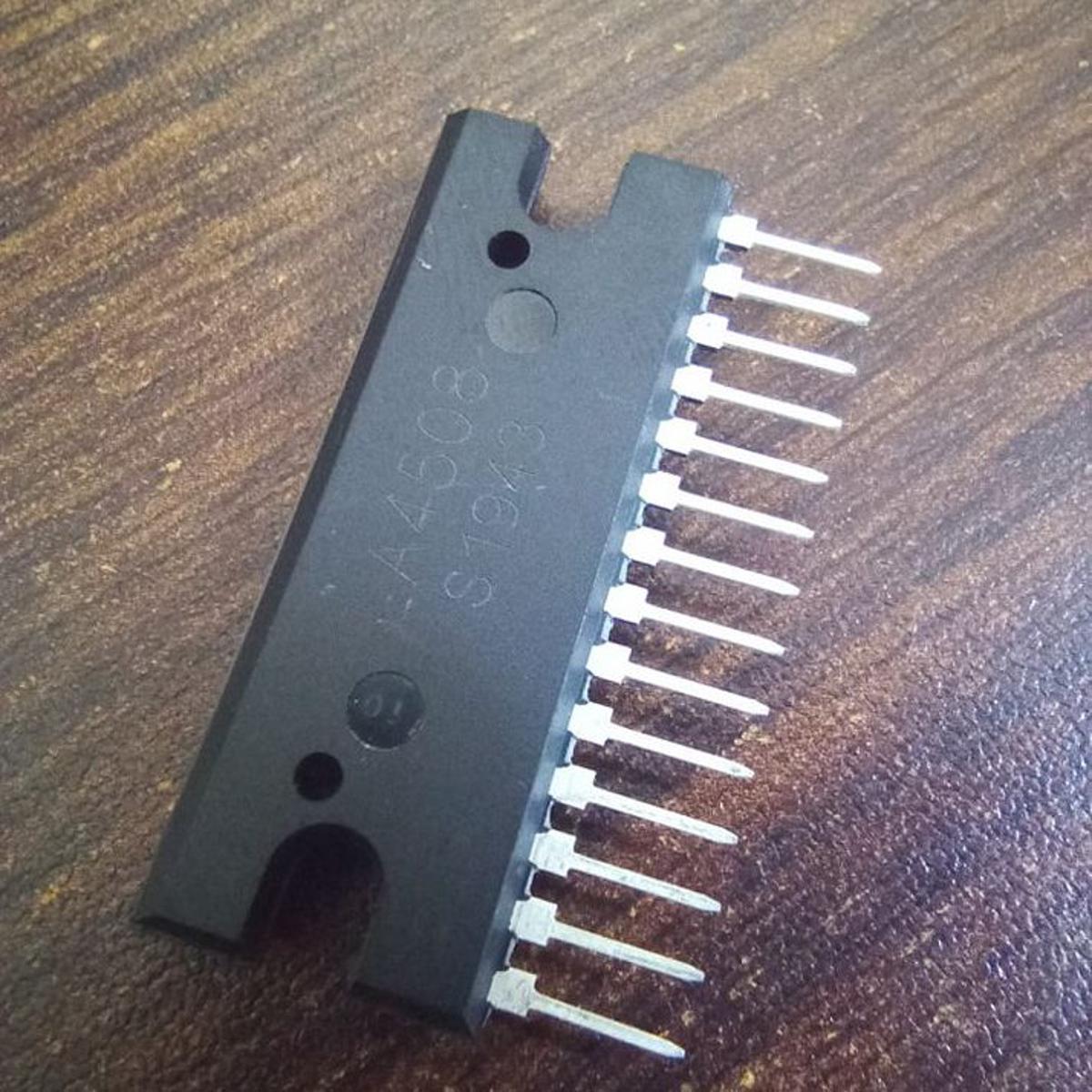

Picture of LA4508 IC LA4508 8.5W 9V 12V LA4508 Amplifier Board IC ZIP 14 Pin Leads Audio Power Amplifier Dual 2 Channels Stereo Audio Amplifier Circuit IC
Picture of LA4508 IC LA4508 8.5W 9V 12V LA4508 Amplifier Board IC ZIP 14 Pin Leads Audio Power Amplifier Dual 2 Channels Stereo Audio Amplifier Circuit IC

LA4508 IC LA4508 8.5W 9V 12V LA4508 Amplifier Board IC ZIP 14 Pin Leads Audio Power Amplifier Dual 2 Channels Stereo Audio Amplifier Circuit IC

Category: Building Materials
SKU: UDBD05345
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 77
Tk 91
Tk 91
15% OFF
0 review(s)
  • Product Name: LA4508
  • Product Category:  Comparators and Amplifiers
  • Sub Category : Audio Amplifier
  • Package Type:  ZIP-14
  • Number of Pins: 14
  • Supply Voltage Range: 9 – 12V
  • Number of Channels: 2
  • Output Power: 8.5W
  • Output Impedance 8 OHM
  • Dimension: 36.5x14x4.5mm
  • Weight approx.: 6.87gm

Call For Order : 09613-800800

Descriptions: Audio Power Amplifier LA4508 8.5W 9V 12V ZIP 14 Pin Dual 2 Channels Stereo Audio Board Amplifier IC

LA4508 is a Audio Amplifier IC with ZIP-14 package and it has 14 pins. LA4508 Audio Amplifier IC has 9 – 12V Supply Voltage Range and 2 channels. LA4508 has 8.5W output power. This Audio Amplifier IC has 8 ohm output impedance. Power amplifiers are used in the output stages of audio amplifier systems to drive a loudspeaker load. They are also known as large signal power amplifiers.

Specifications:

  • Product Name: LA4508
  • Product Category: Comparators and Amplifiers
  • Sub Category : Audio Amplifier
  • Package Type: ZIP-14
  • Number of Pins: 14
  • Supply Voltage Range: 9 – 12V
  • Number of Channels: 2
  • Output Power: 8.5W
  • Output Impedance 8 OHM
  • Dimension: 36.5x14x4.5mm
  • Weight approx.: 6.87gm

Features:

  • Minimumnumber of external parts required.
  • Small pop noise at the time of power supply ON/OFF and good starting balance.
  • Good ripple rejection : 46dB (typ.)
  • Good channel separation.
  • Small residual noise (Rg=0).
  • Low distortion over a wide range from low frequencies to high frequencies.
  • Easy to design radiator fin.
  • Built-in audio muting function..
  • Thermal protector
  • Over-voltage, surge voltage protector
  • Pin-to-pin short protector





  • Product Name: LA4508
  • Product Category:  Comparators and Amplifiers
  • Sub Category : Audio Amplifier
  • Package Type:  ZIP-14
  • Number of Pins: 14
  • Supply Voltage Range: 9 – 12V
  • Number of Channels: 2
  • Output Power: 8.5W
  • Output Impedance 8 OHM
  • Dimension: 36.5x14x4.5mm
  • Weight approx.: 6.87gm
