Description: LD33CV Voltage Regulator 3.3V

LD33CV LD33V LD33 LD1117V33 3.3V 800mA Voltage Regulator IC TO-220 Package Low Drop Positive Voltage Regulator 3.3V 800mA IC

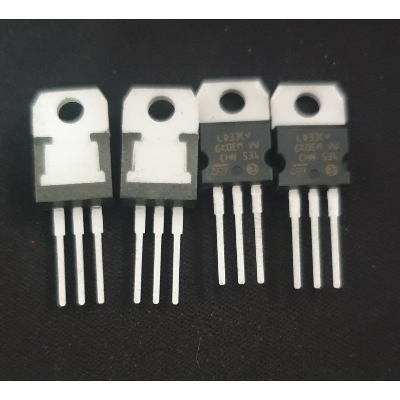

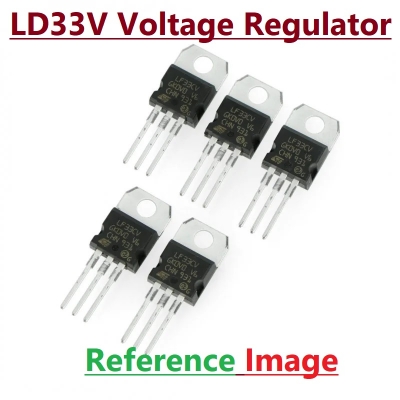

This is the basic LD33CV, LD1117V33 voltage regulator, a low drop positive regulator with a 3.3V fixed output voltage. This fixed regulator provides a great amount of stability and protection for your project and with its on ship trimming this regulator is able to reach an output voltage tolerance within ±1%. Each one of these voltage regulators can output a max current of 800mA. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the Quiescent Current flows mostly into the load. Only a very common 10μF minimum capacitor is needed for stability.

Features:

• Output Voltage: 3.3V,
• Output Current: 800mA,
• Dropout Voltage: 1V,
• Internal Current and Thermal Limit,

• Output Voltage: 3.3V,
• Output Current: 800mA,
• Dropout Voltage: 1V,
• Internal Current and Thermal Limit,
