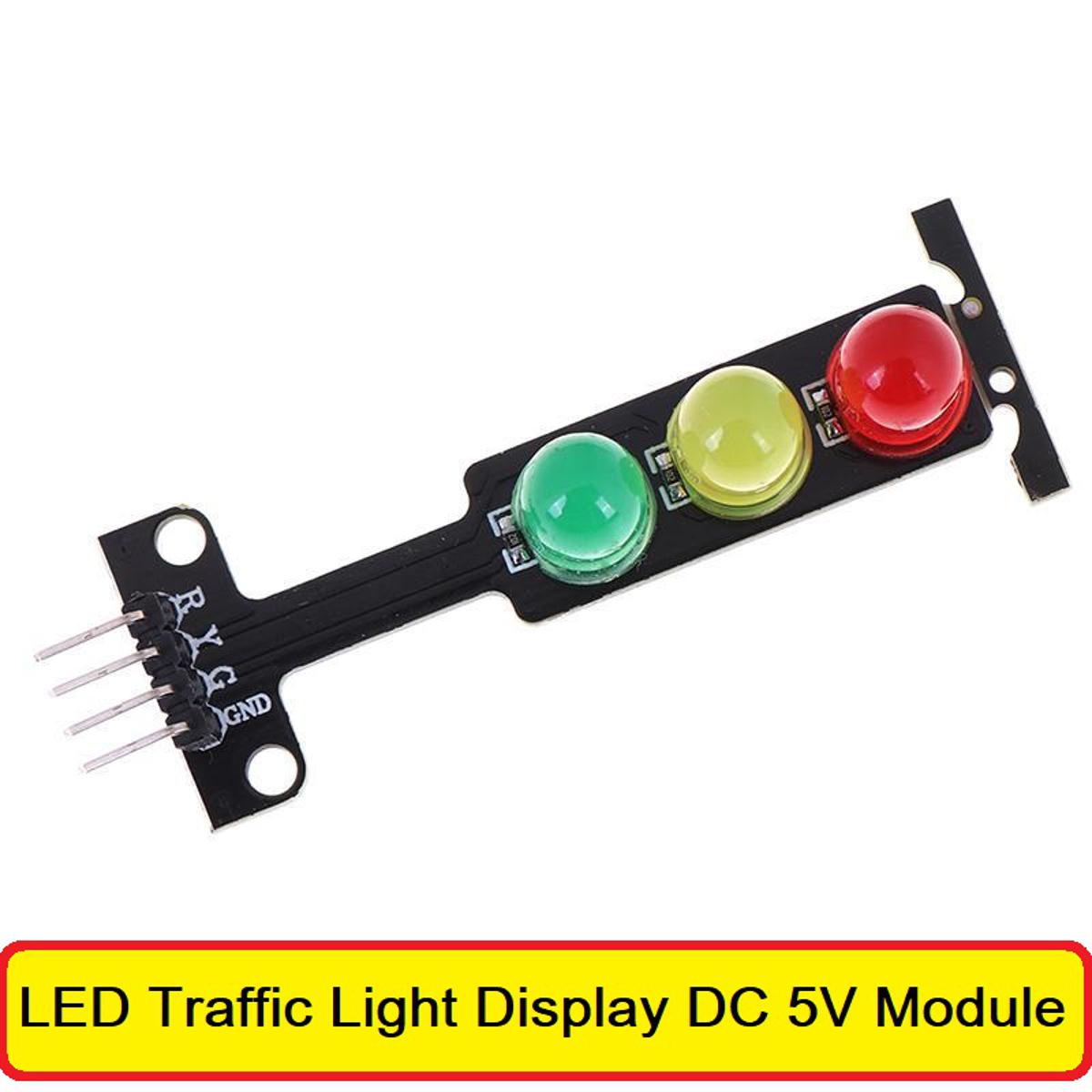

Description: 5V LED Traffic Light Module

This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.

• Small size.
• Simple wiring.
• Targeted.
• Custom installation.

Specifications:

• Size: 56 x 21 x 11mm
• Fixing hole: 3mm
• Pitch: 15mm
• Color: red yellow green
• LED: 8mm x 3
• Brightness: Normal brightness
• Voltage: 5V
• Input: Digital level
• Interface: common cathode, red, yellow and green separate control
• Platform: Arduino, Microcontroller

Features:

• Parameters : No. Parameter Value
• Color Red ,Yellow & Green
• LED 5mm
• Brightness Ordinary brightness
• Voltage 5V
• Input Digital signal output
• Interface Common cathode, red and yellow green control Individually
• Operating current Red 13mA;Yellow 13mA;Green 25mA

Use manual:

• It just support controller to contorl;
• Input High or Low level from controller to make LEDs ON or OFF.
• It can be controlled by PWM,too.

Application:

• Analog traffic signal system
• Teaching demonstration
• Indication sign
• Light alarm system

Package includes:

• 1 x 5V LED Traffic Light Module

• Parameters : No. Parameter Value
• Color Red ,Yellow & Green
• LED 5mm
• Brightness Ordinary brightness
• Voltage 5V
• Input Digital signal output
• Interface Common cathode, red and yellow green control Individually
• Operating current Red 13mA;Yellow 13mA;Green 25mA
