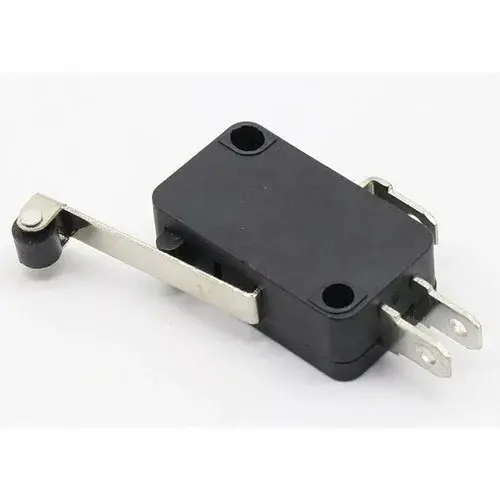

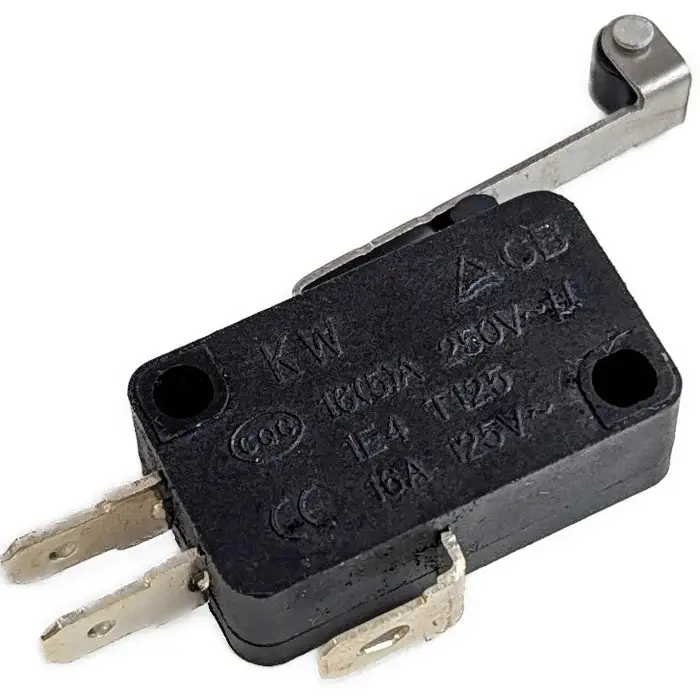

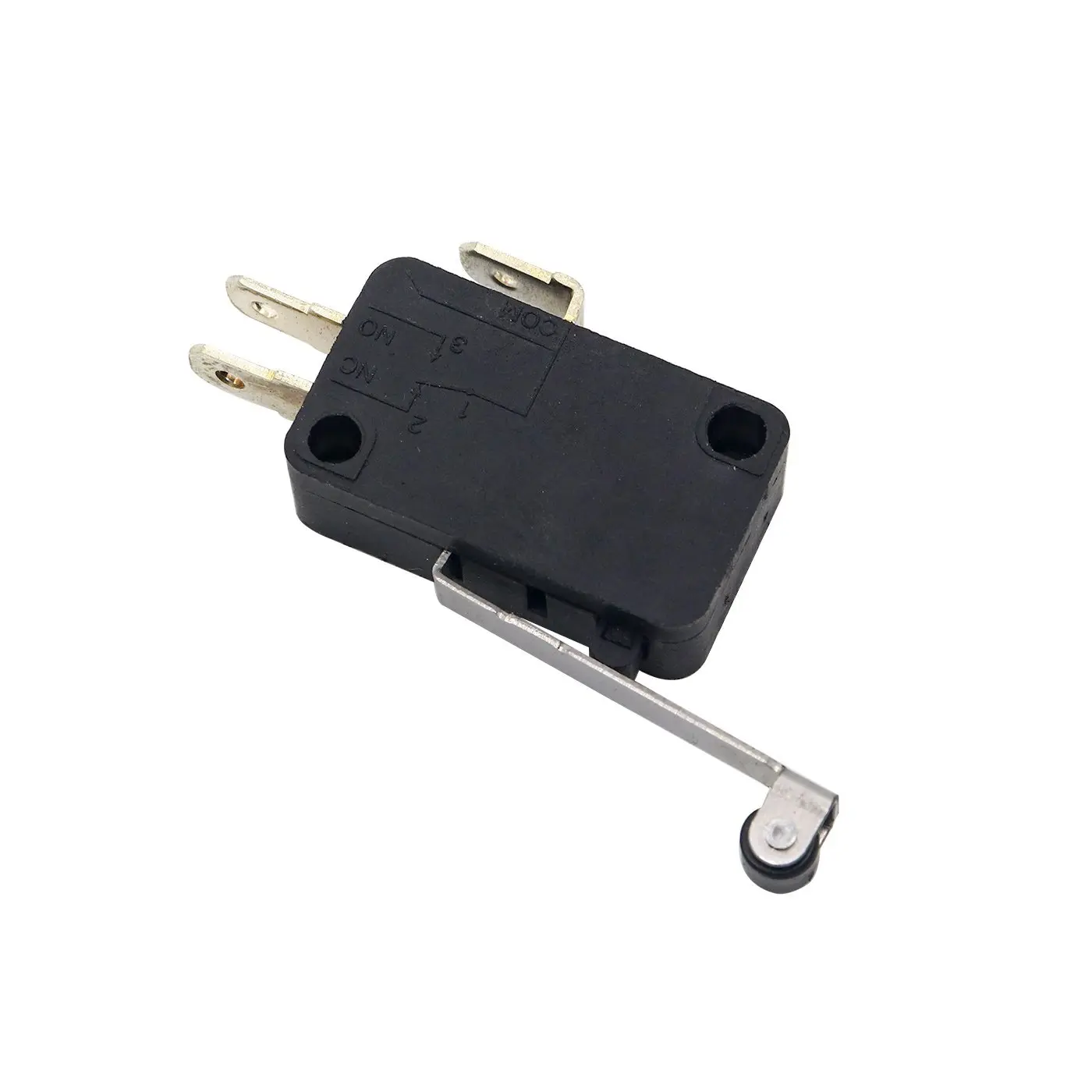

Limit Switch Micro Switch 15A 250V Roller Lever with Extended Arm | Rice Cooker Switch(Black)

Product Description

This roller lever limit switch is a precision-engineered, snap-action switch designed for reliable performance in industrial automation and control systems. It features a long-hinge roller lever actuator and a durable housing, suitable for mechanical position detection, motion control, and equipment safety interlocks.

With a standard SPDT (Single Pole Double Throw) configuration, the switch ensures consistent switching under both low and high-load conditions. Its compact form factor, screw terminals, and long operational life make it ideal for OEMs, integrators, and engineers requiring dependable limit-switch solutions.

Specifications

• Model: Z‑15GW2‑B
• Switch Type: Snap-action (SPDT: 1 NO, 1 NC)
• Actuator: Long-hinge roller lever
• Electrical Ratings:
  • Max current: 15 A
  • Voltage: 125 VAC / 250 VAC / 480 VAC (application-dependent)
• Contact Resistance: ≤ 30 mΩ
• Insulation Resistance: ≥ 100 MΩ at 500 VDC
• Mechanical Life: ≥ 1,000,000 cycles
• Electrical Life: ≥ 100,000 cycles
• Operating Temperature: –25 °C to +80 °C
• Operating Force: ~0.98 N
• Travel Distance:
  • Over-travel: ~4 mm
  • Movement differential: ~1.02 mm
• Housing Material: Nylon or phenolic resin
• Lever Material: Metal roller lever (~6.5 cm arm length)
• Mounting: Screw terminal, panel-mount capable
• Dimensions: Approx. 49.2 mm × 17.45 mm
• Protection Rating: IP00 (open type)
• Certifications: General industrial compliance (varies by region

Key Features

• High mechanical durability for long-term use
• Reliable snap-action switching mechanism
• Supports both low and high current applications
• Easy installation with screw terminals
• Long-arm roller lever for extended reach and flexibility
