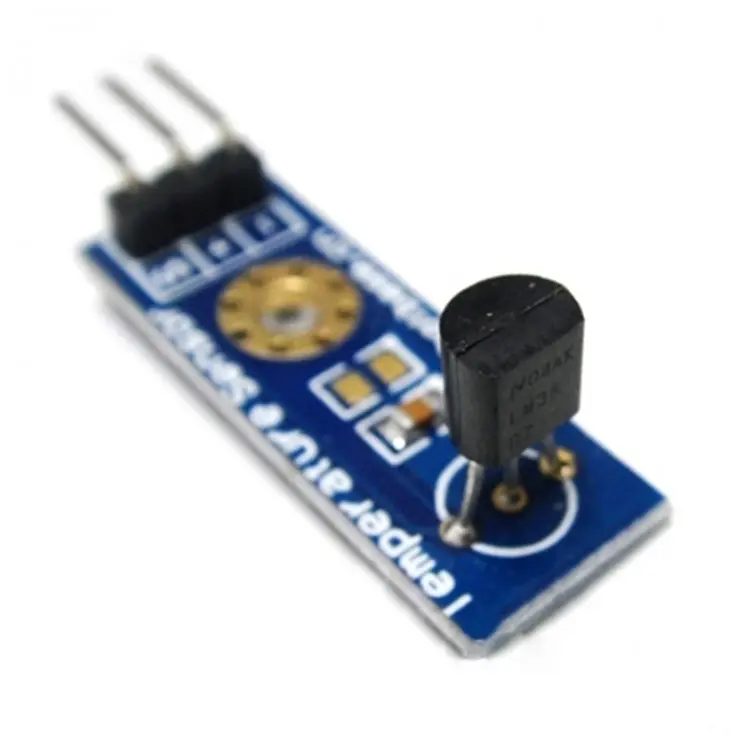

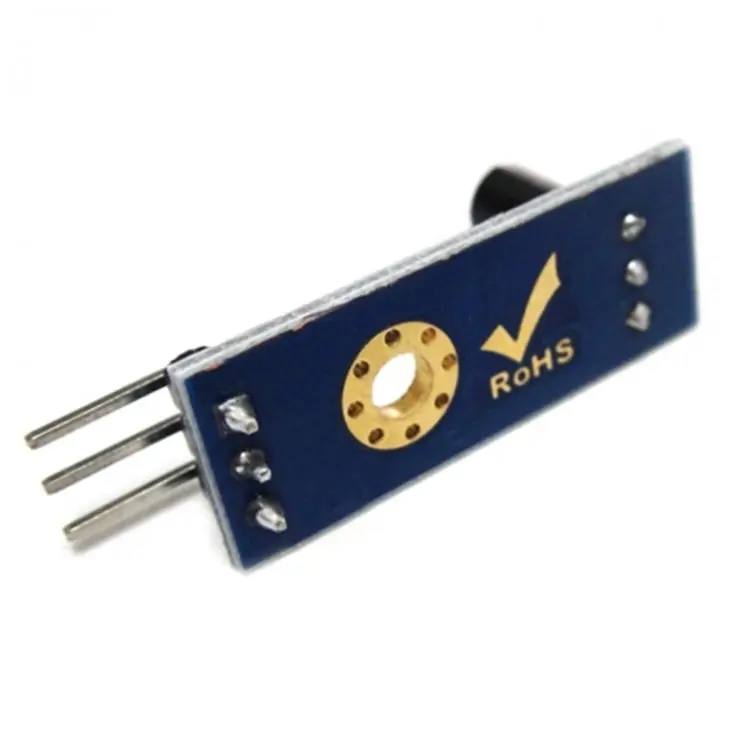

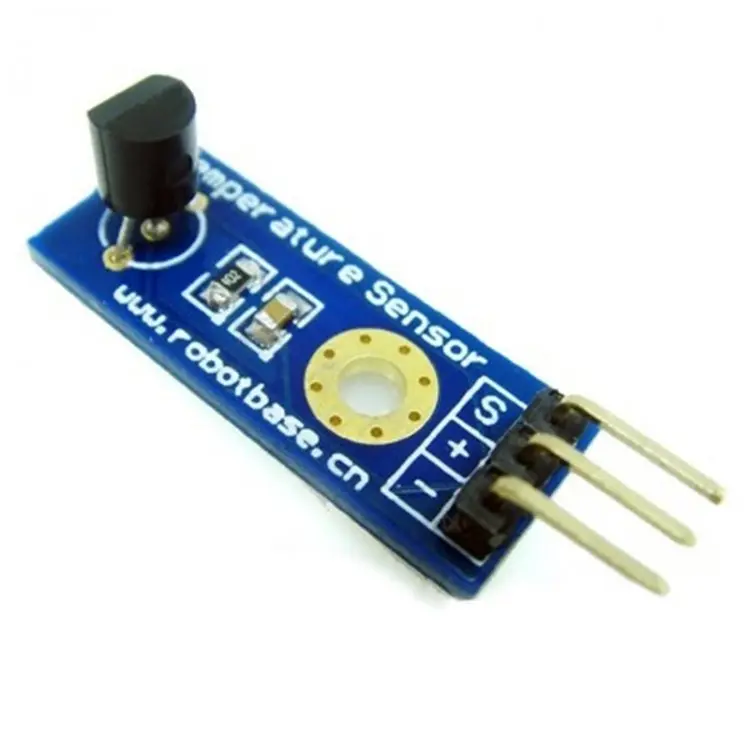

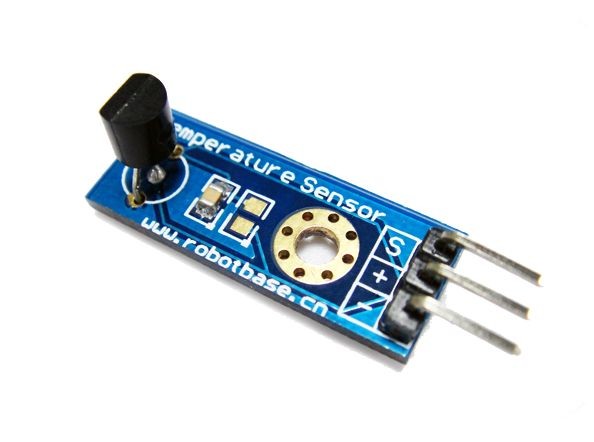

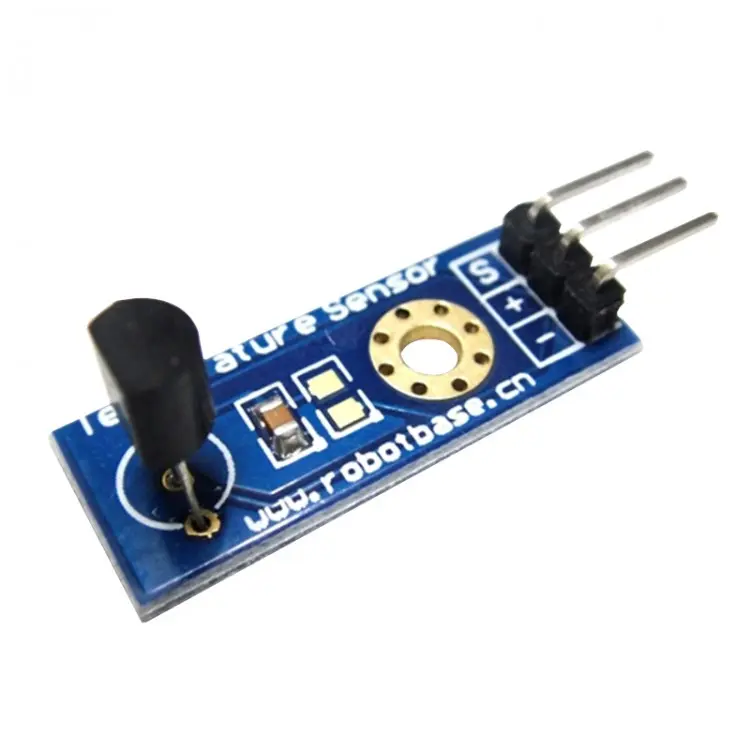

LM35 Temperature sensor Module(Blue)

Product Specification

Operating voltage : DC 4V-20V

Signal output type : Analog

Temperature measuring range : 0℃-100℃

Measuring accuracy : ±0.5℃

Linear scale factor : +10 mV/℃

Low power consumption, less than 60uA

Low output impedance, 1mA current through only 0.1Ω

Description:

- LM35 has a very high precision and comparably wide linear working range, this component's output voltage is in proportion with temperature linear. 1 degree raise, output voltage will increase 10mV. LM35 is a half conductor temp sensor, no need of external calibration or fine-tuning, can provide ±1/4℃ indoor temp precision.

- LM35 Linear Temp Sensor can be pluged at Arduino Sensor Shield V5.0 sensor expansion board or Arduino MEGA Sensor Shield V1.0 sensor expansion board, or connect with all kinds of single chip engine develop board, robot controller.
