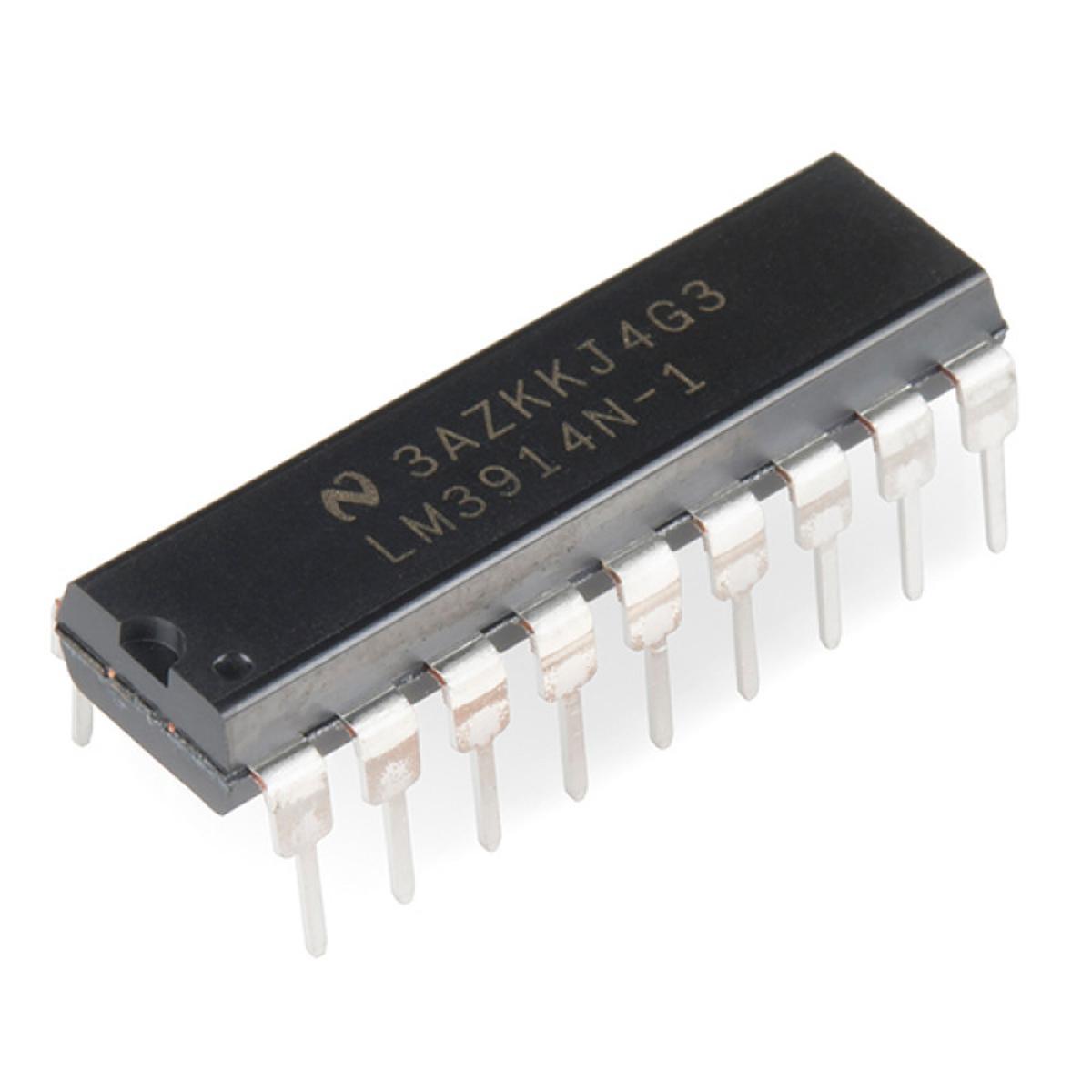

Picture of LM3914 LM3914N 3914 IC LED Driver LED Lighting Drivers Dot Display 3V To 15V Input 10 Outputs DIP-18 18 Pin Leads Dual In Line Package Chip
Picture of LM3914 LM3914N 3914 IC LED Driver LED Lighting Drivers Dot Display 3V To 15V Input 10 Outputs DIP-18 18 Pin Leads Dual In Line Package Chip

LM3914 LM3914N 3914 IC LED Driver LED Lighting Drivers Dot Display 3V To 15V Input 10 Outputs DIP-18 18 Pin Leads Dual In Line Package Chip

Category: Building Materials
SKU: UDBD04766
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 66
Tk 78
Tk 78
15% OFF
0 review(s)
  • Drives LEDs, LCDs or Vacuum Fluorescents
  • Bar or Dot Display Mode Externally Selectable by User
  • Expandable to Displays of 100 Steps
  • Internal Voltage Reference from 1.2V to 12V
  • Operates with Single Supply of Less than 3V
  • Inputs Operate Down to Ground
  • Output Current Programmable from 2 mA to 30 mA
  • No Multiplex Switching or Interaction Between Outputs
  • Input Withstands ±35V without Damage or False Outputs
  • LED Driver Outputs are Current Regulated, Open-collectors
  • Outputs can Interface with TTL or CMOS Logic
  • The Internal 10-step Divider is Floating and can be Referenced to a Wide Range of Voltages

Call For Order : 09613-800800





  • Drives LEDs, LCDs or Vacuum Fluorescents
  • Bar or Dot Display Mode Externally Selectable by User
  • Expandable to Displays of 100 Steps
  • Internal Voltage Reference from 1.2V to 12V
  • Operates with Single Supply of Less than 3V
  • Inputs Operate Down to Ground
  • Output Current Programmable from 2 mA to 30 mA
  • No Multiplex Switching or Interaction Between Outputs
  • Input Withstands ±35V without Damage or False Outputs
  • LED Driver Outputs are Current Regulated, Open-collectors
  • Outputs can Interface with TTL or CMOS Logic
  • The Internal 10-step Divider is Floating and can be Referenced to a Wide Range of Voltages
