• [Ue] rated operational voltage

Power circuit: <= 690 V AC 50/60 Hz

• [Ui] rated insulation voltage
• 660 V conforming to IEC 60947-4-1
• [Uimp] rated impulse withstand voltage
• 6 kV coil not connected to the power circuit conforming to IEC 60947
• Utilisation category
• AC-3
• AC-1
• Poles description
• 3
• Auxiliary contact composition
• 1NO + 1 NC
• [Ie] rated operational current
• 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• 60 A (at <60 °C) at <= 415 V AC AC-1 for power circuit
• Motor power kW
• 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
• [Uc] control circuit voltage
• 220...230Vac 50Hz
• 220...240Vac 60Hz
• Control circuit voltage limits

Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C)

Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)

• Electrical durability, load AC-3
• 800 000 cycles
• Mechanical durability
• 8 000 000 cycles
• Mounting support
• Plate
• DIN rail
• Dimensions and internal circuit
• LC1-D5011 contactor size LC1-D4011 circuit

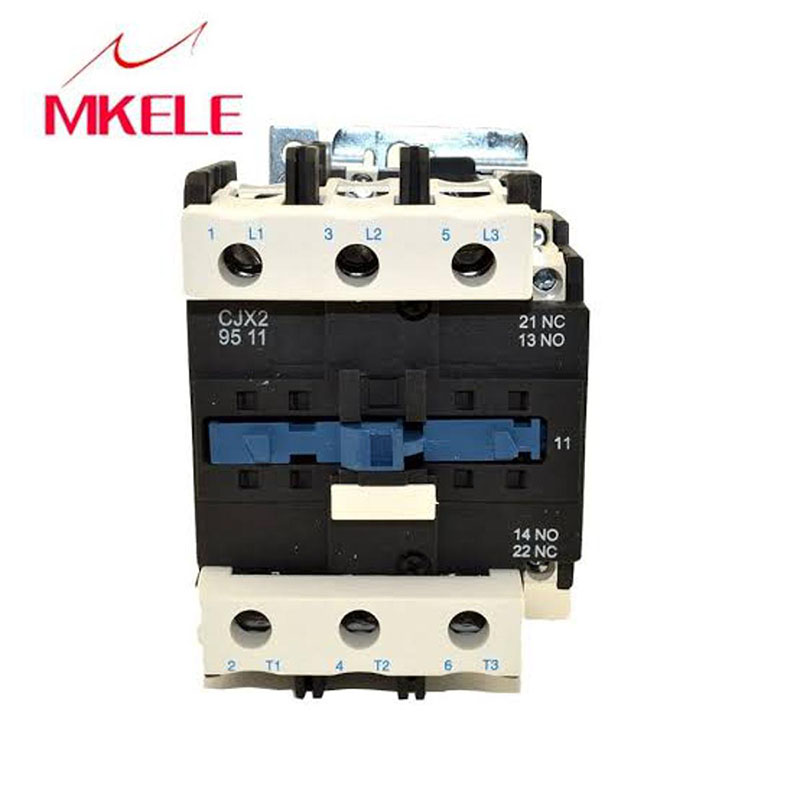

Magnetic Contactor 40Amp

Coill: 220Vac

[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz[Ui] rated insulation voltage

660 V conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV coil not connected to the power circuit conforming to IEC 60947

Utilisation categoryAC-3
AC-1Poles description3Auxiliary contact composition1NO + 1 NC[Ie] rated operational current40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
60 A (at <60 °C) at <= 415 V AC AC-1 for power circuitMotor power kW18.5 kW at 380...400 V AC 50/60 Hz (AC-3)[Uc] control circuit voltage220...230Vac 50Hz
220...240Vac 60HzControl circuit voltage limitsOperational: 0.85...1.1 Uc at 50 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)Electrical durability, load AC-3800 000 cyclesMechanical durability

8 000 000 cycles

Mounting supportPlate
DIN rail

Dimensions and internal circuit
