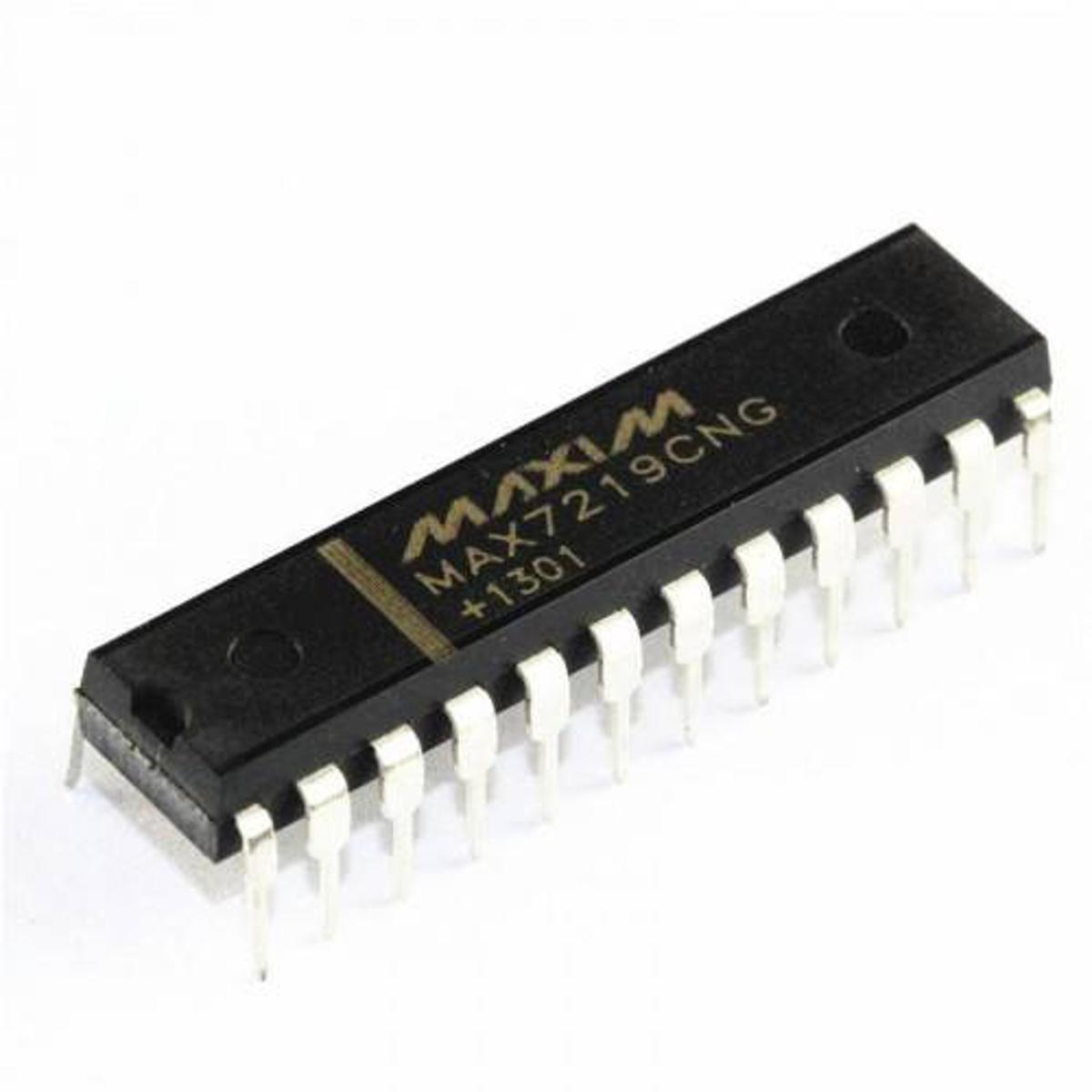

Description: MAX7219CNG MAX7219 7219 24Pin 8-Digit LED Display Driver IC

The MAX7219CNG is a compact, serial input/output common-cathode display driver that can interface microprocessors to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8×8 static RAM that stores each digit.

Communication with the MAX7219 is achieved through a convenient 4-wire serial interface (supports SPI). Individual digits may be addressed and updated without rewriting the entire display. Only one external resistor is required to set the segment current for all LEDs.

The IC also includes a 150μA low-power shutdown mode, analog and digital brightness control, a scan limit register that allows the user to display from 1 to 8 digits, and a test mode that forces all LEDs on.

Features:

1. 10MHz Serial Interface
2. Individual LED Segment Control
3. Decode/No-Decode Digit Selection
4. 150μA Low-Power Shutdown (Data Retained)
5. Digital and Analog Brightness Control
6. Display Blanked on Power-Up
7. Drive Common-Cathode LED Display
8. Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221)
9. SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
10. 24-Pin DIP and SO Packages

• 10MHz Serial Interface
• Individual LED Segment Control
• Decode/No-Decode Digit Selection
• 150μA Low-Power Shutdown (Data Retained)
• Digital and Analog Brightness Control
• Display Blanked on Power-Up
• Drive Common-Cathode LED Display
• Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221)
• SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
• 24-Pin DIP and SO Packages
