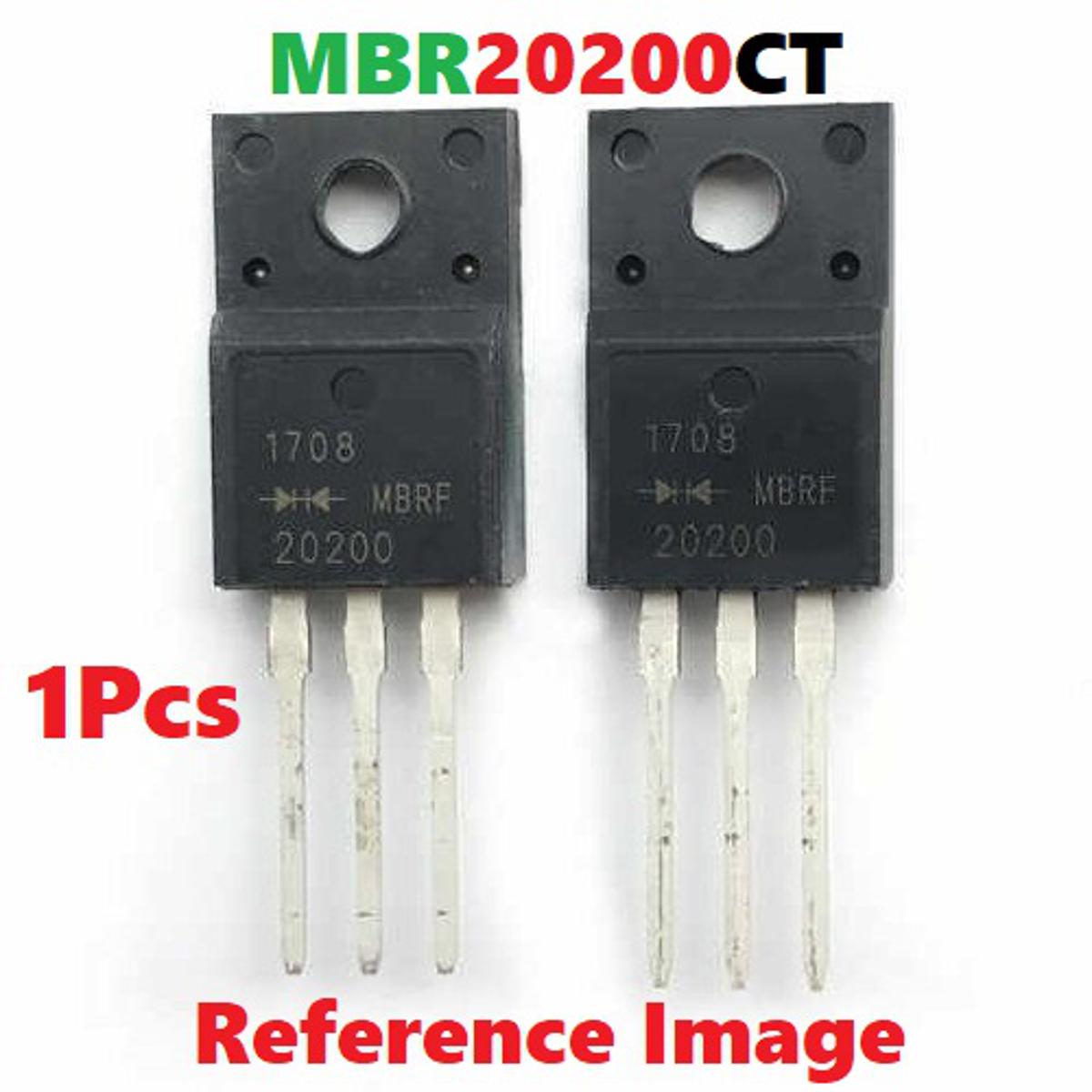

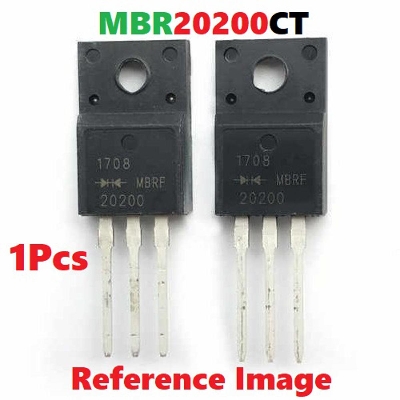

Description: MBR20200CT MBR20200C MBR20200 20A 200V Schottky Diode TO-220 MBR 20200 Power Rectifier

MBR20200 is 20A 200V Schottky Barrier Diode has many useful applications from rectification, signal conditioning and switching, through to TTL and CMOS logic gates due mainly to their low power and fast switching speeds.

Specification:

• Diode Type: Schottky
• Voltage: DC Reverse (Vr) (Max) 200V
• Current: Average Rectified (Io) (per Diode) 20A
• Voltage: Forward (Vf) (Max) @ If 820mV @ 60A
• Speed: Fast Recovery =< 500ns, > 200mA (Io)
• Current: Reverse Leakage @ Vr 1mA @ 100V
• Operating Temperature – Junction: -55°C ~ 150°C
• Mounting Type: Through Hole
• Package / Case: TO-220

Features:

• Low Forward Voltage
• Low Power Loss/High Efficiency
• High Surge Capacity
• 175°C Operating Junction Temp

Applications:

• Power Supply − Output Rectification
• Power Management
• Instrumentation

• Diode Type: Schottky
• Voltage: DC Reverse (Vr) (Max) 200V
• Current: Average Rectified (Io) (per Diode) 20A
• Voltage:  Forward (Vf) (Max) @ If 820mV @ 60A
• Speed: Fast Recovery =< 500ns, > 200mA (Io)
• Current: Reverse Leakage @ Vr 1mA @ 100V
• Operating Temperature – Junction: -55°C ~ 150°C
• Mounting Type: Through Hole
• Package / Case: TO-220
