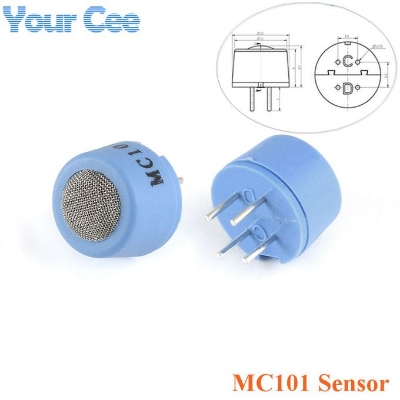

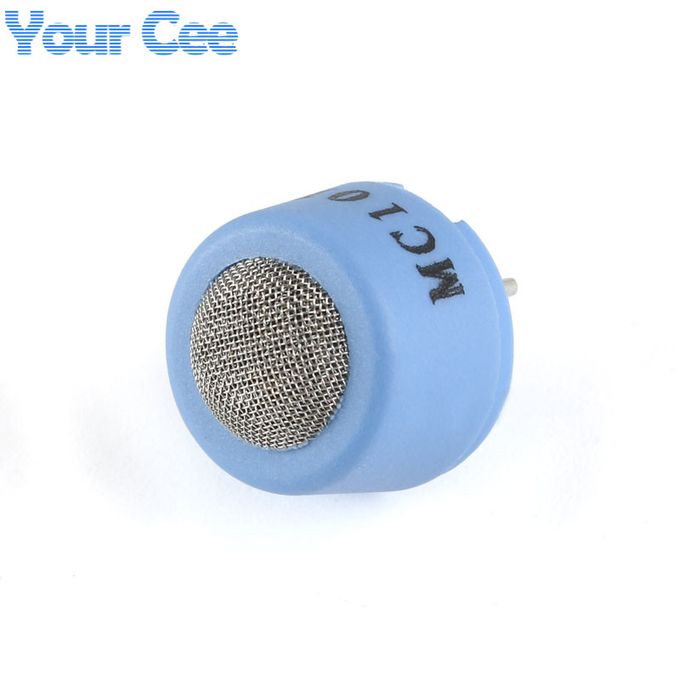

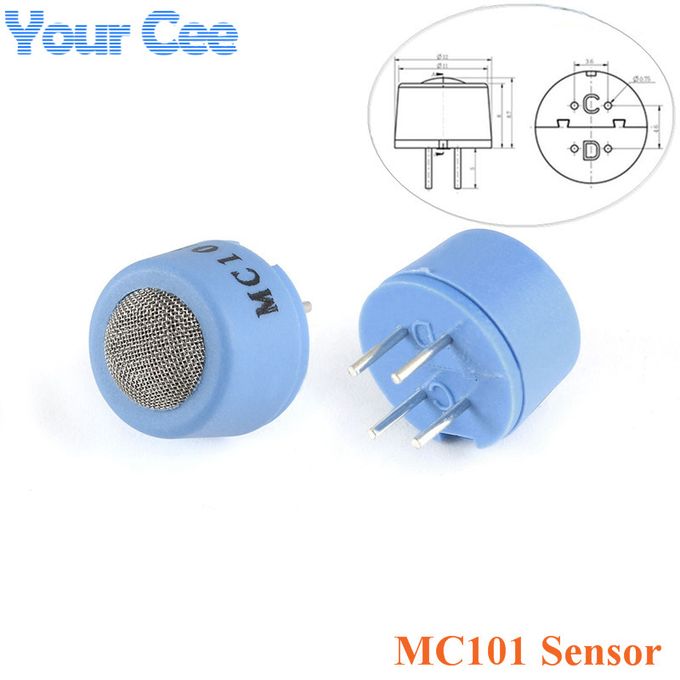

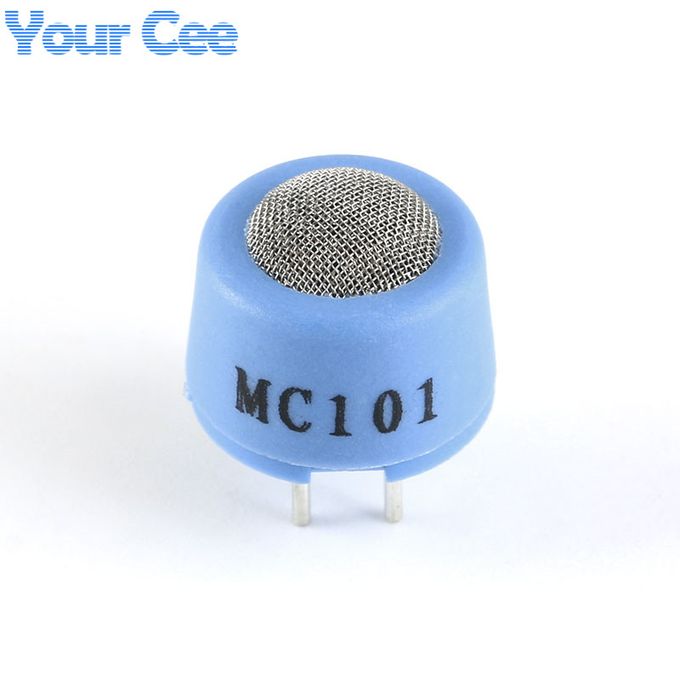

Description: MC101 Catalytic Flammable Gas Sensor Methane Sensor

MC101 Catalytic Flammable Gas Sensor Methane Sensor MC101 Methane Sensor MC101 Gas Sensor Catalytic Combustion Sensor 3V 4 Pin Leads MC101 Sensor

Winsen Electronics, research and produce MC101 catalytic combustion/flammable gas sensor, with 0~100%LEL detection range, gas sensor with linear output. MC101 adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.

Features:

• 100% brand new and high quality.
• Usage: Gas sensor
• Type: Gas sensor
• Theory: Resistance sensor
• Output: Analog sensor
• Material: Polymer

Specification:

• Model: MC101
• Sensor Type: Catalytic Type
• Standard Encapsulation: Plastic
• Working voltage(V): 3.0±0.1
• Pin : 4 Pin Leads
• Working current(mA): 110±10
• Sensitivity (mV): 1% CH4 25～50
• 1% C3H8: 30～70
• Linearity: ≤5%
• Measuring range(%LEL): 0～100
• Response Time (90%): ≤10s
• Recovery Time (90%): ≤30s
• Working Environment: -40～+70℃ <95%RH
• Storage Environment: -20～+70℃ <95%RH
• Size: φ12×9.5

Applications :

It is widely used in industrial occasion to detect the concentration of natural gas, LPG, CO and alkanes. It is also used in combustible gas leakage alarm system, combustible gas detector and gas concentration meter and so on.

Note:

• There might be a bit color distortions due to different computer resolutions.
• There might be size errors due to different computer resolutions.

• Model: MC101
• Sensor Type: Catalytic Type
• Standard Encapsulation: Plastic
• Working voltage(V): 3.0±0.1
• Pin : 4 Pin Leads
• Working current(mA): 110±10
• Sensitivity (mV): 1% CH4 25～50
• 1% C3H8: 30～70
• Linearity: ≤5%
• Measuring range(%LEL): 0～100
• Response Time (90%): ≤10s
• Recovery Time (90%): ≤30s
• Working Environment: -40～+70℃ <95%RH
• Storage Environment: -20～+70℃ <95%RH
• Size: φ12×9.5
