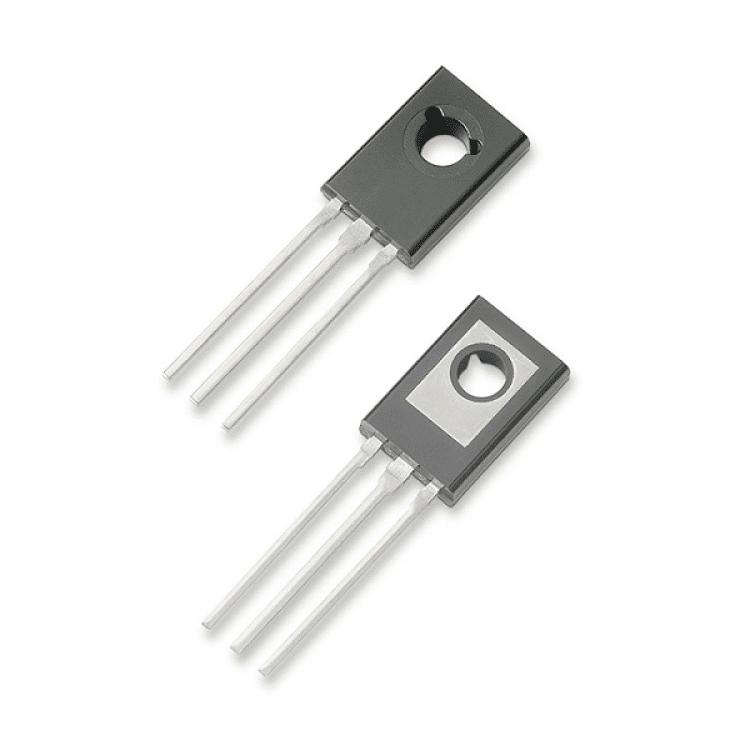

Picture of MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor - Minimalistic Sophistication

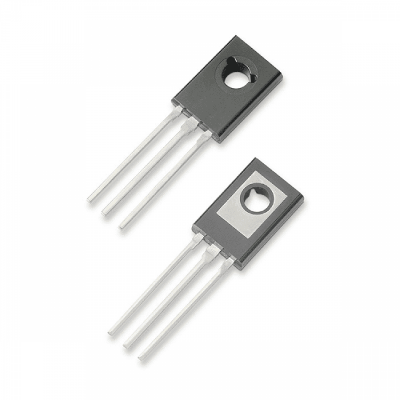

Picture of MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor - Minimalistic Sophistication

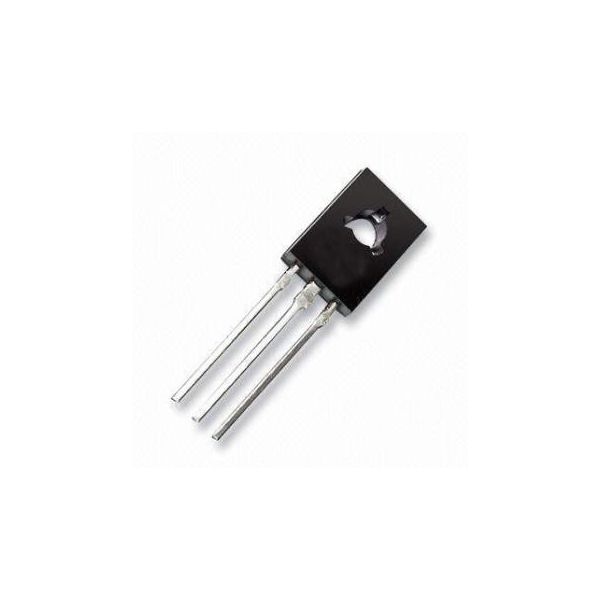

Picture of MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor - Minimalistic Sophistication
Picture of MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor - Minimalistic Sophistication

MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor - Minimalistic Sophistication

Category: Building Materials
SKU: UDBD06477
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 44
Tk 52
Tk 52
15% OFF
0 review(s)
  • Part number: 106D1
  • Package content: TO225AA.
  • Description: THYRISTOR SCR 4A 400V TO225AA
  • Supplier: SICSTOCK
  • SCR type: sensitive door.
  • Voltage: off state: 400 V.
  • Voltage – Door trigger (Vgt) (Max): 1 V.
  • Voltage: on state (Vtm) (maximum): 2 V.
  • Current – on state (It (AV)) (Max ): 2.55 A.
  • Current – On State (It (RMS)) (Max): 4A
  • Current – Gate Trigger (gt) (Max): 200 µA.
  • Current – Hold (Ih) (Max): 5 mA.
  • Current – Off state (Max): 10 µA.
  • Current – Non-Sudden Surge 50, 60 Hz (Itsm): 25 A @ 60 Hz.
  • Operating Temperature: -40.0 ° F ~ 230.0 ° F.
  • Mounting Type: Through Hole.
  • Vendor Device Package: TO225AA.

Call For Order : 09613-800800

Description: 106D1 Thyristor 4A TO-255AA

MCR106 C106D1 C106MG C106DG 4A 400V 0.5W TO-225AA Thyristor SCR Silicon Control Rectifier 3 Pin Leads Transistor

The C106DG is a 3-pin Sensitive Gate Silicon Controlled Rectifier is a glassivated PNPN device designed for high volume consumer applications such as temperature, light and speed control, process and remote control and warning systems, where reliability of operation is important.

Sensitive Gate Silicon Controlled Rectifier is a glassivated PNPN device designed for high volume consumer applications such as temperature; light and speed control; process and remote control; and warning systems, where reliability of operation is important.

Specification:

  • Part number: 106D1
  • Package content: TO225AA.
  • Description: THYRISTOR SCR 4A 400V TO225AA
  • Supplier: SICSTOCK
  • SCR type: sensitive door.
  • Voltage: off state: 400 V.
  • Voltage – Door trigger (Vgt) (Max): 1 V.
  • Voltage: on state (Vtm) (maximum): 2 V.
  • Current – on state (It (AV)) (Max ): 2.55 A.
  • Current – On State (It (RMS)) (Max): 4A
  • Current – Gate Trigger (gt) (Max): 200 µA.
  • Current – Hold (Ih) (Max): 5 mA.
  • Current – Off state (Max): 10 µA.
  • Current – Non-Sudden Surge 50, 60 Hz (Itsm): 25 A @ 60 Hz.
  • Operating Temperature: -40.0 ° F ~ 230.0 ° F.
  • Mounting Type: Through Hole.
  • Vendor Device Package: TO225AA.

Features:

  • Glassivated surface for reliability and uniformity
  • Practical level triggering and holding characteristics
  • Flat, rugged, thermopad construction for low thermal resistance, high heat dissipation & durability
  • Sensitive gate triggering
  • 0.5W Forward peak gate power
  • 0.1W Forward average gate power

Applications:

  • Lighting, Industrial






  • Part number: 106D1
  • Package content: TO225AA.
  • Description: THYRISTOR SCR 4A 400V TO225AA
  • Supplier: SICSTOCK
  • SCR type: sensitive door.
  • Voltage: off state: 400 V.
  • Voltage – Door trigger (Vgt) (Max): 1 V.
  • Voltage: on state (Vtm) (maximum): 2 V.
  • Current – on state (It (AV)) (Max ): 2.55 A.
  • Current – On State (It (RMS)) (Max): 4A
  • Current – Gate Trigger (gt) (Max): 200 µA.
  • Current – Hold (Ih) (Max): 5 mA.
  • Current – Off state (Max): 10 µA.
  • Current – Non-Sudden Surge 50, 60 Hz (Itsm): 25 A @ 60 Hz.
  • Operating Temperature: -40.0 ° F ~ 230.0 ° F.
  • Mounting Type: Through Hole.
  • Vendor Device Package: TO225AA.
