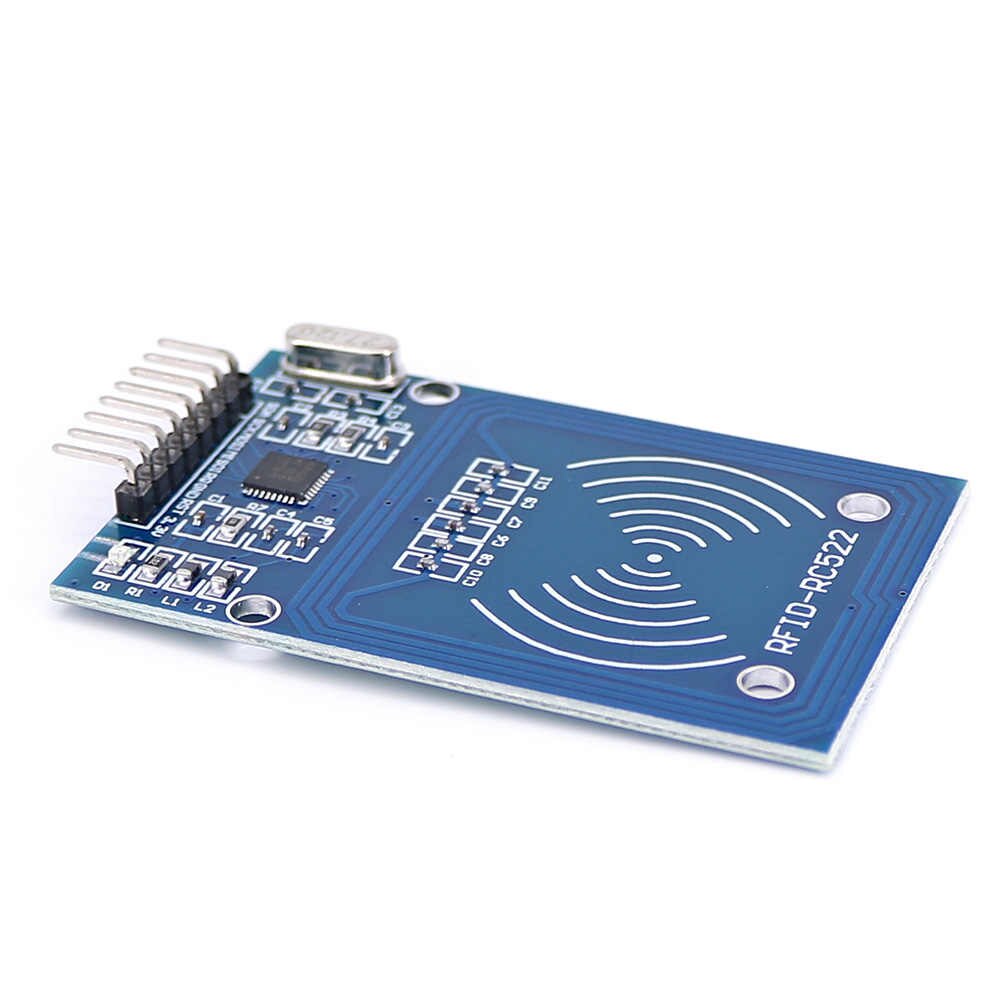

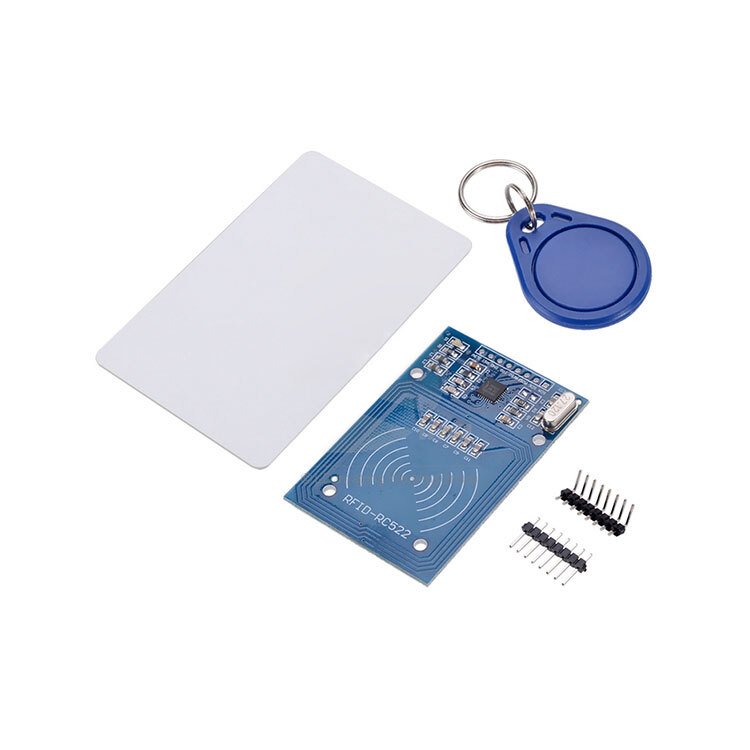

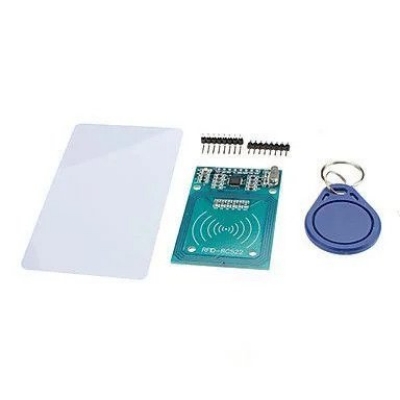

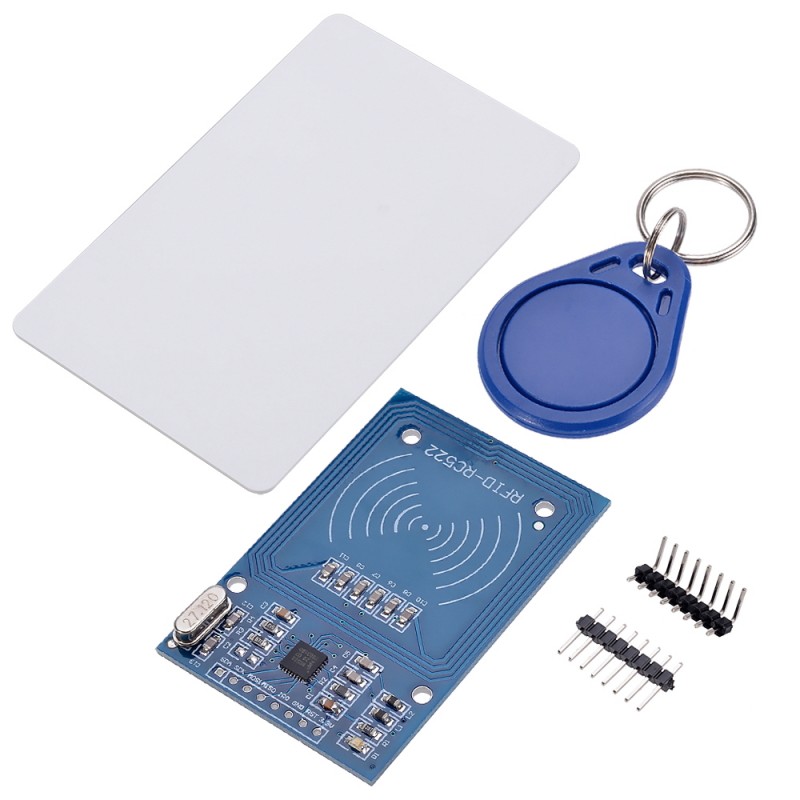

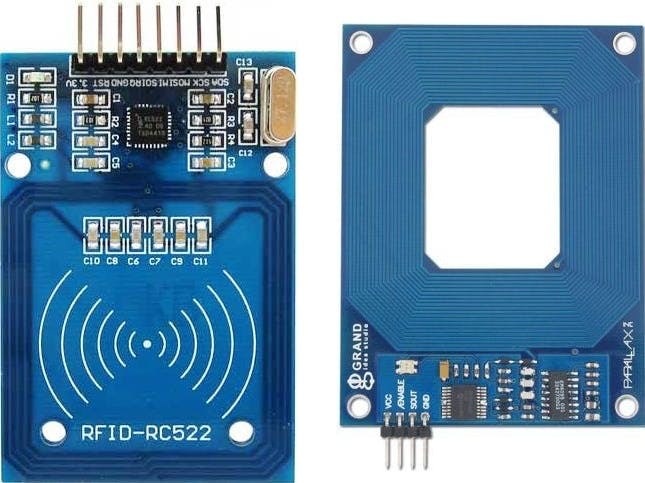

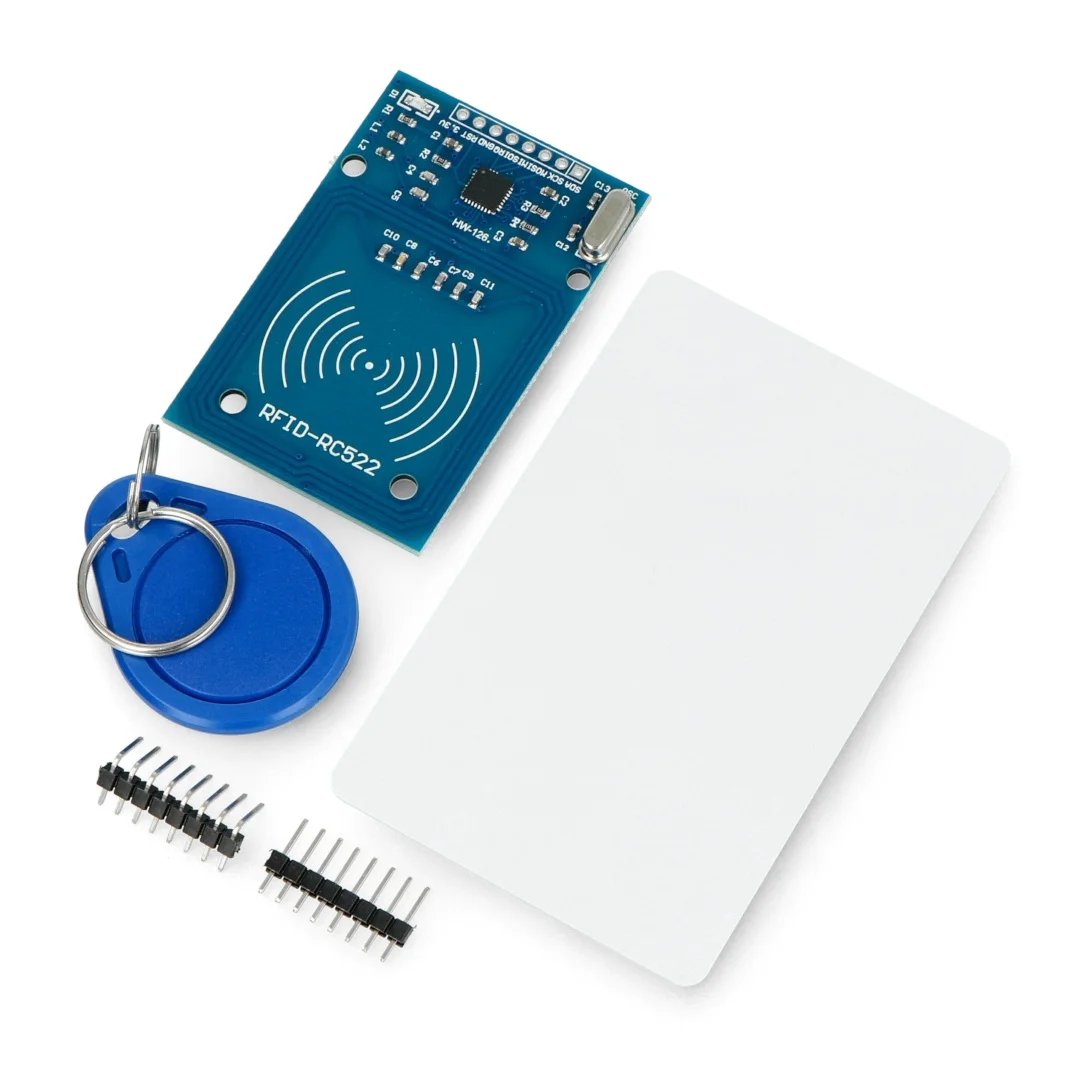

MFRC-522 RFID RF IC card inductive module with S50 Fudan card key chain(Blue)

This module adopts Philips MFRC522 original reader circuit chip design, which is easy to use, low cost, and suitable for equipment development, development of advanced applications such as reader users, and the need for RF card terminal design/production of the user. This module can be loaded directly into a variety of reader molds. The module uses a voltage of 3.3V, through the SPI interface, a few lines can be directly connected to the user any CPU board communication module can guarantee stable and reliable work.

• Current :13-26mA / DC 3.3V
• Idle Current :10-13mA / DC 3.3V
• Sleep current: <80uA
• Peak current: <30mA
• Operating Frequency: 13.56MHz
• Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
• Product Physical Characteristics: Dimensions: 40mm × 60mm
• Environmental Operating temperature: -20-80 degrees Celsius
• Environment Storage temperature: -40-85 degrees Celsius
• Relative Humidity: 5% -95%
• Module Interface SPI Parameters
• Data Transfer Rate: Max. 10Mbit /s
