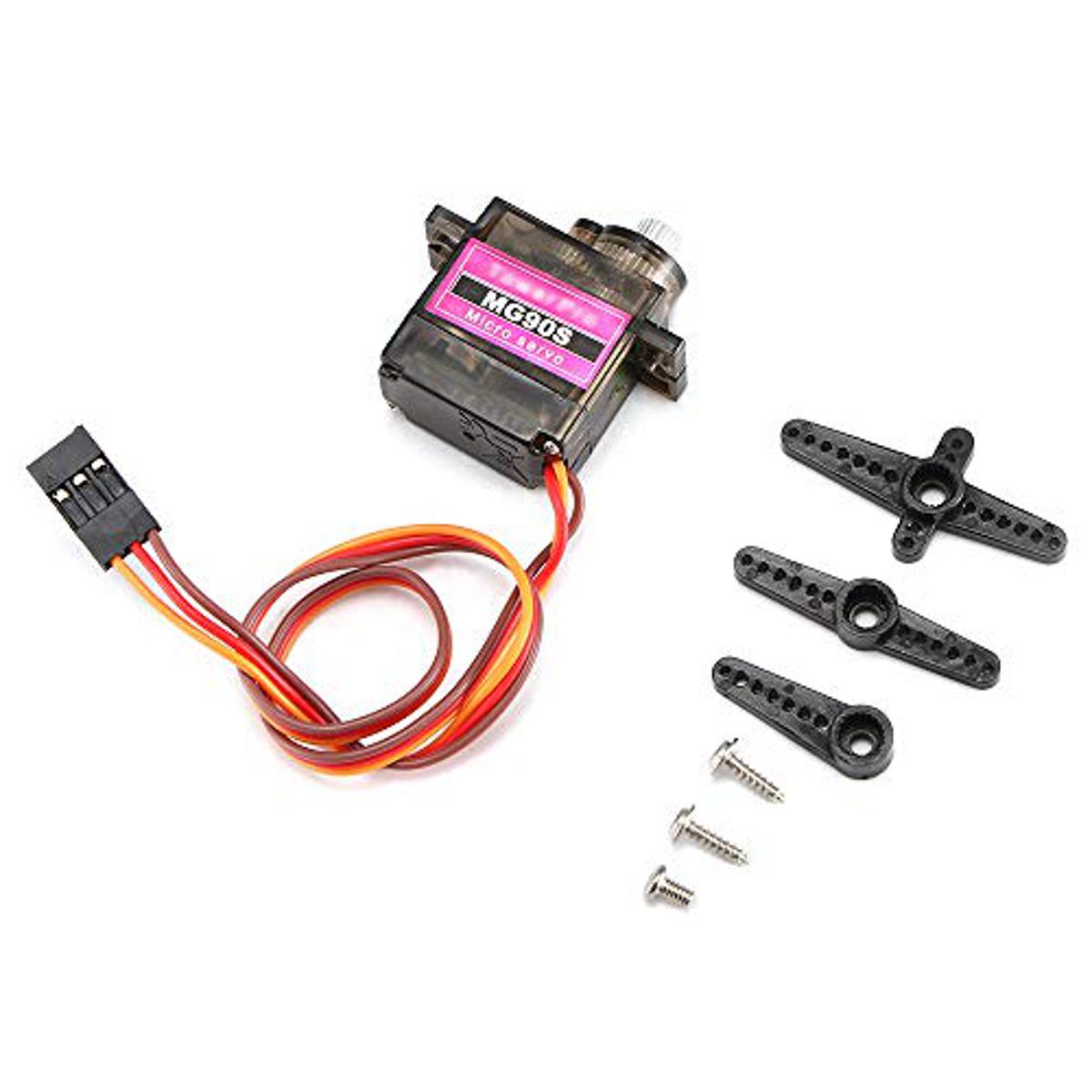

Description: MG90S DC 4.8v 6v Metal Gear Servo Motor 180° Degree

The MG90 is a nice small RC servo ideal for projects where size and weight are important. RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.

Specifications:

• Product: MG90S Servo
• Operating Voltage: 4.8V to 6V (Typically 5V)
• Stall Torque: 1.8 kg/cm (4.8V)
• Max Stall Torque: 2.2 kg/cm (6V)
• Operating speed is 0.1s/60° (4.8V)
• Gear Type: Metal
• Rotation : 0°-180°
• Package includes gear horns and screws
• Weight: 12.2g
• Dimension: 22.8×12.2×28.5mm

Feature:

• MG90S micro servo motor, updated SG90 serve motor. Metal Gear / Full Ball Bearing / Light Weight / Less Noise
• Mini micro Servo 450Dead band width: 10usec.
• Fit for ALL kind of R/C Toys and also make electronics DIY based on Arduino ,Raspberry Pi, etc.
• Gear Micro Servo Motor For robot Plane Helicopter Boat Car Horns servo Remote controlled aircraft for DIY.
• The model is suitable for ordinary small electric aircraft models and is not recommended in large fixed wing and electric helicopter.
• The use of superior waterproof ABC hard shell .If you encounter heavy rain in the wild , you needn’t worry about the drone get wet. great perfectly to protection your UAV does not suffer any damage .
• Full ball bearing and metal gear provides high durability.
• Fine workmanship and good performance.
• Light in weight.
• Low noise.
• Easy to install.
• Easy to use.
• Used for mini RC car, ship, helicopter and airplane.

Wire Description:

• RED – Positive
• Brown – Negative
• Orange – Signal

• Product: MG90S Servo
• Operating Voltage: 4.8V to 6V (Typically 5V)
• Stall Torque: 1.8 kg/cm (4.8V)
• Max Stall Torque: 2.2 kg/cm (6V)
• Operating speed is 0.1s/60° (4.8V)
• Gear Type: Metal
• Rotation : 0°-180°
• Package includes gear horns and screws
• Weight: 12.2g
• Dimension: 22.8×12.2×28.5m
