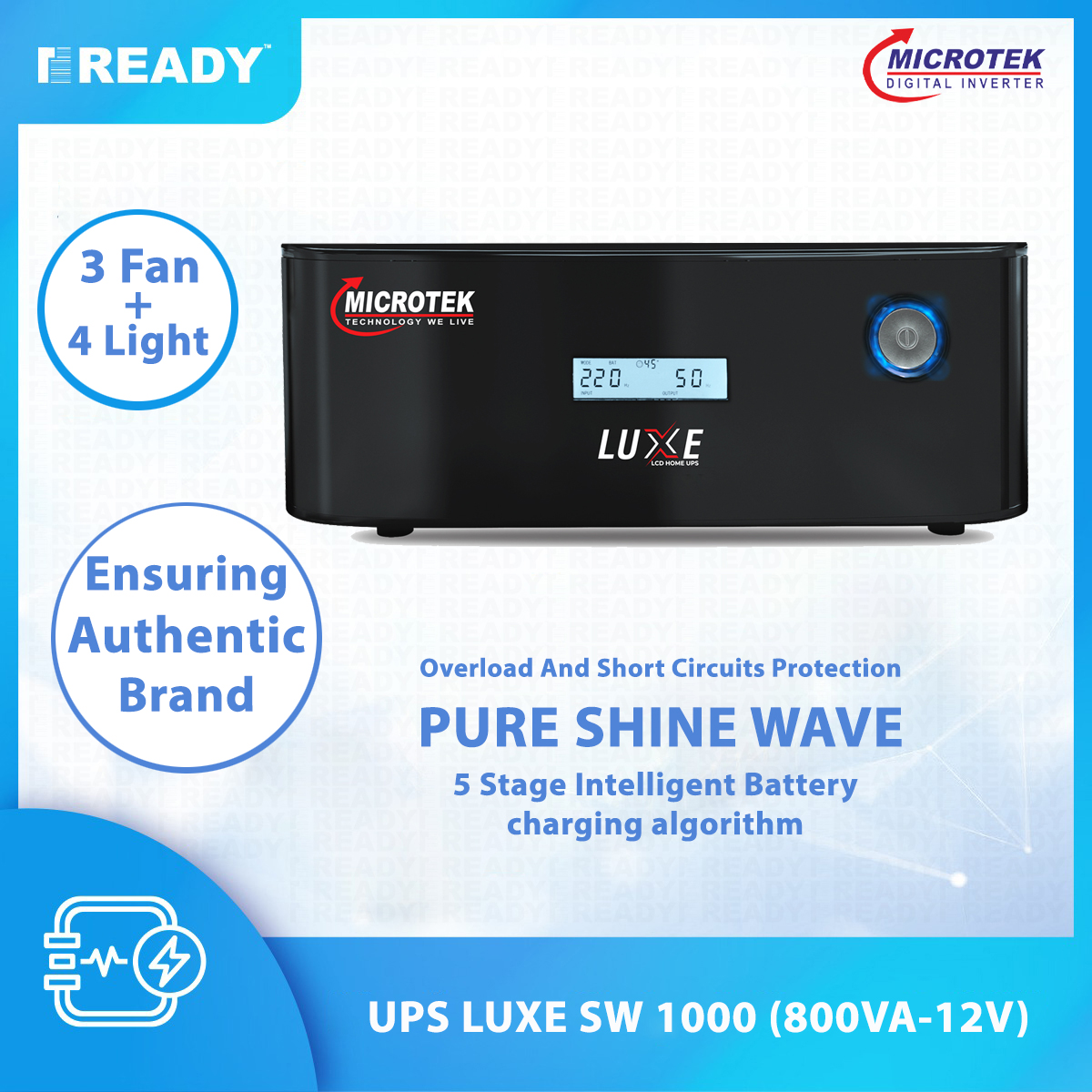

UPS LUXE SINEWAVE 1000 (800VA-12V)

INPUT VOLTAGE

INVERTER MODE: 100V~300V

VA/WATTAGE

800VA / 640W

OUTPUT VOLTAGE ON MAINS MODE

SAME AS INPUT

OUTPUT VOLTAGE / FREQUENCY ON UPS MODE

210V + 10% / 50Hz + 0.1Hz

SWITCHING FROM MAINS TO UPS & UPS TO MAINS

AUTOMATIC

OUTPUT WAVEFORM ON MAINS MODE

SAME AS INPUT

OUTPUT WAVEFORM ON UPS MODE

PURE SHINEWAVE

BATTERY CHARGING CURRENT

Constant Chaging approx 10% of the rated battery Current in AH

CHARGER

Power Factor Controlled Boost Technology

EFFICIENCY

>80%

UPS OVERLOAD / UPS SHORT CIRCUIT

110% / 300%

UPS TRANSFER TIME

< 15msec.

BROWN OUT MAINS VOLTAGE

100V + 40V

TECHONOCLOGY

Micro Controller Based Intelligent control Design

AUTO RESET FEATURE

Yes

OPERATING TEMPERATURE

0~45°C

DIMENTION LxWxH (MM)

382 x 339 x 193 mm
