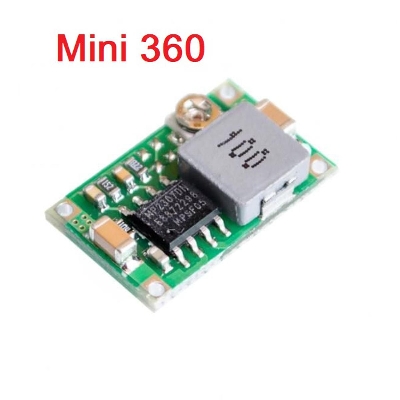

Picture of Mini-360 DC DC Step Down Mini 360 BUCK Converter Adjustable Module 4.75V-23V To 1V-17V 1.8A Power Supply Buck Adapters Module Ultra Small For Arduino
Picture of Mini-360 DC DC Step Down Mini 360 BUCK Converter Adjustable Module 4.75V-23V To 1V-17V 1.8A Power Supply Buck Adapters Module Ultra Small For Arduino

Mini-360 DC DC Step Down Mini 360 BUCK Converter Adjustable Module 4.75V-23V To 1V-17V 1.8A Power Supply Buck Adapters Module Ultra Small For Arduino

Category: Building Materials
SKU: UDBD04429
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 66
Tk 78
Tk 78
15% OFF
0 review(s)
  • MPS MP2307DN buck regulator IC
  • 4.75 – 23VDC input voltage
  • 1.0 – 17VDC selectable output voltage
  • 3A surge current, 1.8A continuous rated current
  • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)0kHz switching frequency
  • 30mV no-load output ripple
  • 0.5% load regulation
  • 2.5% voltage regulation
  • -40 to +85°C operational temperature range
  • Built-in 160°C thermal shutdown
  • 17x11x3.8mm

Call For Order : 09613-800800

Description: Mini-360 DC DC Step Down Module

One of our engineers came by and showed off one of his latest finds, theDC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation!

Specifications:

  • MPS MP2307DN buck regulator IC
  • 4.75 – 23VDC input voltage
  • 1.0 – 17VDC selectable output voltage
  • 3A surge current, 1.8A continuous rated current
  • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)0kHz switching frequency
  • 30mV no-load output ripple
  • 0.5% load regulation
  • 2.5% voltage regulation
  • -40 to +85°C operational temperature range
  • Built-in 160°C thermal shutdown
  • 17x11x3.8mm

Documents:

Package Includes

  • 1 x Mini-360 DC DC Step Down Module






  • MPS MP2307DN buck regulator IC
  • 4.75 – 23VDC input voltage
  • 1.0 – 17VDC selectable output voltage
  • 3A surge current, 1.8A continuous rated current
  • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)0kHz switching frequency
  • 30mV no-load output ripple
  • 0.5% load regulation
  • 2.5% voltage regulation
  • -40 to +85°C operational temperature range
  • Built-in 160°C thermal shutdown
  • 17x11x3.8mm
